TILTRX Garage Door Sentry External Photos - FCC ID ELGTILTRX
FCC ID ELGTILTRX

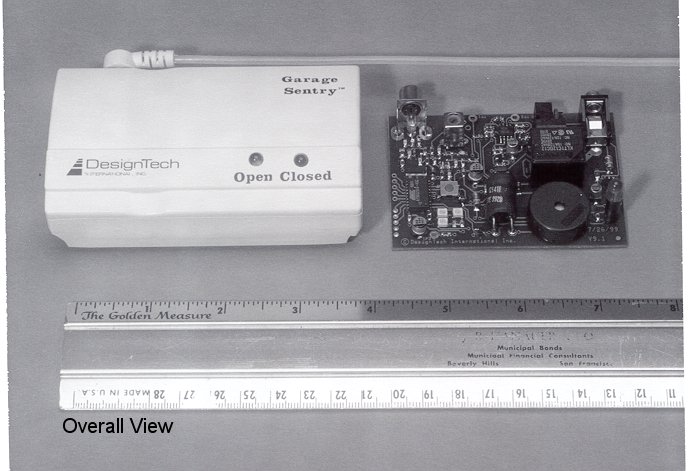

Overall View
Garage Door Sentry
Document Details
| FCC ID | ELGTILTRX |
|---|---|
| Document ID | 66583 |
| Document Type | External Photos |
| Description | Overall View |
| Applicant | DesignTech International Inc |
| Equipment Class | Garage Door Sentry |
| Product Code | TILTRX |
| Application ID | I02BT0z4mEkYb6UGF+kB6w== |
| Application Purpose | Original Equipment |
| Application Date | 1999-11-12 |
| Frequency Range | 311.5-312.5 MHz |
| FRN | 0003786449 |
| Test Firm | Hyak Laboratories, Inc. |
| Certified By | Rowland S. Johnson President |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 1999-10-26 |
| Available | 1999-11-12 |
| Pages | 0 |
| File Type | JPEG Image |
| File Size | 61269 |
| File SHA-256 | 5f23595aa76e44ea69a0fc5a992bbd48ec051d832b6fb9727ab1e58ea7c3e635 |
| FCC.gov Sources | FCC.gov 66583 |
