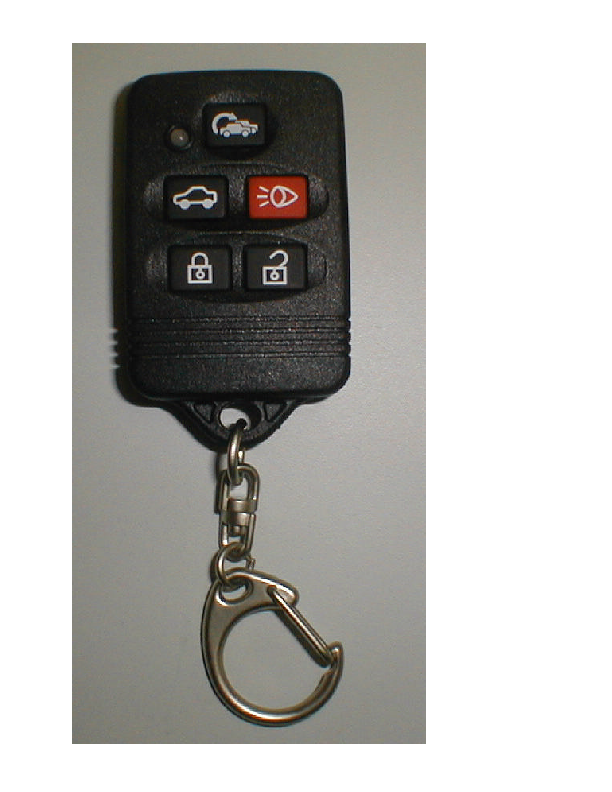

TX4B Security R/C Transmitter External Photos - FCC ID ELGTX4B

FCC ID ELGTX4B

external photos

Security R/C Transmitter

by DesignTech International Inc

Document preview loads when visible.

Document Details

FCC IDELGTX4B
Document ID220585
Document TypeExternal Photos
Descriptionexternal photos
Document TitleExternal Photos
ApplicantDesignTech International Inc
Equipment ClassSecurity R/C Transmitter
Product CodeTX4B
Application ID8p+7NENk5p3fm0QMGMA7cw==
Application PurposeOriginal Equipment
Application Date2002-01-14
Frequency Range311.5-312.5 MHz
FRN0003786449
Test FirmCarl T. Jones Corporation
Certified ByMark Gottlieb
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2002-01-15
Available2002-01-14
Created2001-12-21
Modified2001-12-21
Pages4
File TypeAdobe Acrobat PDF
File Size404325
File SHA-256f8422167200ef8a175a84e8dd77b35b305b56cfcefb9eda6255b73d5fbd605c8
PDF Metadata ProducerExternal Photos.doc - Microsoft Word Acrobat PDFWriter 4.05 for Windows
FCC.gov SourcesFCC.gov 220585
