10305 350MHz Gas Fireplace Remote Transmitter... - FCC ID EPK10305

FCC ID EPK10305

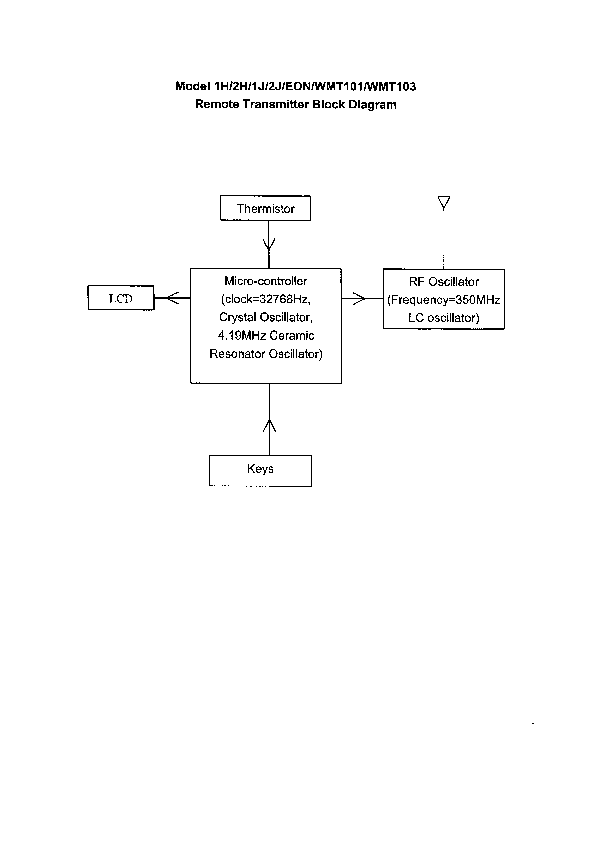

Block Diagram

350MHz Gas Fireplace Remote Transmitter

by Acumen Technologies Ltd

Document preview loads when visible.

Document Details

FCC IDEPK10305
Document ID548158
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantAcumen Technologies Ltd
Equipment Class350MHz Gas Fireplace Remote Transmitter
Product Code10305
Application IDBlPZaQ7wU+vgnSEXO5uzTw==
Application PurposeOriginal Equipment
Application Date2005-06-03
Frequency Range350 MHz
FRN0003786449
Test FirmIntertek Testing Services Hong Kong
Certified ByDerek Leung Assistant Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2005-06-03
Available2005-06-03
Created2005-02-23
Modified2005-02-23
Pages1
File TypeAdobe Acrobat PDF
File Size10522
File SHA-256f92017b4a239a51dbb855760a3aa0f7c066d51592f2ade08bd4efc1edb83c28c
PDF Metadata AuthorBEN HO
PDF Metadata ProducerHP 9100C Digital Sender
FCC.gov SourcesFCC.gov 548158
