FCC ID EROCWD7545
Two-Way RF Transceiver Module
by Crestron Electronics Inc
Grantee Code: ERO Product Code: CWD7545
Latest application date: 2017-04-17
Device Images
FCC ID Device Details
| FCC ID | EROCWD7545 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | ERO |
| Product Code | CWD7545 |
| Applicant Business | Crestron Electronics Inc 🇺🇸 |
| Related Domains |  crestron.com  sgs.com |
| Equipment Class | Two-Way RF Transceiver Module |
| Test Firm | SGS North America, Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2405-2480 MHz | Original Equipment | 2017-04-17 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2017-04-17 | PDF 365.1 KB |
| Internal photos | Internal Photos | 2017-04-17 | PDF 290.5 KB |
| External photos | External Photos | 2017-04-17 | PDF 419 KB |
| Label | ID Label/Location Info | 2017-04-17 | PDF 413.3 KB |
| Label Location | ID Label/Location Info | 2017-04-17 | PDF 301.3 KB |

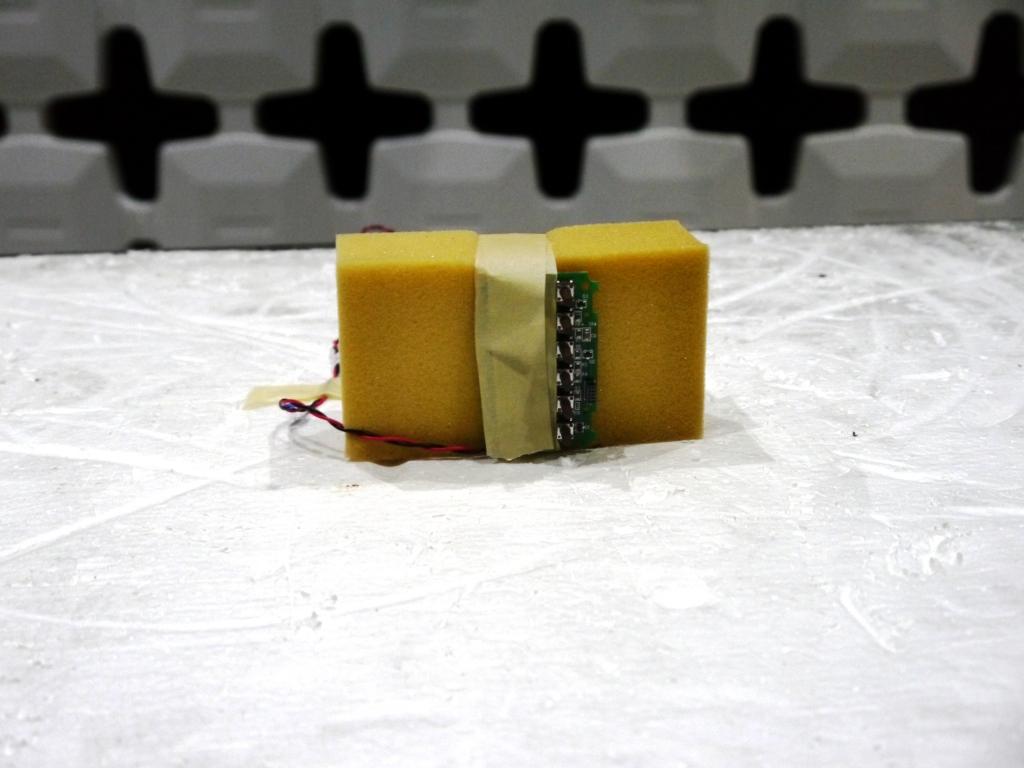

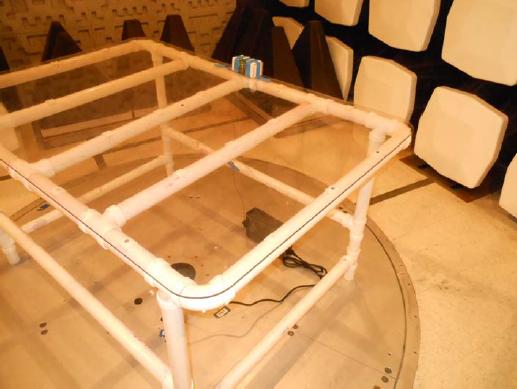

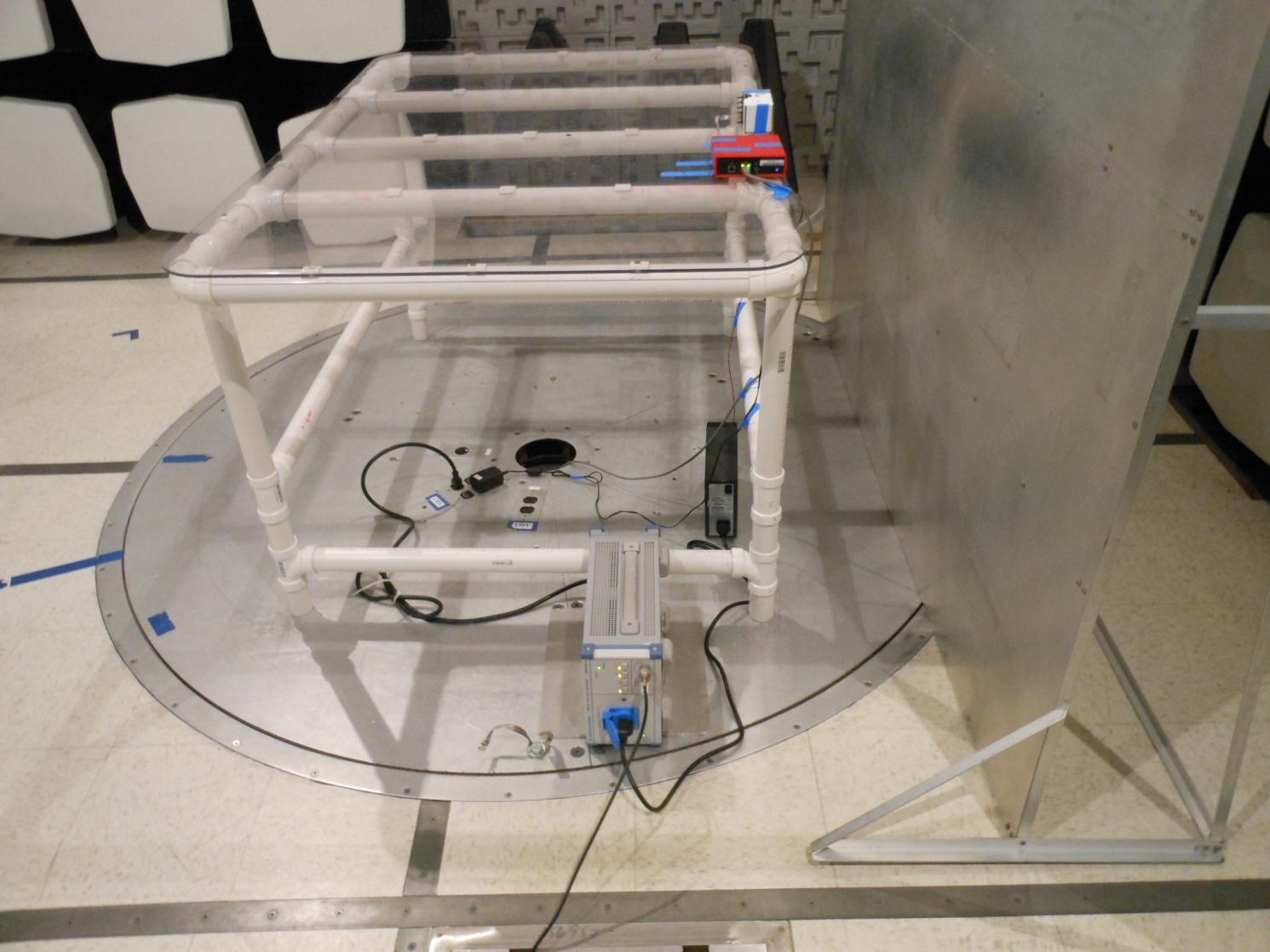

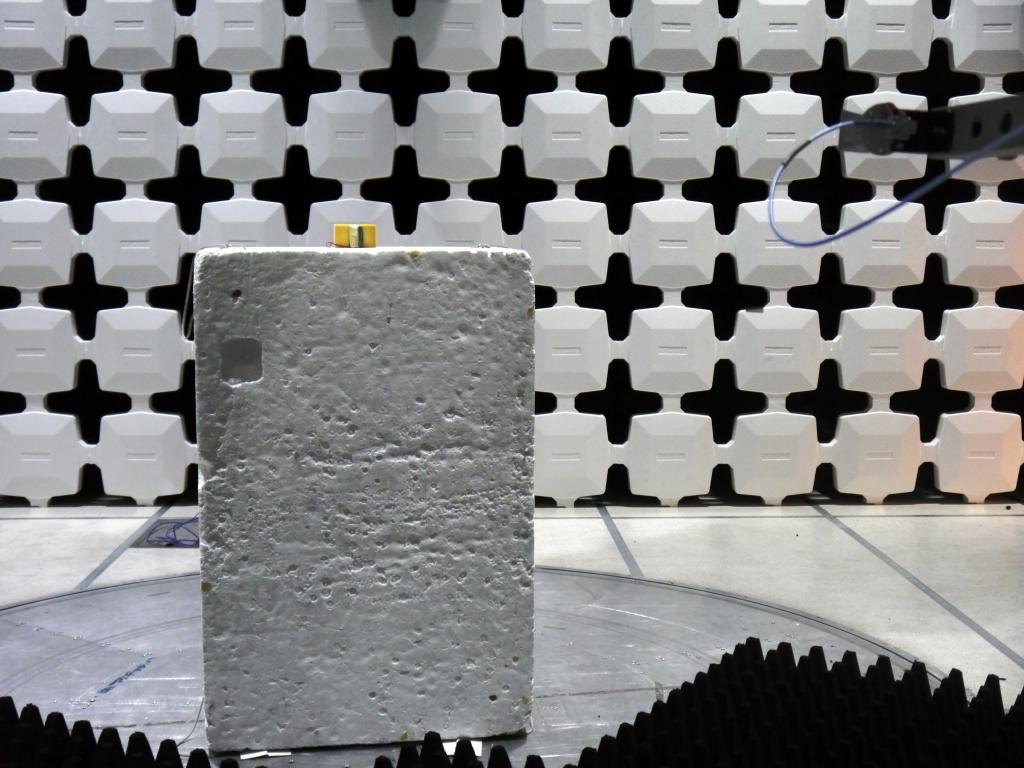

| Set up photos | Test Setup Photos | 2017-04-17 | PDF 643.9 KB |
| Test Report | Test Report | 2017-04-17 | PDF 1.7 MB |
| Agent Authorization | Cover Letter(s) | 2017-04-17 | PDF 81.7 KB |
| Confidentiality Letter | Cover Letter(s) | 2017-04-17 | PDF 82.5 KB |
| Modular Approval Letter | Cover Letter(s) | 2017-04-17 | PDF 21.2 KB |
| RF Exposure | RF Exposure Info | 2017-04-17 | PDF 43 KB |
| Block Diagram Metadata only | Block Diagram | PDF 33.5 KB | |
| Schematics Metadata only | Schematics | PDF 395.9 KB | |
| Operational Description Metadata only | Operational Description | PDF 70.2 KB |
Application Information
| Application ID | pwGUow0liYs0f/8odMVjeg== |
|---|---|
| Final Action Date | 2017-04-17 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0005022819 |
| Model | CWD7545 |
| Frequency Range | 2405-2480 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Two-Way RF Transceiver Module |
| Responsible Party | William Wack, Sr. Compliance Engineer, wwack@crestron.com , 201-750-7004 |
| Agent | Jeremy Jeremy Jeremy, SGS North America, jeremy.pickens@sgs.com , 678-755-1800 |
| Technical Contact | Jeremy Pickens, SGS North America, jeremy.pickens@sgs.com , 678-775-1800 |
| Non-Technical Contact | Jeremy Pickens, SGS North America, jeremy.pickens@sgs.com , 678-775-1800 |
| Test Firm | David Schramm, SGS North America, Inc., david.schramm@sgs.com , 973-461-7914 |
| TCB Email | uscts.tcb@sgs.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | Yes |
| Short-Term Confidentiality Date | 10/13/2017 |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power Output listed is conducted. Single Modular Approval. This device is to be used only for mobile and fixed application. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter evaluation procedures as documented in this filing. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. OEM integrators must insure that the end user has no manual instructions to remove or install this module. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| pwGUow0liYs0f/8odMVjeg== | 2017-04-17 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules |
|---|---|---|
| 2405-2480 MHz | 0.1350000 | 15C |
Grants
TCB Grant - Application pwGUow0liYs0f/8odMVjeg==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
SGS North America, Inc. 620 Old Peachtree Road NW Suite 100 Suwanee, GA 30024 |
Date of Grant: 04/17/2017 Application Dated: 04/17/2017 |
| Crestron Electronics Inc |
| 15 Volvo Drive |
| Rockleigh, NJ 07647 |
| Attention: William Wack , Sr. Compliance Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | EROCWD7545 |
| Name of Grantee: | Crestron Electronics Inc |
| Equipment Class: | Digital Transmission System |
| Notes: | Two-Way RF Transceiver Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2405.0 - 2480.0 | 0.135 |
| Power Output listed is conducted. Single Modular Approval. This device is to be used only for mobile and fixed application. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter evaluation procedures as documented in this filing. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. OEM integrators must insure that the end user has no manual instructions to remove or install this module. |
EAS Grant - Application pwGUow0liYs0f/8odMVjeg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Crestron Electronics Inc 15 Volvo Drive Rockleigh, NJ 07647 United States |
Date of Grant: 04/17/2017 Application Dated: 04/17/2017 |
| Attention: William Wack , Sr. Compliance Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | EROCWD7545 |
| Name of Grantee: | Crestron Electronics Inc |
| Equipment Class: | Digital Transmission System |
| Notes: | Two-Way RF Transceiver Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2405.0 - 2480.0 | 0.135 |
| Power Output listed is conducted. Single Modular Approval. This device is to be used only for mobile and fixed application. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter evaluation procedures as documented in this filing. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. OEM integrators must insure that the end user has no manual instructions to remove or install this module. |
