04077 Wireless (RF) Point Transmitter jpeg - FCC ID ESV-0407-7
FCC ID ESV-0407-7

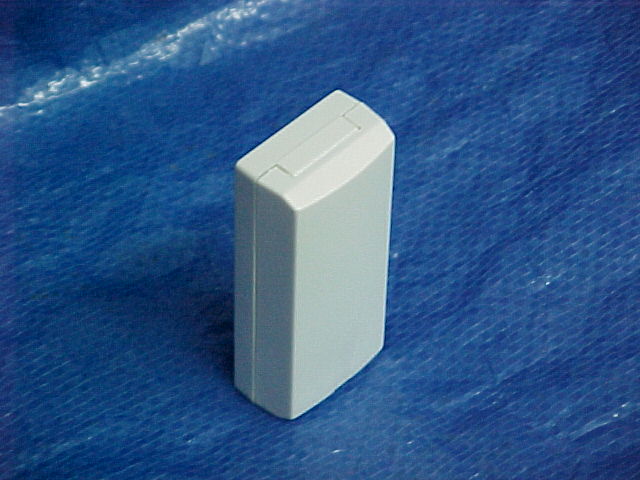

Exhibit C External Photographs per 2 1033 b7
Wireless (RF) Point Transmitter
Document Details
| FCC ID | ESV-0407-7 |
|---|---|
| Document ID | 283447 |
| Document Type | jpeg |
| Description | Exhibit C External Photographs per 2 1033 b7 |
| Applicant | Bosch Security Systems Inc |
| Equipment Class | Wireless (RF) Point Transmitter |
| Product Code | 04077 |
| Application ID | cDXeFaeA9rpLz4dqwUh6XQ== |
| Application Purpose | Original Equipment |
| Application Date | 2002-11-13 |
| Frequency Range | 304.1 MHz |
| FRN | 0006167399 |
| Test Firm | Retlif Testing Laboratories |
| Certified By | Richard Reitz Laboratory Manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2002-11-14 |
| Available | 2002-11-13 |
| Pages | 0 |
| File Type | JPEG Image |
| File Size | 87801 |
| File SHA-256 | b4dad510ca3396d35fc57ecefd3e0db00dd03dcb445f67bdc2818bbd7e500da5 |
| FCC.gov Sources | FCC.gov 283447 |
