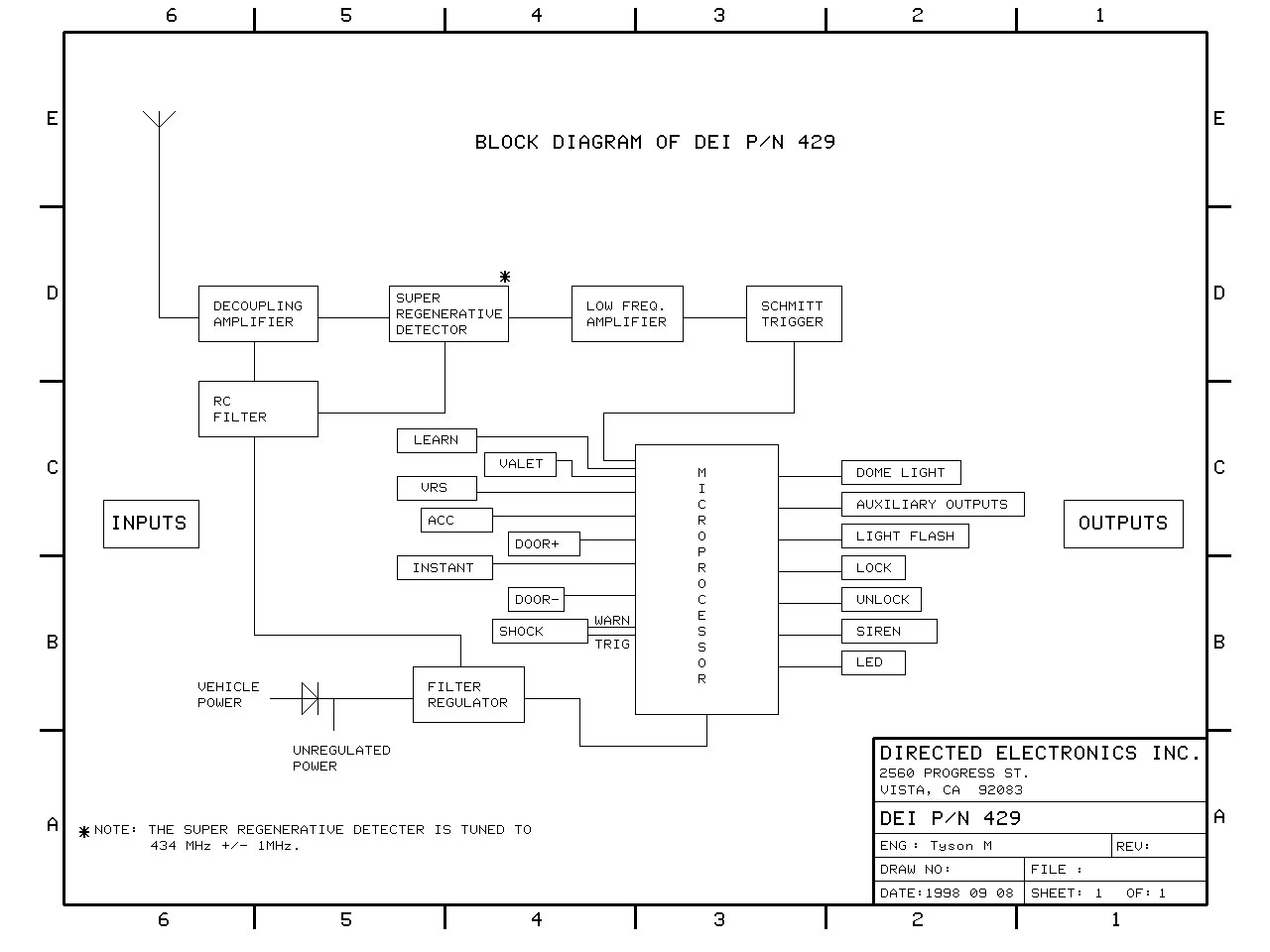

DEI429 Block Diagram - FCC ID EZSDEI429

FCC ID EZSDEI429

Block Diagram that was requested

DEI429

by Voxx Electronics Corporation

Block Diagram that was requested

Document Details

FCC IDEZSDEI429
Document ID6972
Document TypeBlock Diagram
DescriptionBlock Diagram that was requested
ApplicantVoxx Electronics Corporation
Equipment ClassDEI429
Product CodeDEI429
Application IDCksn3S0c4q1X4is1zvckkw==
Application PurposeOriginal Equipment
Application Date1998-10-07
Frequency Range434 MHz
FRN0006819940
Certified ByMartin Gonzalez Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted1998-09-14
Available1998-10-07
Pages0
File TypeJPEG Image
File Size139234
File SHA-2564fb38ade1420fb092827332946fbae548bca08031d34ca08765856e77d9215ff
FCC.gov SourcesFCC.gov 6972
