DEI473 Venom Remote Control Transmitter Block... - FCC ID EZSDEI473

FCC ID EZSDEI473

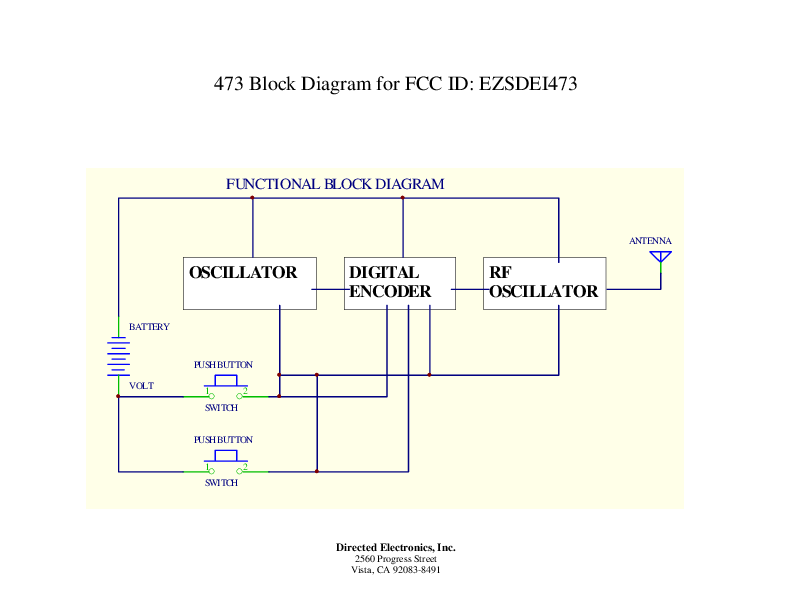

Block Diagram

Venom Remote Control Transmitter

by Voxx Electronics Corporation

Document preview loads when visible.

Document Details

FCC IDEZSDEI473
Document ID55825
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantVoxx Electronics Corporation
Equipment ClassVenom Remote Control Transmitter
Product CodeDEI473
Application IDjCyJPeyFmzVRJsUkwqesoA==
Application PurposeOriginal Equipment
Application Date1999-10-28
Frequency Range433.92 MHz
FRN0006819940
Test FirmTUV America
Certified ByTyson Mackjust Electronics Engineering Tech.
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted1999-08-23
Available1999-10-28
Created2001-06-01
Modified2001-06-01
Pages1
File TypeAdobe Acrobat PDF
File Size5248
File SHA-25604c7a52d939e9b06d34ff25df7abe92153eb8adbd5cb075de491d8c68955133d
PDF Metadata ProducerAcrobat Distiller 4.0 for Windows
FCC.gov SourcesFCC.gov 55825
