TBO TIRE PRESSURE MONITORING SYSTEM Schematics - FCC ID F2OTBO
FCC ID F2OTBO
PCB Layout
TIRE PRESSURE MONITORING SYSTEM
Document preview loads when visible.
Document Details
| FCC ID | F2OTBO |
|---|---|
| Document ID | 1663127 |
| Document Type | Schematics |

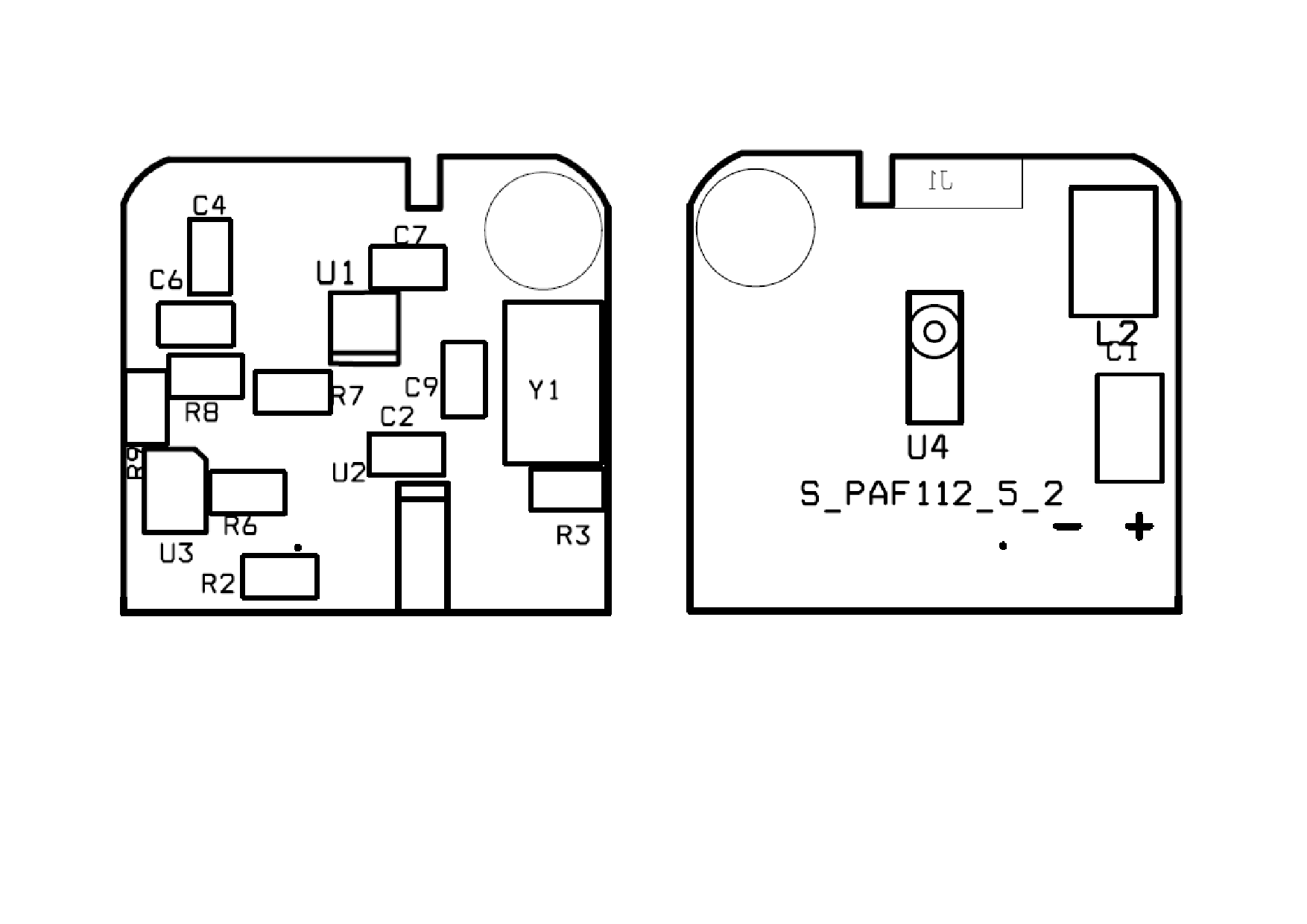

| Description | PCB Layout |
| Document Title | components placement |
| Applicant | Nae Woi Korea.,ltd |
| Equipment Class | TIRE PRESSURE MONITORING SYSTEM |
| Product Code | TBO |
| Application ID | vQTTZrOK1tjA4sJY139BPA== |
| Application Purpose | Original Equipment |
| Application Date | 2012-03-26 |
| Frequency Range | 433.92 MHz |
| FRN | 0021622865 |
| Test Firm | KES Co., Ltd |
| Certified By | Cheol Ho Yang CEO |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2012-03-26 |
| Available | 2012-03-26 |
| Created | 2012-03-22 |
| Modified | 2012-03-22 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 20341 |
| File SHA-256 | edffe6f8f429119feccec817e3e017270730ce8b19966e1020dff942d363b2aa |
| PDF Metadata Author | ThinkPad |
| PDF Metadata Creator | PScript5.dll Version 5.2 |
| PDF Metadata Producer | Acrobat Distiller 7.0 (Windows) |
| FCC.gov Sources | FCC.gov 1663127 |
