FCC ID F5316LT7090
Cellular communicator module
by Tyco Safety Products Canada Ltd.
Grantee Code: F53 Product Code: 16LT7090
Latest application date: 2016-08-12
Device Images
FCC ID Device Details
| FCC ID | F5316LT7090 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | F53 |
| Product Code | 16LT7090 |
| Applicant Business | Tyco Safety Products Canada Ltd. 🇨🇦 |
| Related Domains |  tycoint.com |
| Equipment Class | Cellular communicator module |
| Test Firm | DEKRA TESTING AND CERTIFICATION CO., LTD. LinKou |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 779.5-784.5 MHz | Original Equipment | 2016-08-12 |
Exhibits

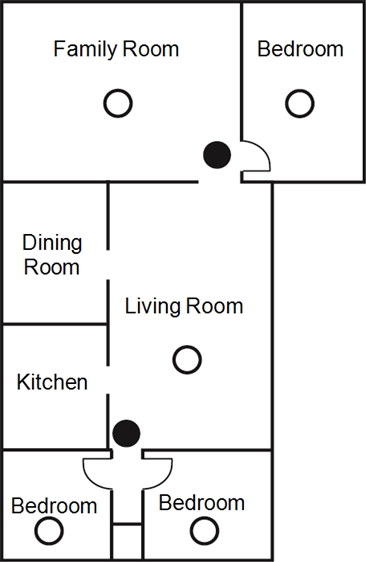

| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2016-08-12 | PDF 1.1 MB |
| Internal Photos | Internal Photos | 2016-08-12 | PDF 81.5 KB |
| External Photographs | External Photos | 2016-08-12 | PDF 129.5 KB |
| Label & Location | ID Label/Location Info | 2016-08-12 | PDF 1.1 MB |

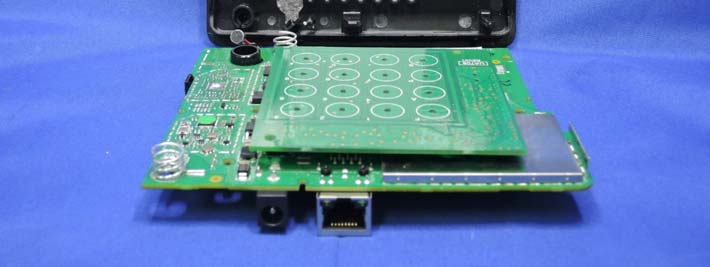

| Test setup photographs from wwan module | Test Setup Photos | 2016-08-12 | PDF 1.1 MB |
| Test setup photos | Test Setup Photos | 2016-08-12 | PDF 1.7 MB |
| Test report | Test Report | 2016-08-12 | PDF 192.3 KB |
| Test report from wwan module | Test Report | 2016-08-12 | PDF 3 MB |
| Agent Letter | Cover Letter(s) | 2016-08-12 | PDF 26.6 KB |
| Confidentiality Letter | Cover Letter(s) | 2016-08-12 | PDF 50.5 KB |
| Modular approval letter | Cover Letter(s) | 2016-08-12 | PDF 19.3 KB |
| RF exposure | RF Exposure Info | 2016-08-12 | PDF 59.4 KB |
| Block Diagram Metadata only | Block Diagram | PDF 196.9 KB | |
| Schematics Metadata only | Schematics | PDF 862.7 KB | |
| Antenna specifications 1 Metadata only | Operational Description | PDF 138 KB | |
| Antenna specifications 2 Metadata only | Operational Description | PDF 136.3 KB | |
| Theory of operation Metadata only | Operational Description | PDF 793.3 KB | |
| Bill of materials from wwan module Metadata only | Parts List/Tune Up Info | PDF 34.4 KB |
Application Information
| Application ID | RdTNd1QWXZIL7gSuzIyJVg== |
|---|---|
| Final Action Date | 2016-08-12 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0006834485 |
| Model | 16LT7090 |
| Frequency Range | 779.5-784.5 MHz |
| Equipment Class | TNB - Licensed Non-Broadcast Station Transmitter |
| Device Description | Cellular communicator module |
| Responsible Party | Dan Nita, Approvals Manager, dnita@tycoint.com , 1-647-480-0430 |
| Agent | Lidia Lidia Lidia, AT4 Wireless, lvega@at4wireless.com  , 0034952619355 |
| Test Firm | Mirenda Liao, DEKRA TESTING AND CERTIFICATION CO., LTD. LinKou, mirenda.liao@dekra.com  , +886-2-2602-7968 |
| TCB Email | rcb.admin@at4wireless.com |
| TCB Scope | B1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27 |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Single Limited Modular Approval limited to the host WS900. Antenna integrated. Power output listed is ERP for Band 13 and EIRP for Band 4. This device is approved for mobile and fixed use with respect to RF exposure compliance. The antenna of this transmitter must provide a separation distance of at least 20 cm from all persons. Installers and end-users must be provided with operating conditions for satisfying RF exposure compliance. Compliance of this device in all final product configurations is the responsibility of the Grantee. Installation of this device into specific final products may require the submission of a Class II permissive change application containing data pertinent to RF Exposure, spurious emissions and host/module authentication, or new application if appropriate. The antenna(s) used for this transmitter must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except as described in this filling and in accordance with FCC multi-transmitter product procedures. |
