81449 49 MHz Wireless R/C Car TX Test Setup Photos - FCC ID F5J81449
FCC ID F5J81449

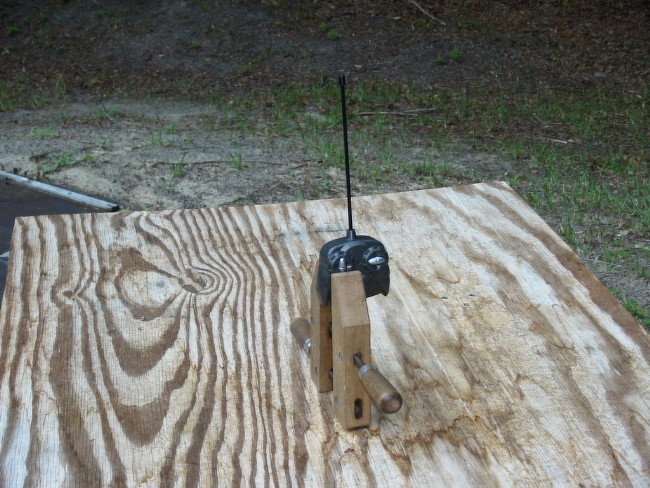

test setup photos
49 MHz Wireless R/C Car TX
Document Details
| FCC ID | F5J81449 |
|---|---|
| Document ID | 252591 |
| Document Type | Test Setup Photos |
| Description | test setup photos |
| Applicant | Ka Wah Manufactory Limited |
| Equipment Class | 49 MHz Wireless R/C Car TX |
| Product Code | 81449 |
| Application ID | Bn5WMx1ru0dwsgJxF0juAg== |
| Application Purpose | Original Equipment |
| Application Date | 2002-06-25 |
| Frequency Range | 49.82-49.9 MHz |
| FRN | 0007230360 |
| Test Firm | Timco Engineering, Inc. |
| Certified By | Benjamin Lai General Manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2002-06-26 |
| Available | 2002-06-25 |
| Pages | 0 |
| File Type | JPEG Image |
| File Size | 119151 |
| File SHA-256 | 1496a4e813bc9381a78377f7601b4c5fe52e41e2ffae8fe26bf1b5ac3b597c0e |
| FCC.gov Sources | FCC.gov 252591 |
