7EWDXSERIES Passive Infrared and... - FCC ID FA77EWDXSERIES

FCC ID FA77EWDXSERIES

oper desc

Passive Infrared and Microwave Combination Detecto

by Optex Incorporated

Document preview loads when visible.

Document Details

FCC IDFA77EWDXSERIES
Document ID97535
Document TypeOperational Description

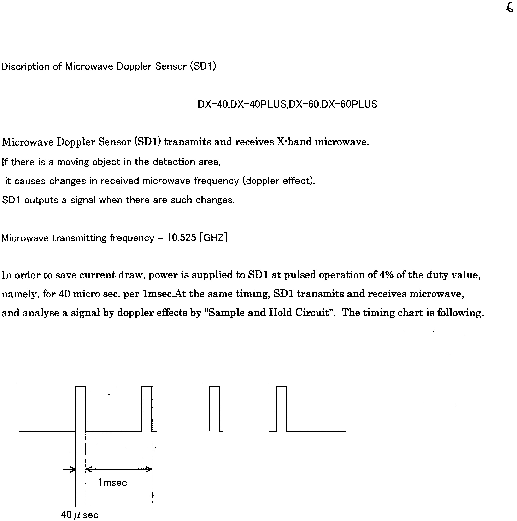

Descriptionoper desc
ApplicantOptex Incorporated
Equipment ClassPassive Infrared and Microwave Combination Detecto
Product Code7EWDXSERIES
Application ID7j//VPFTRaeMWkQ37gpA+w==
Application PurposeOriginal Equipment
Application Date2000-05-24
Frequency Range10525 MHz
FRN9999999999
Certified ByThomas J. Scheider EMC Test Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2000-04-24
Available2000-05-24
Pages1
File TypeAdobe Acrobat PDF
File Size486388
File SHA-256080d9ac7534ef8844c8760988e7ddbaaae9242fa4d8dfd887e0bc6acb302a651
PDF Metadata ProducerAdobe Photoshop 4.0 Adobe Photoshop for Windows
FCC.gov SourcesFCC.gov 97535
