5833060801 QuickSave MiniTerm Block... - FCC ID FBX-5833-0608-01

FCC ID FBX-5833-0608-01

Block Diagram

QuickSave MiniTerm

by Datacomp Electronics Co Ltd

Document preview loads when visible.

Document Details

FCC IDFBX-5833-0608-01
Document ID712658
Document TypeBlock Diagram
DescriptionBlock Diagram

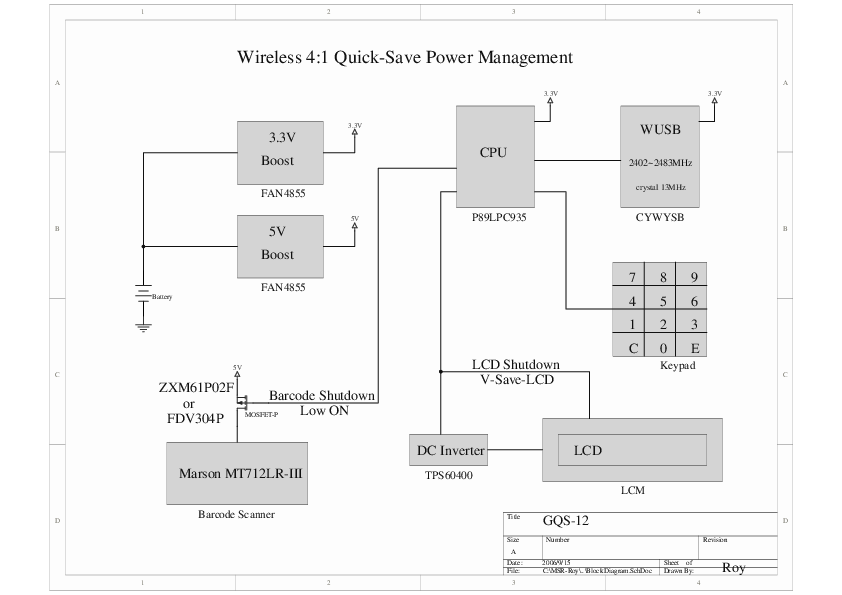

Document TitleSchematic Prints
ApplicantDatacomp Electronics Co Ltd
Equipment ClassQuickSave MiniTerm
Product Code5833060801
Application IDEaQpT1VbAdY459OBmv9kNw==
Application PurposeOriginal Equipment
Application Date2006-10-06
Frequency Range2402-2480 MHz
FRN0010819019
Test FirmSGS TAIWAN LTD.
Certified ByMichael Jeng
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2006-10-05
Available2006-10-06
Created2006-09-15
Modified2006-09-15
Pages1
File TypeAdobe Acrobat PDF
File Size4829
File SHA-256c2b75d903aa33614d75f37ceef3c2dccbf4e3209e0b75aa99cd43524f7321f48
PDF Metadata AuthorHP_Owner
PDF Metadata ProducerAFPL Ghostscript 8.50 PDFCreator Version 0.8.1
FCC.gov SourcesFCC.gov 712658
