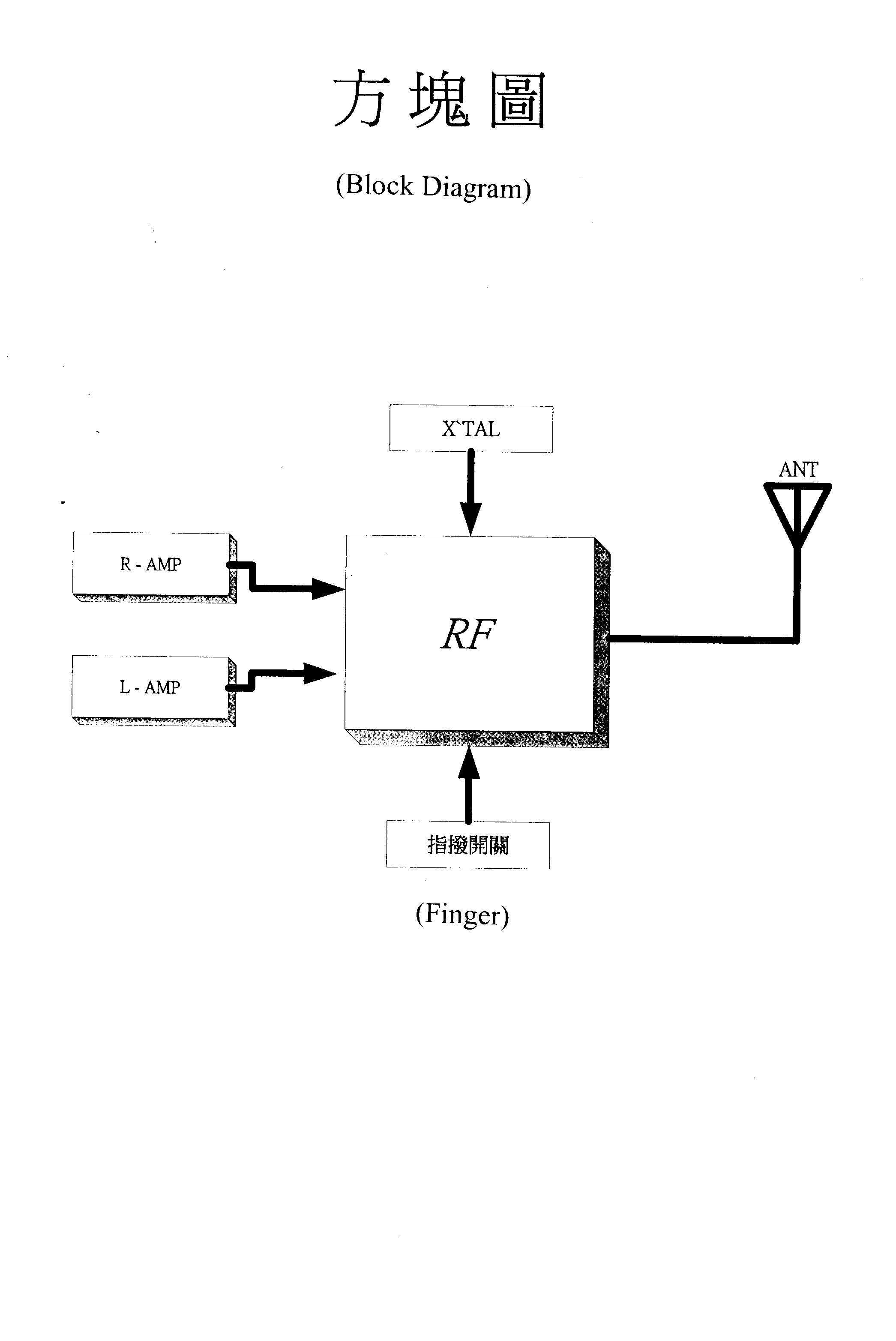

block diagram
Wireless Audio Link
by SIIG Inc
Document Details
| FCC ID | FK3USBCE071001 |
|---|---|
| Document ID | 289498 |
| Document Type | Block Diagram |
| Description | block diagram |
| Applicant | SIIG Inc |
| Equipment Class | Wireless Audio Link |
| Product Code | USBCE071001 |
| Application ID | Z5oYfT4NMBmg+WinP10dwA== |
| Application Purpose | Original Equipment |
| Application Date | 2002-12-12 |
| Frequency Range | 88.1-89.1 MHz |
| FRN | 0007942196 |
| Test Firm | SGS Taiwan Ltd. |
| Certified By | Andrew Gong Product Manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2002-12-12 |
| Available | 2002-12-12 |
| Pages | 0 |
| File Type | JPEG Image |
| File Size | 159383 |
| File SHA-256 | 84f2bf0b5bd4d803df3632d8e8a9e4d79a7cb710cf23c685d1df5711df901856 |
| FCC.gov Sources | FCC.gov 289498 |
