FCC ID FRWRT7000PMR

Panel Mounted Tactical Radio, Aviation and Land-Based

by Wulfsberg Electronics Division

Grantee Code: FRW Product Code: RT7000PMR

Latest application date: 2017-03-29

Device Images

FCC ID FRWRT7000PMR External Photos — External Photos

FCC ID FRWRT7000PMR Internal Photos — Internal Photos

FCC ID FRWRT7000PMR ID Label Location Info — ID Label Location Info

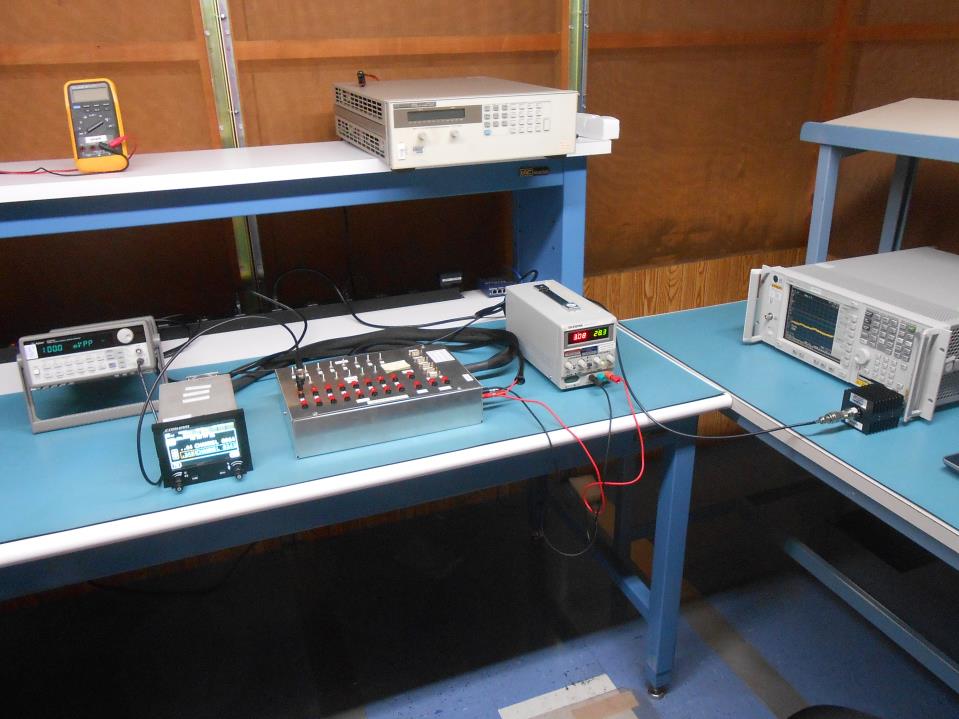

FCC ID FRWRT7000PMR Test Setup Photos — Test Setup Photos

FCC ID Device Details

FCC ID	FRWRT7000PMR
Mirrors	fcc.id \| gov \| fccid.ai
Grantee Code	FRW
Product Code	RT7000PMR
Applicant Business	Wulfsberg Electronics Division 🇺🇸
Related Domains	cobham.com
Equipment Class	Panel Mounted Tactical Radio, Aviation and Land-Based
Test Firm	Compliance Testing, LLC

Linked Records

Barcode records decoded from published FCC label exhibits or linked by an explicit FCC ID reference on a product page.

UPC / GTIN	Linked product
230007030001 UPC-A · GTIN-14 00230007030001	Panel Mounted Tactical Radio, Aviation and Land-Based Brand: Wulfsberg Electronics Division · Model: RT7000PMR Source: FCC label
330007170001 UPC-A · GTIN-14 00330007170001	Panel Mounted Tactical Radio, Aviation and Land-Based Brand: Wulfsberg Electronics Division · Model: RT7000PMR Source: FCC label

Operating Frequencies

Frequency Range	Application Purpose	Final Action Date
29.7-88 MHz	Original Equipment	2017-03-29

Exhibits

Document	Type	Available	File
User Manual	Users Manual	2017-03-29	PDF 1.4 MB
Board Internal Photos	Internal Photos	2017-03-29	PDF 577.3 KB
WB Transceiver Internal Photos	Internal Photos	2017-03-29	PDF 646.5 KB
External Photos	External Photos	2017-03-29	PDF 384.9 KB
Label	ID Label/Location Info	2017-03-29	PDF 504.6 KB
Label Location	ID Label/Location Info	2017-03-29	PDF 1.1 MB
Test Setup Photos	Test Setup Photos	2017-03-29	PDF 379.9 KB
Annex A_Part 22/80/90	Test Report	2017-03-29	PDF 1.1 MB
Annex B_Part 22/80/90	Test Report	2017-03-29	PDF 2 MB
Annex C_Part 22/80/90	Test Report	2017-03-29	PDF 2.8 MB
Annex D_Part 22/80/90	Test Report	2017-03-29	PDF 342 KB
Annex E_Part 22/80/90	Test Report	2017-03-29	PDF 156.2 KB
FCC Part 22/80/90 Test Report	Test Report	2017-03-29	PDF 2.7 MB
Attestation Letter	Cover Letter(s)	2017-03-29	PDF 135.2 KB
Agent Authorization Letter	Cover Letter(s)	2017-03-29	PDF 129 KB
FAA Coordination Letter	Cover Letter(s)	2017-03-29	PDF 214.7 KB
Federal Use Letter	Cover Letter(s)	2017-03-29	PDF 203.4 KB
Long Term Confidentiality Request	Cover Letter(s)	2017-03-29	PDF 205.3 KB
Part Number Combination	Cover Letter(s)	2017-03-29	PDF 206.7 KB
152-070250.B_Schematics Metadata only	Schematics		PDF 1 MB
152-070350_Schematics Metadata only	Schematics		PDF 957 KB
152-070650.A_Schematics Metadata only	Schematics		PDF 2 MB
152-070850.B_Schematics Metadata only	Schematics		PDF 1 MB
152-070950.E_Schematics Metadata only	Schematics		PDF 390.9 KB
152-071007.A_Schematics Metadata only	Schematics		PDF 269.2 KB
152-071750.B_Schematics Metadata only	Schematics		PDF 599.7 KB
Theory of Operation Metadata only	Operational Description		PDF 568.3 KB
300-070250-01PL.D_Parts List Metadata only	Parts List/Tune Up Info		PDF 1,020.7 KB
300-070350-01PL.D_Parts List Metadata only	Parts List/Tune Up Info		PDF 349 KB
300-070600-01PL.A_Parts List Metadata only	Parts List/Tune Up Info		PDF 214.2 KB
300-070650-01PL.A_Parts List Metadata only	Parts List/Tune Up Info		PDF 239.4 KB
300-070850-01PL.C_Parts List Metadata only	Parts List/Tune Up Info		PDF 201.1 KB
300-070925-01PL.A_Parts List Metadata only	Parts List/Tune Up Info		PDF 205.5 KB
300-070926-01PL.A_Parts List Metadata only	Parts List/Tune Up Info		PDF 417.6 KB
300-070950-01PL.F_Parts List Metadata only	Parts List/Tune Up Info		PDF 230.8 KB
300-071007-01PL.A_Parts List Metadata only	Parts List/Tune Up Info		PDF 272.6 KB
300-071514-01PL._Parts List Metadata only	Parts List/Tune Up Info		PDF 330.8 KB
300-071700-01PL._Parts List Metadata only	Parts List/Tune Up Info		PDF 231.5 KB
300-071750-01PL.B_Parts List Metadata only	Parts List/Tune Up Info		PDF 216 KB
300-471588-01PL._Parts List Metadata only	Parts List/Tune Up Info		PDF 229.8 KB
Tune-Up Procedure Metadata only	Parts List/Tune Up Info		PDF 676.5 KB

Application Information

Application ID	vDJSJC+VC4oN2ioV/1pUtA==
Final Action Date	2017-03-29
Application Purpose	Original Equipment
Applicant FRN	0015514268
Model	RT7000PMR
Frequency Range	29.7-88 MHz
Equipment Class	TNB - Licensed Non-Broadcast Station Transmitter
Device Description	Panel Mounted Tactical Radio, Aviation and Land-Based
Responsible Party	James F Buehring, Certification Manager, jim.buehring@cobham.com , 928-708-1527
Agent	Amanda Amanda Amanda, Compliance Testing, LLC, 480-926-3100
Test Firm	Michael Schafer, Compliance Testing, LLC, michaels@compliancetesting.com , 480-926-3100
TCB Email	amandar@compliancetesting.com
TCB Scope	B2: General Mobile Radio And Broadcast Services equipment in the following 47 CFR Parts 22 (non-cellular) 73, 74, 90, 95, 97, & 101 (all below 3 GHz)
Short-Term Confidentiality	No
Long-Term Confidentiality	Yes
Grant Deferral	No
Modular Equipment	Does not apply
Composite Device	Yes
Composite Part	No
Cognitive Radio	No
Authorization Waiver	No
Authorization Waiver Approved	No
Section 5301 Certification	Yes
Related OET Knowledge DataBase Inquiry	No
Grant Comments	Power listed is conducted. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of Section 1.1307(b)(3).

Applications

Application ID	Date	Purpose
vDJSJC+VC4oN2ioV/1pUtA==	2017-03-29	Original Equipment

Equipment Authorization

Frequency	Output	Tolerance	Emission	Rules	Grant Notes
75.4-88 MHz	11.1	5ppm	8K10F1E	22
75.4-88 MHz	11.1	5ppm	8K10F1W	22
75.4-88 MHz	11.1	5ppm	16K0F3E	22
118.05 MHz	11.3	20ppm	6K00A3E	87
127.5 MHz	10.8	20ppm	6K00A3E	87
136-149.05 MHz	11.9	5ppm	16K0F3E	9	EF
136.95 MHz	9.9	20ppm	6K00A3E	87
151.05-174 MHz	11.2	2ppm	8K10F1E	9
151.05-174 MHz	11.2	2ppm	8K10F1W	9
151.05-174 MHz	11.2	2ppm	11K0F3E	9
156.3 MHz	9.55	20ppm	16K0F3E	87
157.425 MHz	10.4	20ppm	16K0F3E	87
161.775 MHz	9.8	2.5ppm	8K10F1E	8
161.775 MHz	9.8	2.5ppm	8K10F1W	8
161.775 MHz	9.8	2.5ppm	11K0F3E	8
380-520 MHz	11.2	2.5ppm	8K10F1E	9	EF
380-520 MHz	11.2	2.5ppm	8K10F1W	9	EF
380-520 MHz	11.2	2.5ppm	11K0F3E	9	EF
470-520 MHz	9.84	2.5ppm	16K0F3E	9	EF
763-775 MHz	8.67	1.5ppm	8K10F1E	9
763-775 MHz	8.67	1.5ppm	8K10F1W	9
763-775 MHz	8.67	1.5ppm	16K0F3E	9
793-805 MHz	11.1	1.5ppm	8K10F1E	9
793-805 MHz	11.1	1.5ppm	8K10F1W	9
793-805 MHz	11.1	1.5ppm	16K0F3E	9
806-849 MHz	10.6	1.5ppm	8K10F1E	9
806-849 MHz	10.6	1.5ppm	8K10F1W	9
806-849 MHz	10.6	1.5ppm	16K0F3E	9
809-851 MHz	9.48	2.5ppm	8K10F1E	22
809-851 MHz	9.48	2.5ppm	8K10F1W	22
809-851 MHz	9.48	2.5ppm	16K0F3E	22
851-870 MHz	11.6	2.5ppm	8K10F1E	22
851-870 MHz	11.6	2.5ppm	8K10F1W	22
851-870 MHz	11.6	2.5ppm	16K0F3E	22
851-894 MHz	12	1.5ppm	8K10F1E	9
851-894 MHz	12	1.5ppm	8K10F1W	9
851-894 MHz	12	1.5ppm	16K0F3E	9
854-896 MHz	12	2.5ppm	8K10F1E	22
854-896 MHz	12	2.5ppm	8K10F1W	22
854-896 MHz	12	2.5ppm	16K0F3E	22
896-901 MHz	9.64	1.5ppm	8K10F1E	9
896-901 MHz	9.64	1.5ppm	8K10F1W	9
896-901 MHz	9.64	1.5ppm	16K0F3E	9
902-930 MHz	10.5	2.5ppm	8K10F1E	9
902-930 MHz	10.5	2.5ppm	8K10F1W	9
902-930 MHz	10.5	2.5ppm	16K0F3E	9
928-929 MHz	10.5	5ppm	8K10F1E	22
928-929 MHz	10.5	5ppm	8K10F1W	22
928-929 MHz	10.5	5ppm	16K0F3E	22
931-935 MHz	10.2	1.5ppm	8K10F1E	22
931-935 MHz	10.2	1.5ppm	8K10F1W	22
931-935 MHz	10.2	1.5ppm	16K0F3E	22
935-940 MHz	10.5	1.5ppm	8K10F1E	9
935-940 MHz	10.5	1.5ppm	8K10F1W	9
935-940 MHz	10.5	1.5ppm	16K0F3E	9
941-960 MHz	9.8	1.5ppm	8K10F1E	22
941-960 MHz	9.8	1.5ppm	8K10F1W	22
941-960 MHz	9.8	1.5ppm	16K0F3E	22

Grants

TCB Grant - Application vDJSJC+VC4oN2ioV/1pUtA==

TCB	GRANT OF EQUIPMENT AUTHORIZATION	TCB
Certification
Issued Under the Authority of the
Federal Communications Commission
By:

Compliance Testing, LLC
1724 S. Nevada Way
Mesa, AZ 85204

Date of Grant: 03/29/2017

Application Dated: 03/24/2017

Wulfsberg Electronics Division

6400 Wilkinson Drive

Prescott, AZ 86301

Attention: James Buehring , Certification Manager

NOT TRANSFERABLE

EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below.

FCC IDENTIFIER:	FRWRT7000PMR

Name of Grantee:	Wulfsberg Electronics Division

Equipment Class:	Licensed Non-Broadcast Station Transmitter
Notes:	Panel Mounted Tactical Radio, Aviation and Land-Based

Grant Notes	FCC Rule Parts	Frequency Range (MHZ)	Output Watts	Frequency Tolerance	Emission Designator
	90	29.7 - 88.0	11.6	20.0 PM	8K10F1E
	90	29.7 - 88.0	11.6	20.0 PM	8K10F1W
	90	29.7 - 88.0	11.6	20.0 PM	16K0F3E
	22	72.0 - 73.0	11.5	5.0 PM	8K10F1E
	22	72.0 - 73.0	11.5	5.0 PM	8K10F1W
	22	72.0 - 73.0	11.5	5.0 PM	16K0F3E
	22	75.4 - 88.0	11.1	5.0 PM	8K10F1E
	22	75.4 - 88.0	11.1	5.0 PM	8K10F1W
	22	75.4 - 88.0	11.1	5.0 PM	16K0F3E
	87	118.05 - 118.05	11.3	20.0 PM	6K00A3E
	87	127.5 - 127.5	10.8	20.0 PM	6K00A3E
	87	136.95 - 136.95	9.9	20.0 PM	6K00A3E
	87	156.3 - 156.3	9.55	20.0 PM	16K0F3E
	87	157.425 - 157.425	10.4	20.0 PM	16K0F3E
	80	161.775 - 161.775	9.8	2.5 PM	8K10F1E
	80	161.775 - 161.775	9.8	2.5 PM	8K10F1W
	80	161.775 - 161.775	9.8	2.5 PM	11K0F3E
EF	90	136.0 - 149.05	11.9	5.0 PM	16K0F3E
	90	151.05 - 174.0	11.2	2.0 PM	8K10F1E
	90	151.05 - 174.0	11.2	2.0 PM	8K10F1W
	90	151.05 - 174.0	11.2	2.0 PM	11K0F3E
EF	90	380.0 - 520.0	11.2	2.5 PM	8K10F1E
EF	90	380.0 - 520.0	11.2	2.5 PM	8K10F1W
EF	90	380.0 - 520.0	11.2	2.5 PM	11K0F3E
EF	90	470.0 - 520.0	9.84	2.5 PM	16K0F3E
	90	763.0 - 775.0	8.67	1.5 PM	8K10F1E
	90	763.0 - 775.0	8.67	1.5 PM	8K10F1W
	90	763.0 - 775.0	8.67	1.5 PM	16K0F3E
	90	793.0 - 805.0	11.1	1.5 PM	8K10F1E
	90	793.0 - 805.0	11.1	1.5 PM	8K10F1W
	90	793.0 - 805.0	11.1	1.5 PM	16K0F3E
	90	806.0 - 849.0	10.6	1.5 PM	8K10F1E
	90	806.0 - 849.0	10.6	1.5 PM	8K10F1W
	90	806.0 - 849.0	10.6	1.5 PM	16K0F3E
	22	809.0 - 851.0	9.48	2.5 PM	8K10F1E
	22	809.0 - 851.0	9.48	2.5 PM	8K10F1W
	22	809.0 - 851.0	9.48	2.5 PM	16K0F3E
	22	851.0 - 870.0	11.6	2.5 PM	8K10F1E
	22	851.0 - 870.0	11.6	2.5 PM	8K10F1W
	22	851.0 - 870.0	11.6	2.5 PM	16K0F3E
	90	851.0 - 894.0	12.0	1.5 PM	8K10F1E
	90	851.0 - 894.0	12.0	1.5 PM	8K10F1W
	90	851.0 - 894.0	12.0	1.5 PM	16K0F3E
	22	854.0 - 896.0	12.0	2.5 PM	8K10F1E
	22	854.0 - 896.0	12.0	2.5 PM	8K10F1W
	22	854.0 - 896.0	12.0	2.5 PM	16K0F3E
	90	896.0 - 901.0	9.64	1.5 PM	8K10F1E
	90	896.0 - 901.0	9.64	1.5 PM	8K10F1W
	90	896.0 - 901.0	9.64	1.5 PM	16K0F3E
	90	902.0 - 930.0	10.5	2.5 PM	8K10F1E
	90	902.0 - 930.0	10.5	2.5 PM	8K10F1W
	90	902.0 - 930.0	10.5	2.5 PM	16K0F3E
	22	928.0 - 929.0	10.5	5.0 PM	8K10F1E
	22	928.0 - 929.0	10.5	5.0 PM	8K10F1W
	22	928.0 - 929.0	10.5	5.0 PM	16K0F3E
	22	931.0 - 935.0	10.2	1.5 PM	8K10F1E
	22	931.0 - 935.0	10.2	1.5 PM	8K10F1W
	22	931.0 - 935.0	10.2	1.5 PM	16K0F3E
	90	935.0 - 940.0	10.5	1.5 PM	8K10F1E
	90	935.0 - 940.0	10.5	1.5 PM	8K10F1W
	90	935.0 - 940.0	10.5	1.5 PM	16K0F3E
	22	941.0 - 960.0	9.8	1.5 PM	8K10F1E
	22	941.0 - 960.0	9.8	1.5 PM	8K10F1W
	22	941.0 - 960.0	9.8	1.5 PM	16K0F3E

Power listed is conducted. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of Section 1.1307(b)(3).

EF:	This device may contain functions that are not operational in U.S Territories except as noted in the filing. This grant has extended frequencies as noted in the filing and Section 2.927(b) applies to this authorization.

EAS Grant - Application vDJSJC+VC4oN2ioV/1pUtA==

COPY	FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION	COPY
Certification

Wulfsberg Electronics Division
6400 Wilkinson Drive
Prescott, AZ 86301
United States

Date of Grant: 03/29/2017

Application Dated: 03/24/2017

Attention: James Buehring , Certification Manager

NOT TRANSFERABLE

EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below.

FCC IDENTIFIER:	FRWRT7000PMR

Name of Grantee:	Wulfsberg Electronics Division

Equipment Class:	Licensed Non-Broadcast Station Transmitter
Notes:	Panel Mounted Tactical Radio, Aviation and Land-Based
Modular Type:	Does not apply

Grant Notes	FCC Rule Parts	Frequency Range (MHZ)	Output Watts	Frequency Tolerance	Emission Designator
	90	29.7 - 88.0	11.6	20.0 PM	8K10F1E
	90	29.7 - 88.0	11.6	20.0 PM	8K10F1W
	90	29.7 - 88.0	11.6	20.0 PM	16K0F3E
	22	72.0 - 73.0	11.5	5.0 PM	8K10F1E
	22	72.0 - 73.0	11.5	5.0 PM	8K10F1W
	22	72.0 - 73.0	11.5	5.0 PM	16K0F3E
	22	75.4 - 88.0	11.1	5.0 PM	8K10F1E
	22	75.4 - 88.0	11.1	5.0 PM	8K10F1W
	22	75.4 - 88.0	11.1	5.0 PM	16K0F3E
	87	118.05 - 118.05	11.3	20.0 PM	6K00A3E
	87	127.5 - 127.5	10.8	20.0 PM	6K00A3E
	87	136.95 - 136.95	9.9	20.0 PM	6K00A3E
	87	156.3 - 156.3	9.55	20.0 PM	16K0F3E
	87	157.425 - 157.425	10.4	20.0 PM	16K0F3E
	80	161.775 - 161.775	9.8	2.5 PM	8K10F1E
	80	161.775 - 161.775	9.8	2.5 PM	8K10F1W
	80	161.775 - 161.775	9.8	2.5 PM	11K0F3E
EF	90	136.0 - 149.05	11.9	5.0 PM	16K0F3E
	90	151.05 - 174.0	11.2	2.0 PM	8K10F1E
	90	151.05 - 174.0	11.2	2.0 PM	8K10F1W
	90	151.05 - 174.0	11.2	2.0 PM	11K0F3E
EF	90	380.0 - 520.0	11.2	2.5 PM	8K10F1E
EF	90	380.0 - 520.0	11.2	2.5 PM	8K10F1W
EF	90	380.0 - 520.0	11.2	2.5 PM	11K0F3E
EF	90	470.0 - 520.0	9.84	2.5 PM	16K0F3E
	90	763.0 - 775.0	8.67	1.5 PM	8K10F1E
	90	763.0 - 775.0	8.67	1.5 PM	8K10F1W
	90	763.0 - 775.0	8.67	1.5 PM	16K0F3E
	90	793.0 - 805.0	11.1	1.5 PM	8K10F1E
	90	793.0 - 805.0	11.1	1.5 PM	8K10F1W
	90	793.0 - 805.0	11.1	1.5 PM	16K0F3E
	90	806.0 - 849.0	10.6	1.5 PM	8K10F1E
	90	806.0 - 849.0	10.6	1.5 PM	8K10F1W
	90	806.0 - 849.0	10.6	1.5 PM	16K0F3E
	22	809.0 - 851.0	9.48	2.5 PM	8K10F1E
	22	809.0 - 851.0	9.48	2.5 PM	8K10F1W
	22	809.0 - 851.0	9.48	2.5 PM	16K0F3E
	22	851.0 - 870.0	11.6	2.5 PM	8K10F1E
	22	851.0 - 870.0	11.6	2.5 PM	8K10F1W
	22	851.0 - 870.0	11.6	2.5 PM	16K0F3E
	90	851.0 - 894.0	12.0	1.5 PM	8K10F1E
	90	851.0 - 894.0	12.0	1.5 PM	8K10F1W
	90	851.0 - 894.0	12.0	1.5 PM	16K0F3E
	22	854.0 - 896.0	12.0	2.5 PM	8K10F1E
	22	854.0 - 896.0	12.0	2.5 PM	8K10F1W
	22	854.0 - 896.0	12.0	2.5 PM	16K0F3E
	90	896.0 - 901.0	9.64	1.5 PM	8K10F1E
	90	896.0 - 901.0	9.64	1.5 PM	8K10F1W
	90	896.0 - 901.0	9.64	1.5 PM	16K0F3E
	90	902.0 - 930.0	10.5	2.5 PM	8K10F1E
	90	902.0 - 930.0	10.5	2.5 PM	8K10F1W
	90	902.0 - 930.0	10.5	2.5 PM	16K0F3E
	22	928.0 - 929.0	10.5	5.0 PM	8K10F1E
	22	928.0 - 929.0	10.5	5.0 PM	8K10F1W
	22	928.0 - 929.0	10.5	5.0 PM	16K0F3E
	22	931.0 - 935.0	10.2	1.5 PM	8K10F1E
	22	931.0 - 935.0	10.2	1.5 PM	8K10F1W
	22	931.0 - 935.0	10.2	1.5 PM	16K0F3E
	90	935.0 - 940.0	10.5	1.5 PM	8K10F1E
	90	935.0 - 940.0	10.5	1.5 PM	8K10F1W
	90	935.0 - 940.0	10.5	1.5 PM	16K0F3E
	22	941.0 - 960.0	9.8	1.5 PM	8K10F1E
	22	941.0 - 960.0	9.8	1.5 PM	8K10F1W
	22	941.0 - 960.0	9.8	1.5 PM	16K0F3E

EF:	This device may contain functions that are not operational in U.S Territories except as noted in the filing. This grant has extended frequencies as noted in the filing and Section 2.927(b) applies to this authorization.

Mail To:
