GMZH3 27 MHz Wireless Mouse Teardown Internal... - FCC ID FSUGMZH3

FCC ID FSUGMZH3

Internal Photos

27 MHz Wireless Mouse

by KYE SYSTEMS CORP.

Document preview loads when visible.

Document Details

FCC IDFSUGMZH3
Document ID496911
Document TypeInternal Photos
DescriptionInternal Photos

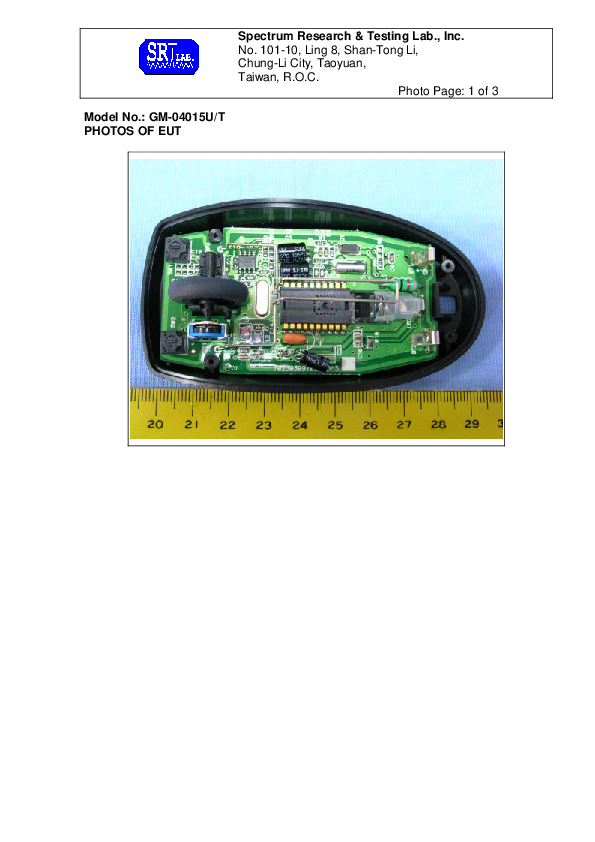

Document Title.穨.PHOTOS OF EUT-tx-internal
ApplicantKYE SYSTEMS CORP.
Equipment Class27 MHz Wireless Mouse
Product CodeGMZH3
Application IDuqPjFtq2erH82Tse4mqCcg==
Application PurposeOriginal Equipment
Application Date2004-12-15
Frequency Range27.045 MHz
FRN0005897442
Test FirmSpectrum Research & Testing Lab.
Certified ByJohnson Ho Agent
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2004-12-15
Available2004-12-15
Created2004-12-14
Modified2004-12-14
Pages3
File TypeAdobe Acrobat PDF
File Size455679
File SHA-2567006e0c8f5c3ad9fbf86de7d37a1b04ee286b1daf6418e77ee5155fbb3a85698
PDF Metadata Author.穨.peggy_chen
PDF Metadata Producer.穨.Microsoft Word Acrobat PDFWriter 5.0Windows ª©
FCC.gov SourcesFCC.gov 496911
