GMZHA WIRELESS DONGLE Block Diagram - FCC ID FSUGMZHA
FCC ID FSUGMZHA

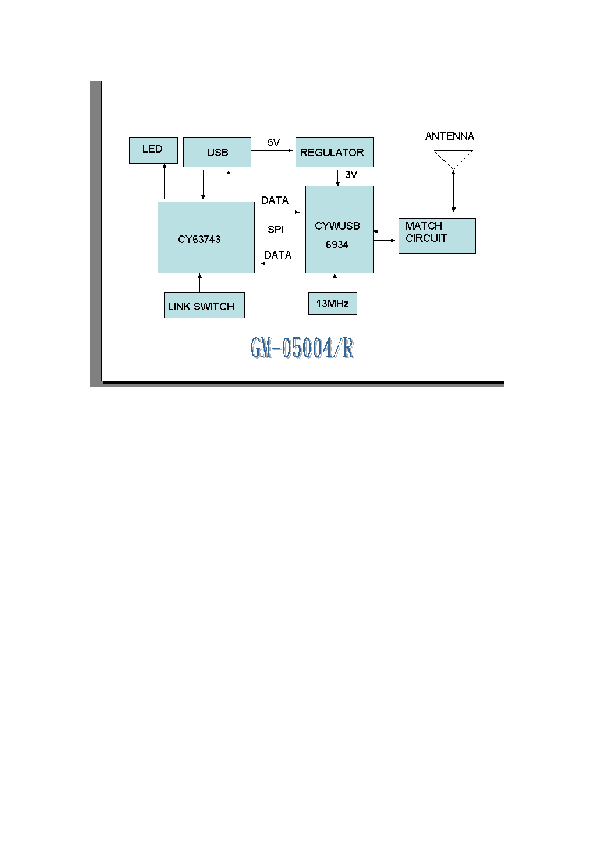

BLOCK DIAGRAM
WIRELESS DONGLE
Document preview loads when visible.
Document Details
| FCC ID | FSUGMZHA |
|---|---|
| Document ID | 601947 |
| Document Type | Block Diagram |
| Description | BLOCK DIAGRAM |
| Applicant | KYE SYSTEMS CORP. |
| Equipment Class | WIRELESS DONGLE |
| Product Code | GMZHA |
| Application ID | iCSRcyoDfOUPtXHO6YNAMg== |
| Application Purpose | Original Equipment |
| Application Date | 2005-11-11 |
| Frequency Range | 2402-2480 MHz |
| FRN | 0005897442 |
| Test Firm | Spectrum Research & Testing Laboratory, Inc. |
| Certified By | SCOTTE TSOU |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2005-11-11 |
| Available | 2005-11-11 |
| Created | 2005-10-25 |
| Modified | 2005-10-25 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 16465 |
| File SHA-256 | bbcab43552471b8382fe4e366983d0146dea887a4fcdfe97d6634fca8678e85e |
| PDF Metadata Author | SRT Peggy |
| PDF Metadata Producer | Acrobat Distiller 6.0.1 (Windows) Peggy |
| FCC.gov Sources | FCC.gov 601947 |
