C125U 2.4G Wireless Camera Block Diagram - FCC ID FU5C125U
FCC ID FU5C125U

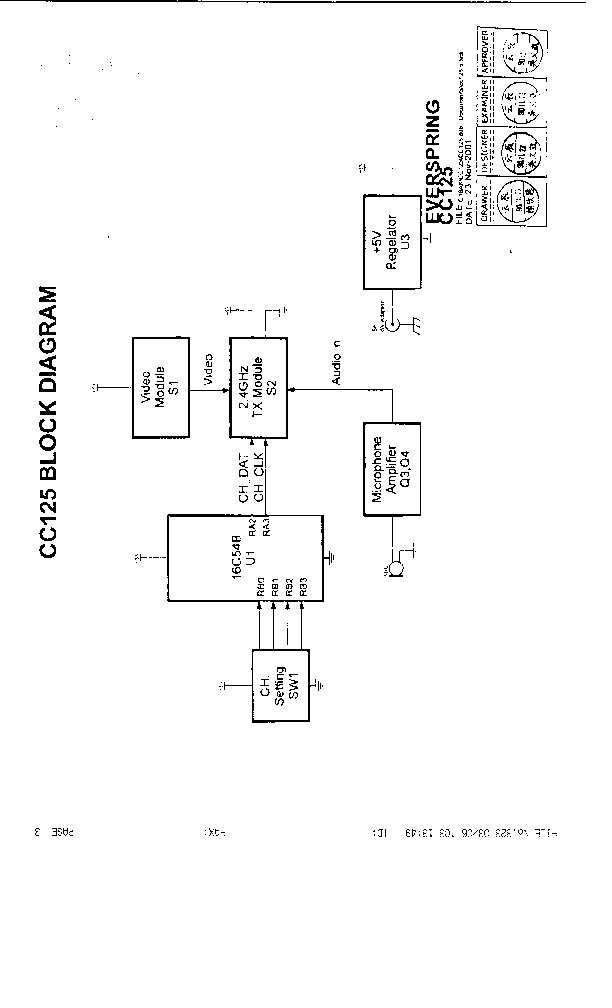

Block diagram
2.4G Wireless Camera
Document preview loads when visible.
Document Details
| FCC ID | FU5C125U |
|---|---|
| Document ID | 313260 |
| Document Type | Block Diagram |
| Description | Block diagram |
| Applicant | Everspring Industry Co Ltd |
| Equipment Class | 2.4G Wireless Camera |
| Product Code | C125U |
| Application ID | YeqJX885FTb61DR84H0CZA== |
| Application Purpose | Original Equipment |
| Application Date | 2003-03-26 |
| Frequency Range | 2411-2473 MHz |
| FRN | 0006923148 |
| Test Firm | DEKRA Testing and Certification Co., Ltd. |
| Certified By | Gene Chang President |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2003-03-26 |
| Available | 2003-03-26 |
| Created | 2003-03-10 |
| Modified | 2003-03-10 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 62162 |
| File SHA-256 | faba94fd5144ba45abfabf3c438eec417585d6e689d80f36d94c2834adbcbf2d |
| PDF Metadata Producer | Acrobat 5.0 Scan Plug-in for Windows Acrobat 5.0 Scan Plug-in for Windows |
| FCC.gov Sources | FCC.gov 313260 |
