143HS RC Toy Transmitter Block Diagram - FCC ID G6D143HS
FCC ID G6D143HS

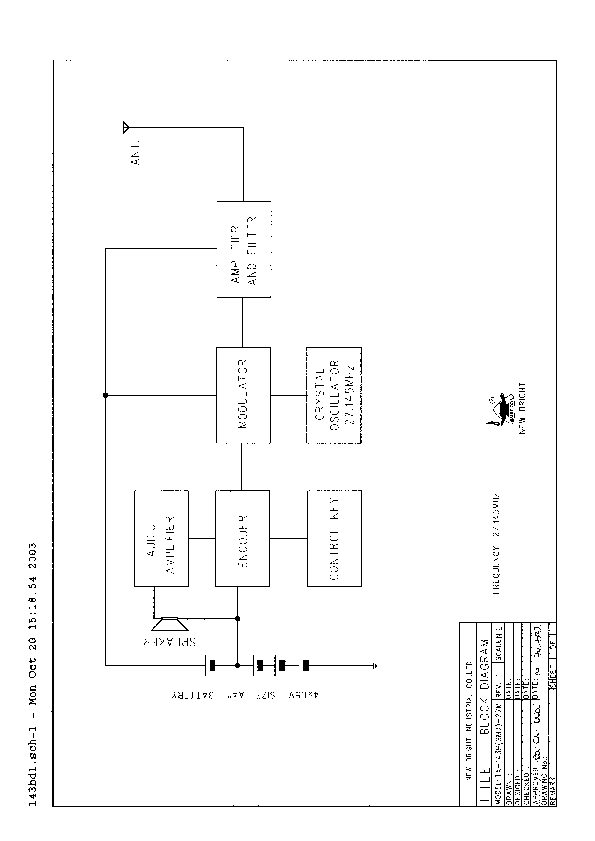

block diagram
RC Toy Transmitter
Document preview loads when visible.
Document Details
| FCC ID | G6D143HS |
|---|---|
| Document ID | 384975 |
| Document Type | Block Diagram |
| Description | block diagram |
| Document Title | 十二月 20, 2003 (3) |
| Applicant | New Bright Industrial Co Ltd |
| Equipment Class | RC Toy Transmitter |
| Product Code | 143HS |
| Application ID | MzzcfGTS2vor0JIRwFrt7w== |
| Application Purpose | Original Equipment |
| Application Date | 2003-12-24 |
| Frequency Range | 27.145 MHz |
| FRN | 0006258263 |
| Test Firm | Hong Kong Standards & Testing Cen. |
| Certified By | Marianne T. Bosley TCB Administrator |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2003-12-26 |
| Available | 2003-12-24 |
| Created | 2003-12-20 |
| Modified | 2003-12-20 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 51925 |
| File SHA-256 | c8f64865623d5f976b227837e55d067e1540b033ed50535e47de2a5aa88f2a92 |
| PDF Metadata Author | cee3 |
| PDF Metadata Producer | pdfFactory http://www.pdffactory.com pdfFactory v1.57 (Windows Me Chinese(Taiwan)) |
| FCC.gov Sources | FCC.gov 384975 |
