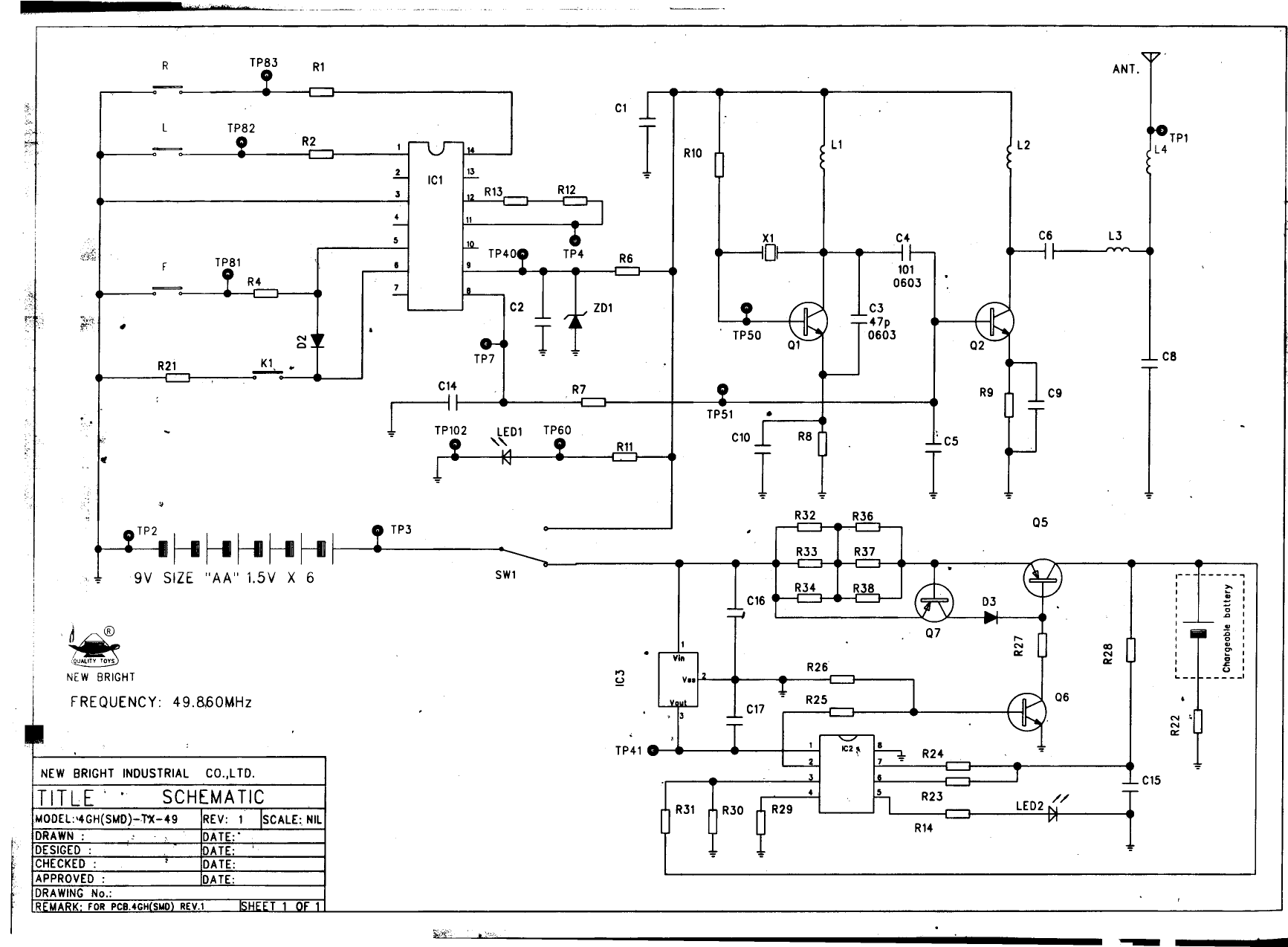

4GHHS Radio Control Toy Transmitter Schematics - FCC ID G6D4GHHS

FCC ID G6D4GHHS

Schematics

Radio Control Toy Transmitter

by New Bright Industrial Co Ltd

Document preview loads when visible.

Document Details

FCC IDG6D4GHHS
Document ID1071577
Document TypeSchematics
DescriptionSchematics
Document TitleNone
ApplicantNew Bright Industrial Co Ltd
Equipment ClassRadio Control Toy Transmitter
Product Code4GHHS
Application IDrLKyXnnd0djHVhqKjPcg2Q==
Application PurposeOriginal Equipment
Application Date2009-02-23
Frequency Range49.86 MHz
FRN0006258263
Test FirmThe Hong Kong Standards and Testing Centre Ltd.
Certified ByKC Lee
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2009-02-23
Available2009-02-23
Created2009-02-23
Modified2009-02-23
Pages1
File TypeAdobe Acrobat PDF
File Size100509
File SHA-2562b928fe931bc730e10f0578f0840dd58f00a52eb2dc206c8d6bb3d1db742ea18
PDF Metadata Authorspqacwzh [ SZ05W497 ]
PDF Metadata CreatorNone
PDF Metadata ProducerHewlett-Packard Intelligent Scanning Technology 3
FCC.gov SourcesFCC.gov 1071577
