29930C 900 MHz CORDLESS TELEPHONE Schematics - FCC ID G9H2-9930C
FCC ID G9H2-9930C
SCHEMATIC BASE RF
900 MHz CORDLESS TELEPHONE
by Thomson Inc.
Document Details
| FCC ID | G9H2-9930C |
|---|---|
| Document ID | 20449 |
| Document Type | Schematics |

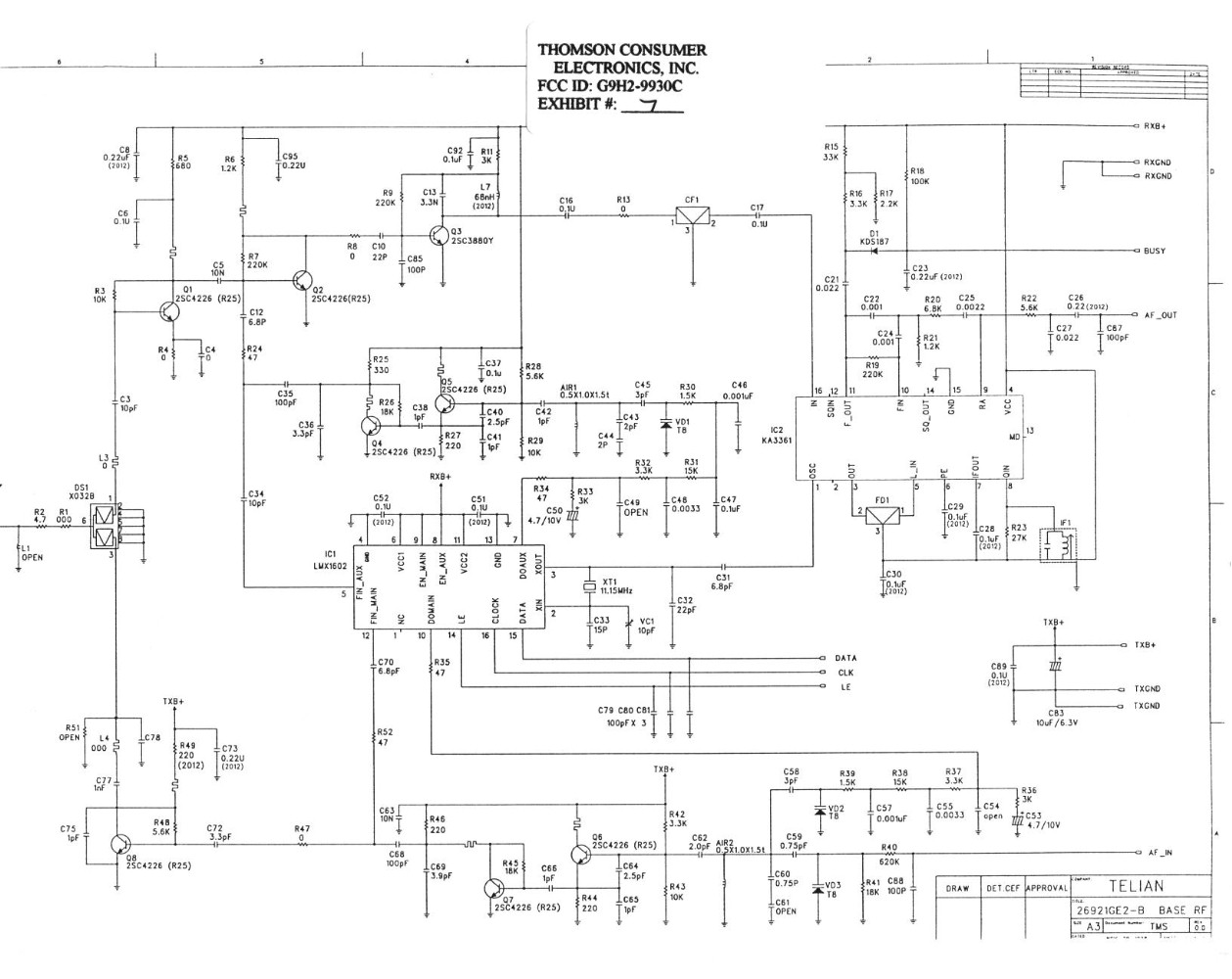

| Description | SCHEMATIC BASE RF |
| Applicant | Thomson Inc. |
| Equipment Class | 900 MHz CORDLESS TELEPHONE |
| Product Code | 29930C |
| Application ID | at0wFSXHr5X3YO06Qfq+pQ== |
| Application Purpose | Original Equipment |
| Application Date | 1999-03-23 |
| Frequency Range | 902.1-903.7 MHz |
| FRN | 0014130454 |
| Test Firm | Timco Engineering, Inc. |
| Certified By | S. S. SANDERS ENGINEER |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 1999-01-21 |
| Available | 1999-03-23 |
| Pages | 0 |
| File Type | JPEG Image |
| File Size | 177183 |
| File SHA-256 | 635a3d5a415a88198d35c7dda8e2ec11d1baef4dbbfb4447e4b5a4147abd7d50 |
| FCC.gov Sources | FCC.gov 20449 |
