200080 27 MHz Wireless R/C Toy Transmitter... - FCC ID GLE200080
FCC ID GLE200080

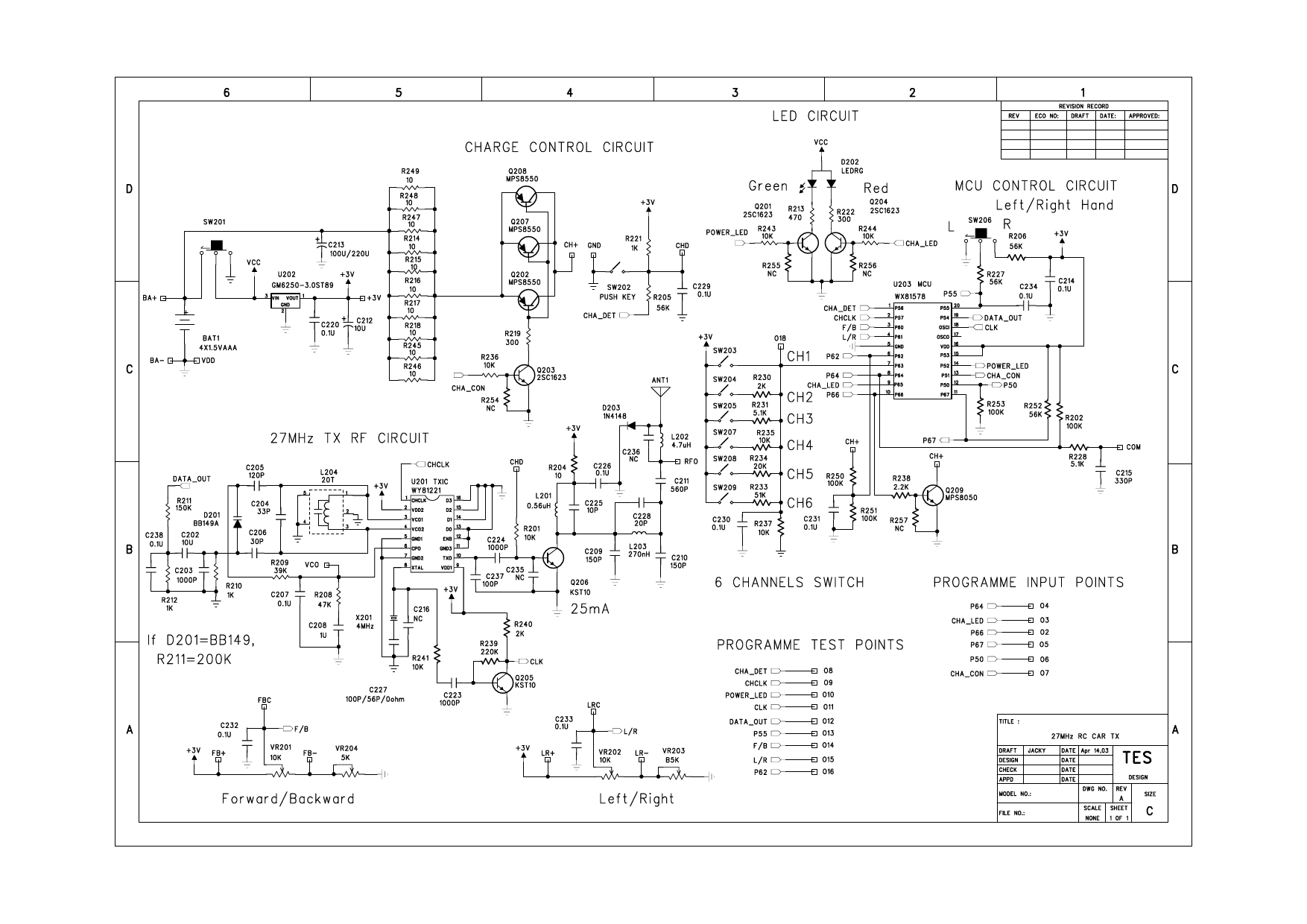

schematics
27 MHz Wireless R/C Toy Transmitter
Document preview loads when visible.
Document Details
| FCC ID | GLE200080 |
|---|---|
| Document ID | 322999 |
| Document Type | Schematics |
| Description | schematics |
| Applicant | Suncon Toys Industry Ltd |
| Equipment Class | 27 MHz Wireless R/C Toy Transmitter |
| Product Code | 200080 |
| Application ID | AGCYPOyixHUvdX0FAksB7A== |
| Application Purpose | Original Equipment |
| Application Date | 2003-05-02 |
| Frequency Range | 26.96-27.28 MHz |
| FRN | 0005857198 |
| Test Firm | Timco Engineering, Inc. |
| Certified By | Garry Yeung |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2003-05-05 |
| Available | 2003-05-02 |
| Created | 2019-01-10 |
| Modified | 2019-01-10 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 121885 |
| File SHA-256 | abbe6be23e8cecb5b2cccb96c5df922cb945b5239c3ef75e241abf33aceb69d5 |
| PDF Metadata Producer | GPL Ghostscript 9.25 |
| FCC.gov Sources | FCC.gov 322999 |
