607090 REMOTE CONTROL TRANSMITTER Block Diagram - FCC ID GLE607090
FCC ID GLE607090

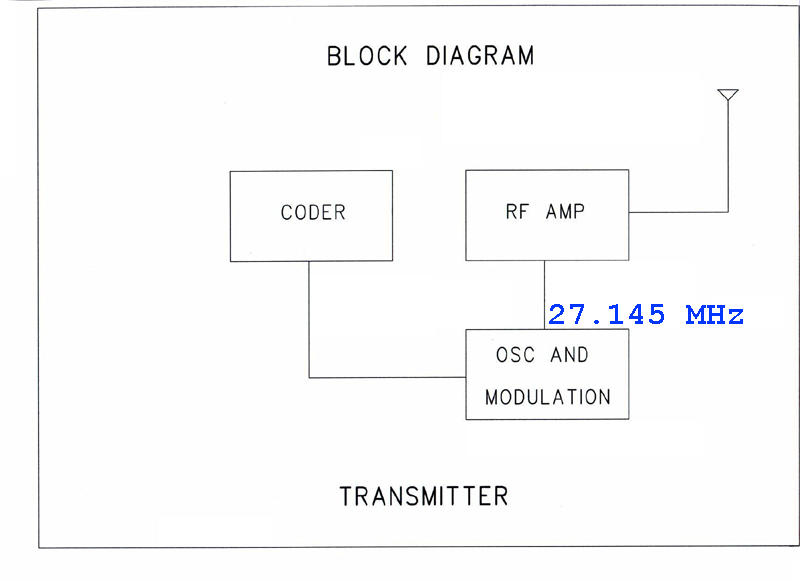

BLOCK DIAGRAM
REMOTE CONTROL TRANSMITTER
Document preview loads when visible.
Document Details
| FCC ID | GLE607090 |
|---|---|
| Document ID | 625634 |
| Document Type | Block Diagram |
| Description | BLOCK DIAGRAM |
| Applicant | Suncon Toys Industry Ltd |
| Equipment Class | REMOTE CONTROL TRANSMITTER |
| Product Code | 607090 |
| Application ID | /ozY9b1VhLiygd7Og4/WpA== |
| Application Purpose | Original Equipment |
| Application Date | 2006-02-02 |
| Frequency Range | 27.145 MHz |
| FRN | 0005857198 |
| Test Firm | Timco Engineering, Inc. |
| Certified By | GARRY YEUNG |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2006-02-03 |
| Available | 2006-02-02 |
| Created | 2006-02-01 |
| Modified | 2006-02-01 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 311408 |
| File SHA-256 | 85ef00cfb5da52b76fddcaee94f0baf7181976ae126cd4cc30e053639265ef63 |
| PDF Metadata Producer | Adobe Photoshop Elements 2.0 Adobe Photoshop Elements for Windows |
| FCC.gov Sources | FCC.gov 625634 |
