PD2TX5000S Licensed non boradcast 4.8W... - FCC ID H25PD2TX5000S
FCC ID H25PD2TX5000S

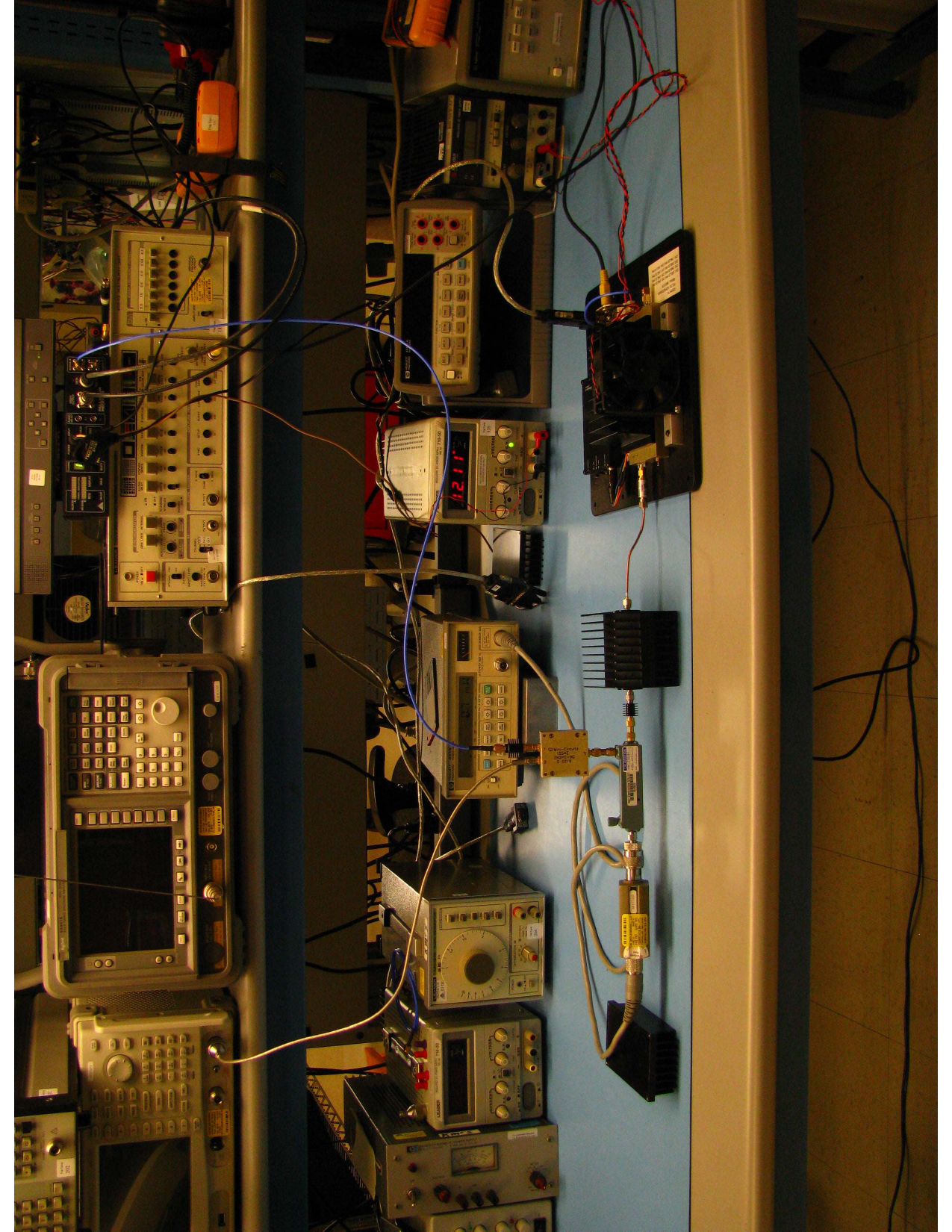

Test Setup Photos
Licensed non boradcast 4.8W COFDM video transmitter
Document preview loads when visible.
Document Details
| FCC ID | H25PD2TX5000S |
|---|---|
| Document ID | 1633728 |
| Document Type | Test Setup Photos |
| Description | Test Setup Photos |
| Document Title | D:\DTC_PD2TX\PD2TX5000S_data\[15]H25PD2TX5000S_5w test1.jpg |
| Applicant | DTC Communications Inc. |
| Equipment Class | Licensed non boradcast 4.8W COFDM video transmitter |
| Product Code | PD2TX5000S |
| Application ID | /S6zITFodWntj+X8Ss/BoQ== |
| Application Purpose | Original Equipment |
| Application Date | 2012-02-09 |
| Frequency Range | 2450.75-2482.75 MHz |
| FRN | 0004302550 |
| Test Firm | Retlif Testing Laboratories |
| Certified By | Stephen Anderson |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2012-02-08 |
| Available | 2012-02-09 |
| Created | 2012-02-09 |
| Modified | 2012-02-09 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 1468571 |
| File SHA-256 | cfcf398cd62ed13db626933444836ed4cebc8d87db42e99eebd2c0f6eff275fe |
| PDF Metadata Author | Norv |
| PDF Metadata Creator | PScript5.dll Version 5.2 |
| PDF Metadata Producer | GNU Ghostscript 7.06 |
| FCC.gov Sources | FCC.gov 1633728 |
