R49 Car Alarm Receiver Block Diagram - FCC ID H5OR49
FCC ID H5OR49

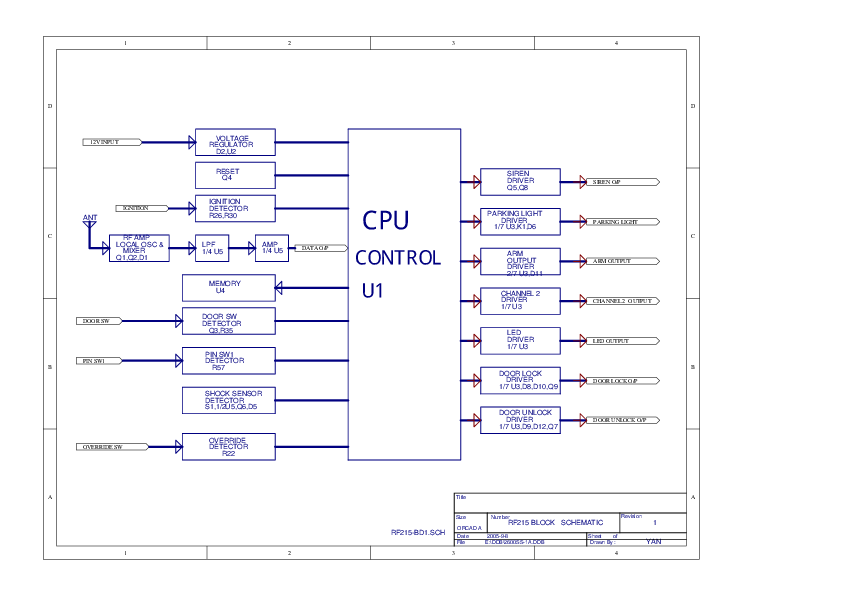

Block Diagram
Car Alarm Receiver
Document preview loads when visible.
Document Details
| FCC ID | H5OR49 |
|---|---|
| Document ID | 628557 |
| Document Type | Block Diagram |
| Description | Block Diagram |
| Applicant | Advance Security Inc |
| Equipment Class | Car Alarm Receiver |
| Product Code | R49 |
| Application ID | omVV8HivysSAYkimGGeqtQ== |
| Application Purpose | Original Equipment |
| Application Date | 2006-02-10 |
| Frequency Range | 433.92 MHz |
| FRN | 0006640668 |
| Test Firm | Compliance Certification Services Inc. |
| Certified By | Vince Chiang |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | Yes |
| Submitted | 2006-02-14 |
| Available | 2006-02-10 |
| Created | 2006-01-25 |
| Modified | 2006-01-25 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 14023 |
| File SHA-256 | d1d59f06c824040278f84dfa144aa9f9ef7c6d9db7f5affc11fa7d694c00a790 |
| PDF Metadata Producer | Acrobat Distiller 5.0 (Windows) |
| FCC.gov Sources | FCC.gov 628557 |
