TR04 Car Alarm Transceiver Block Diagram - FCC ID H5OTR04
FCC ID H5OTR04

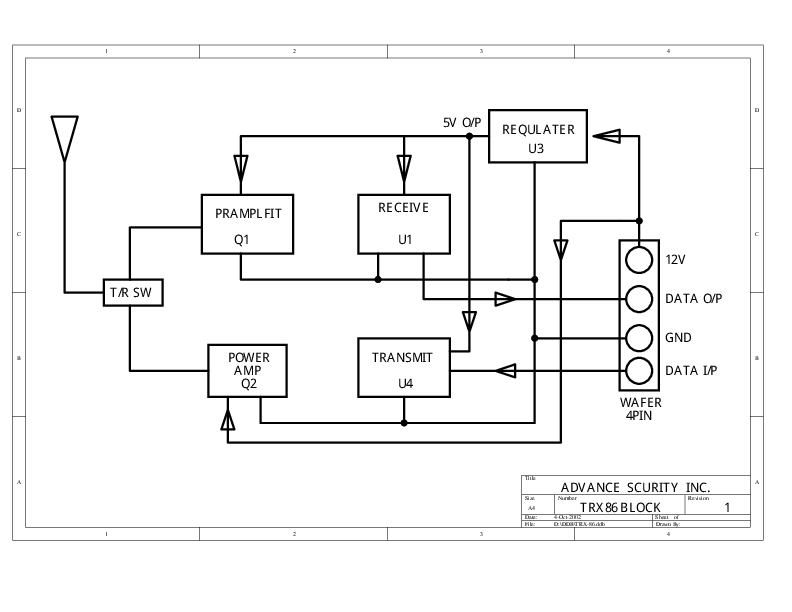

Block Diagram
Car Alarm Transceiver
Document preview loads when visible.
Document Details
| FCC ID | H5OTR04 |
|---|---|
| Document ID | 283047 |
| Document Type | Block Diagram |
| Description | Block Diagram |
| Applicant | Advance Security Inc |
| Equipment Class | Car Alarm Transceiver |
| Product Code | TR04 |
| Application ID | Khmfx3e/cfFXG7BZwBTEfA== |
| Application Purpose | Original Equipment |
| Application Date | 2002-11-12 |
| Frequency Range | 433.92 MHz |
| FRN | 0006640668 |
| Test Firm | Compliance Certification Services Inc. |
| Certified By | Sarah Chen Agent |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | Yes |
| Submitted | 2002-11-12 |
| Available | 2002-11-12 |
| Created | 2002-10-04 |
| Modified | 2002-10-04 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 8887 |
| File SHA-256 | fbbec9dca5a2ae0185d247174e8de0c2d5f9e3996166c2dcb2b90eab2aca4534 |
| PDF Metadata Producer | Acrobat Distiller 5.0 (Windows) |
| FCC.gov Sources | FCC.gov 283047 |
