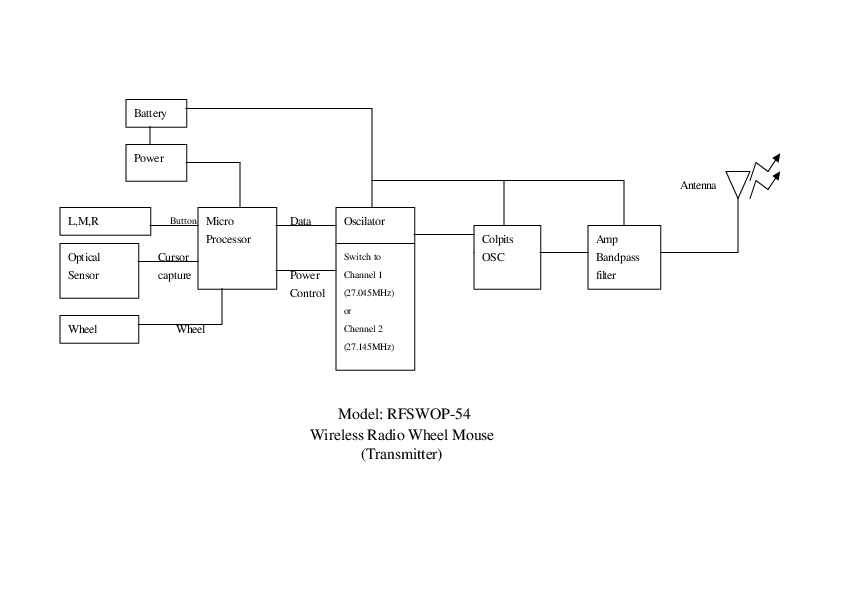

RSWOP54 RF Mouse Block Diagram - FCC ID H8GRSWOP54

FCC ID H8GRSWOP54

Block diagram

RF Mouse

by A Four Tech Co Ltd

Document preview loads when visible.

Document Details

FCC IDH8GRSWOP54
Document ID310573
Document TypeBlock Diagram
DescriptionBlock diagram
Document Title.穨.
ApplicantA Four Tech Co Ltd
Equipment ClassRF Mouse
Product CodeRSWOP54
Application IDxi/U/eh0s0pQaP98vkTrNA==
Application PurposeOriginal Equipment
Application Date2003-03-14
Frequency Range27.045-27.145 MHz
FRN0005866348
Test FirmBTL Inc.
Certified ByDavid King R & D Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-03-17
Available2003-03-14
Created2003-02-25
Modified2003-03-13
Pages1
File TypeAdobe Acrobat PDF
File Size3851
File SHA-256d7c8ace075c974f4e6de8e942740df5f5a3fd5faa621de85853dca0cb004a4ec
PDF Metadata Producer.穨. Acrobat PDFWriter 4.0Windows ª©
FCC.gov SourcesFCC.gov 310573
