FCC ID H8N-WLL6540
802.11 b/g/n 2.4G Band 1T1R AP Module
by Askey Computer Corp
Grantee Code: H8N Product Code: WLL6540
Latest application date: 2015-11-04
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Original Equipment | 2015-11-04 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2015-11-04 | PDF 931.5 KB |
| Internal Photos | Internal Photos | 2015-11-04 | PDF 522 KB |
| External Photos | External Photos | 2015-11-04 | PDF 201.9 KB |
| Label | ID Label/Location Info | 2015-11-04 | PDF 170.1 KB |

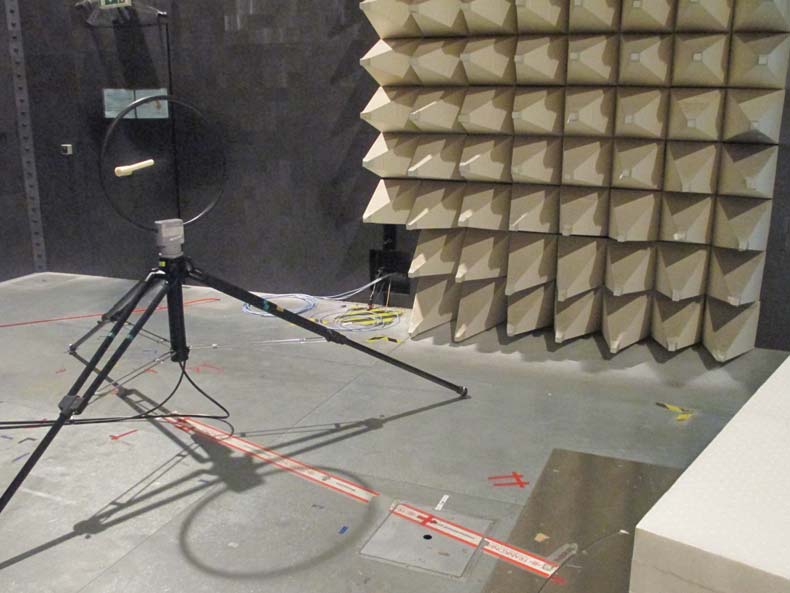

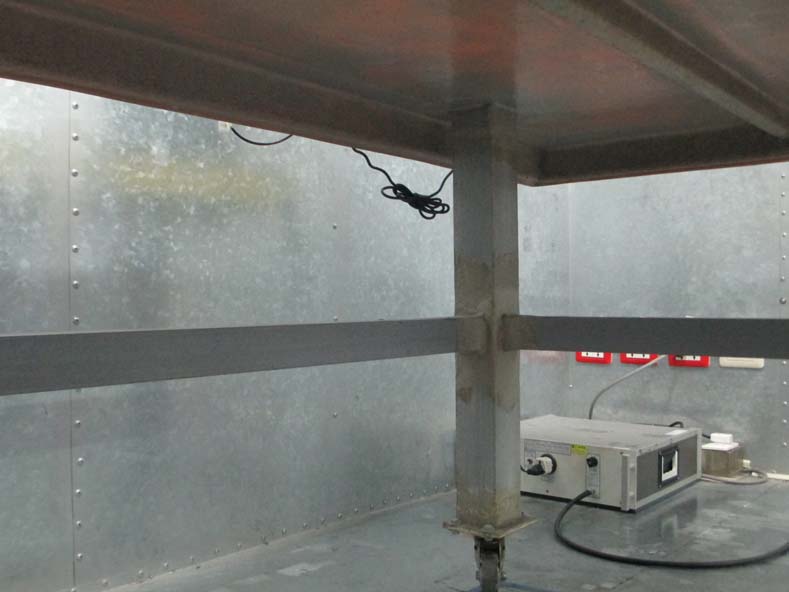

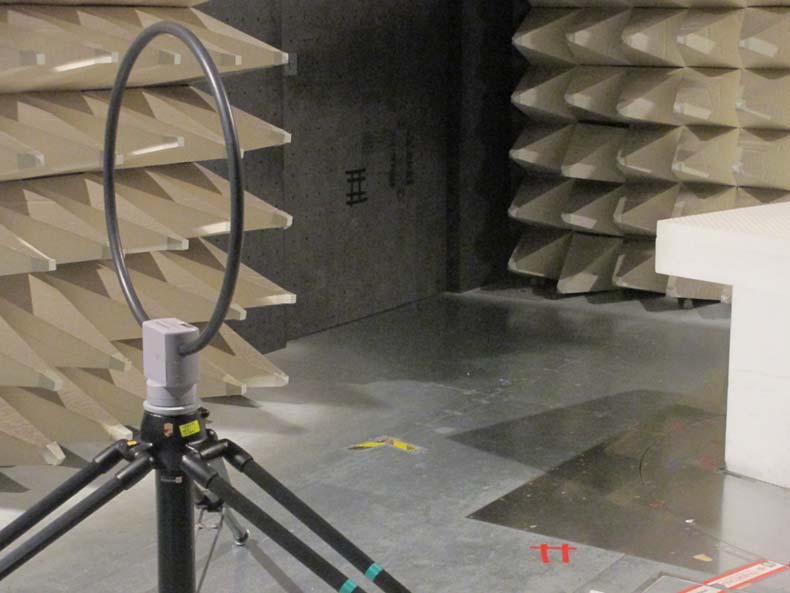

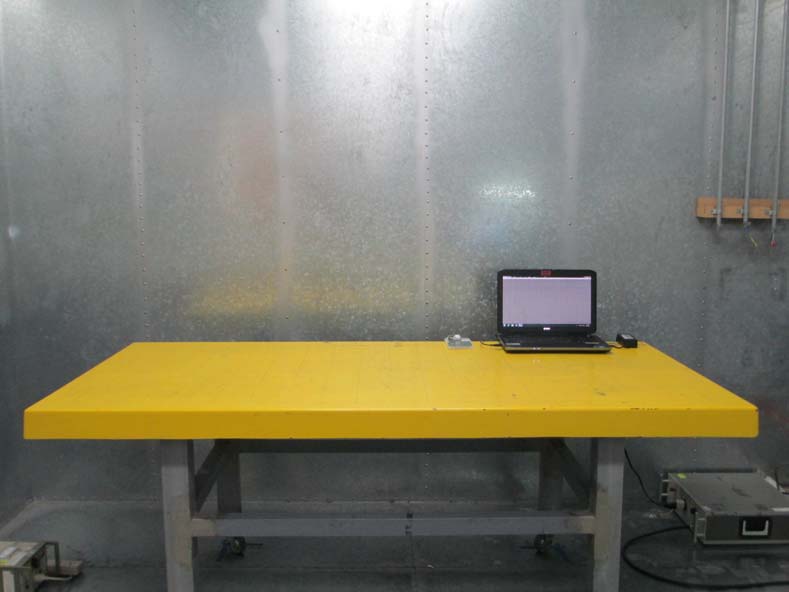

| Test Setup Photos | Test Setup Photos | 2015-11-04 | PDF 435.9 KB |
| Test Report | Test Report | 2015-11-04 | PDF 1.4 MB |
| Confidentiality Request Letter | Cover Letter(s) | 2015-11-04 | PDF 125.7 KB |
| Cover Letter | Cover Letter(s) | 2015-11-04 | PDF 91.1 KB |
| DOC Letter | Cover Letter(s) | 2015-11-04 | PDF 55.7 KB |
| Modular Approval Letter | Cover Letter(s) | 2015-11-04 | PDF 100.5 KB |
| POA | Cover Letter(s) | 2015-11-04 | PDF 46.1 KB |
| RF Exposure | RF Exposure Info | 2015-11-04 | PDF 52.9 KB |
| Block Diagram Metadata only | Block Diagram | PDF 151.9 KB | |
| Schematics Metadata only | Schematics | PDF 153.1 KB | |
| Operational Description Metadata only | Operational Description | PDF 1.6 MB |
Application Information
| Application ID | GqeVQNqVyg32bKjQiEdDkw== |
|---|---|
| Final Action Date | 2015-11-04 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0006923098 |
| Model | WLL6540 |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | 802.11 b/g/n 2.4G Band 1T1R AP Module |
| Responsible Party | Jack Po, Manager, jackpo@askey.com  , 886 2 2228-7588 |
| Test Firm | Alex Chen, Sporton International Inc., alex@sporton.com.tw  , 886-3-327-3456 |
| TCB Email | TEI@TIMCOENGR.COM  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Single Modular Approval. Power listed is conducted. This module can only be used with a host antenna circuit trace layout design in strict compliance with the OEM instructions provided. This module is restricted to installation in products for use only in mobile and fixed applications. Approval is limited to OEM installation only. Compliance of this device in all final host configurations is the responsibility of the Grantee. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. The antenna(s) used for this transmitter must not exceed a maximum gain of 2.4 dBi. OEM integrators must be provided with antenna installation instructions and labeling requirements for finished products. OEM integrators and end-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. This device has 20 MHz and 40 MHz bandwidth modes. |
