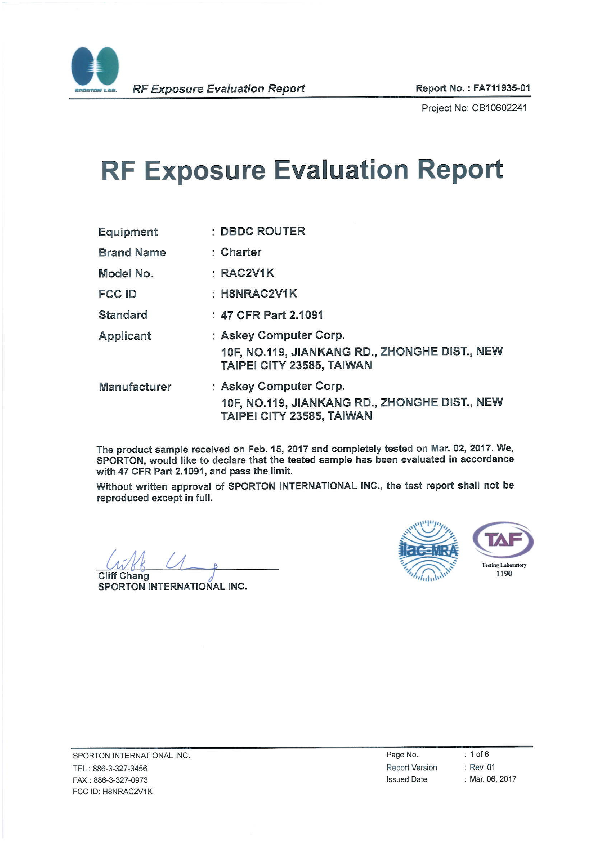

Page 1 of RAC2V1K DBDC ROUTER RF Exposure Info MPE Test Report Askey Computer Corp

RF Exposure Evaluation Report
Report No. : FA711935-01
TABLE OF CONTENTS
GENERAL DESCRIPTION ....................................................................................................................4
1.1
EUT General Information .......................................................................................................................4
1.2
Testing Location .....................................................................................................................................4
MAXIMUM PERMISSIBLE EXPOSURE ...............................................................................................5
2.1
Limit of Maximum Permissible Exposure ...............................................................................................5
2.2
MPE Calculation Method........................................................................................................................5
2.3
Calculated Result and Limit....................................................................................................................6
PHOTOGRAPHS OF EUT V01
SPORTON INTERNATIONAL INC.
Page No.
: 2 of 6
TEL : 886-3-327-3456
Report Version
: Rev. 01
FAX : 886-3-327-0973
Issued Date
: Mar. 06, 2017
FCC ID: H8NRAC2V1K
RF Exposure Evaluation Report
Report No. : FA711935-01
REVISION HISTORY
REPORT NO.
VERSION
DESCRIPTION
ISSUED DATE
FA711935-01
Rev. 01
Initial issue of report
Mar. 06, 2017
SPORTON INTERNATIONAL INC.
Page No.
: 3 of 6
TEL : 886-3-327-3456
Report Version
: Rev. 01
FAX : 886-3-327-0973
Issued Date
: Mar. 06, 2017
FCC ID: H8NRAC2V1K
RF Exposure Evaluation Report
General Description
1.1
EUT General Information
Report No. : FA711935-01
RF General Information
Frequency
Range
(MHz)
Evaluation
Mode
Operating
Frequency
(MHz)
Modulation Type
2.4GHz WLAN
2400-2483.5
2412-2462
802.11b: DSSS (DBPSK, DQPSK, CCK)
802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM)
5GHz WLAN
5150-5250
5725-5850
5180-5240
5745-5825
802.11a/n: OFDM (BPSK, QPSK, 16QAM, 64QAM)
802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM,
256QAM)
1.2
Testing Location
Testing Location
HWA YA
JHUBEI
ADD
No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C.
TEL
886-3-327-3456
ADD
No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C.
TEL
886-3-656-9065
FAX
FAX
886-3-327-0973
886-3-656-9085
SPORTON INTERNATIONAL INC.
Page No.
: 4 of 6
TEL : 886-3-327-3456
Report Version
: Rev. 01
FAX : 886-3-327-0973
Issued Date
: Mar. 06, 2017
FCC ID: H8NRAC2V1K
RF Exposure Evaluation Report
Report No. : FA711935-01
Maximum Permissible Exposure
2.1
Limit of Maximum Permissible Exposure
(A) Limits for Occupational / Controlled Exposure
Frequency Range
(MHz)
Electric Field
Strength (E) (V/m)
Magnetic Field
Strength (H) (A/m)
Power Density (S)
(mW/ cm²)
Averaging Time
|E|²,|H|² or S
(minutes)
0.3-3.0
614
1.63
(100)*
3.0-30
1842 / f
4.89 / f
(900 / f)*
30-300
61.4
0.163
1.0
300-1500
F/300
1500-100,000
(B) Limits for General Population / Uncontrolled Exposure
Frequency Range
(MHz)
Electric Field
Strength (E) (V/m)
Magnetic Field
Strength (H) (A/m)
Power Density (S)
(mW/ cm²)
Averaging Time
|E|²,|H|² or S
(minutes)
0.3-1.34
614
1.63
(100)*
30
1.34-30
824/f
2.19/f
(180/f)*
30
30-300
27.5
0.073
0.2
30
300-1500
F/1500
30
1500-100,000
1.0
30
Note: f = frequency in MHz ; *Plane-wave equivalent power density
2.2
MPE Calculation Method
The MPE was calculated at 25 cm to show compliance with the power density limit.
The following formula was used to calculate the Power Density:
E (V/m) =
30  P  G
Power Density:
Pd (W/m²) =
E2
377
E = Electric field (V/m)
P = RF output power (W)
G = EUT Antenna numeric gain (numeric)
d = Separation distance between radiator and human body (m)
The formula can be changed to
Pd =
30  P  G
377  d 2
SPORTON INTERNATIONAL INC.
Page No.
: 5 of 6
TEL : 886-3-327-3456
Report Version
: Rev. 01
FAX : 886-3-327-0973
Issued Date
: Mar. 06, 2017
FCC ID: H8NRAC2V1K
RF Exposure Evaluation Report
2.3
Report No. : FA711935-01
Calculated Result and Limit
Exposure Environment: General Population / Uncontrolled Exposure
DG
Power
EIRP
EIRP
Distance
(dBi)
(dBm)
(dBm)
(W)
(cm)
(mW/cm )
(mW/cm )
(S/Limit)
5.8G;D1D
10.84
25.12
35.96
3.94457
25
0.50224
1.00000
0.50224
2.4G;D1D
9.88
25.54
35.42
3.48337
25
0.44352
1.00000
0.44352
Sum Ratio
0.94576
Ratio Limit
Mode
S Limit
Ratio
SPORTON INTERNATIONAL INC.
Page No.
: 6 of 6
TEL : 886-3-327-3456
Report Version
: Rev. 01
FAX : 886-3-327-0973
Issued Date
: Mar. 06, 2017
FCC ID: H8NRAC2V1K
