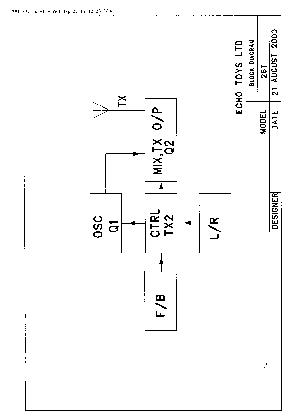

26T27 Ski Tiger II Block Diagram - FCC ID HAP26T27

FCC ID HAP26T27

block diagram

Ski Tiger II

by Echo Toys Ltd

Document preview loads when visible.

Document Details

FCC IDHAP26T27
Document ID131343
Document TypeBlock Diagram
Descriptionblock diagram
ApplicantEcho Toys Ltd
Equipment ClassSki Tiger II
Product Code26T27
Application IDgPBM4C9DU5UpQTv6GNyRWg==
Application PurposeOriginal Equipment
Application Date2000-12-28
Frequency Range26.96-27.28 MHz
FRN0006267157
Test FirmSGS IECC Limited
Certified ByOliver Chan General Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2001-01-05
Available2000-12-28
Created2000-12-21
Modified2000-12-21
Pages1
File TypeAdobe Acrobat PDF
File Size12512
File SHA-256f98460ca5754cb34ffbcba355813eeef7e8f4e7bc8e5fe2ef0ee7f0222cbd7dd
PDF Metadata ProducerAcrobat 4.0 Scan Plug-in for Windows Acrobat 4.0 Scan Plug-in for Windows
FCC.gov SourcesFCC.gov 131343
