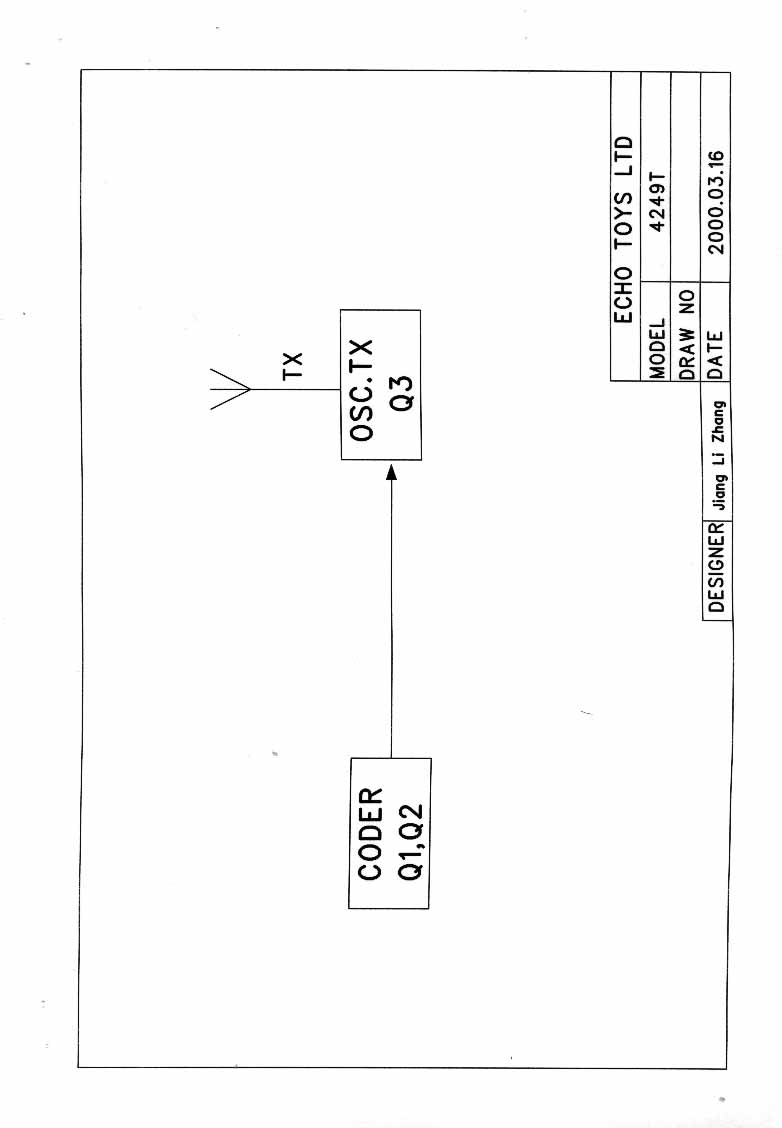

604249 Toy Remote Control Block Diagram - FCC ID HAP604249

FCC ID HAP604249

Block Diagram

Toy Remote Control

by Echo Toys Ltd

Block Diagram

Document Details

FCC IDHAP604249
Document ID102689
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantEcho Toys Ltd
Equipment ClassToy Remote Control
Product Code604249
Application IDRfdlAAKMHmrm3ZbW9+9SlQ==
Application PurposeOriginal Equipment
Application Date2000-06-12
Frequency Range26.96-27.28 MHz
FRN0006267157
Test FirmInternational Elect. Cert. Centre
Certified ByElvin K. B. Director
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2000-06-01
Available2000-06-12
Pages0
File TypeJPEG Image
File Size35415
File SHA-256c8f6fcc0a77aa20af0ca7ae8b94e2bda40b2e11270363e1331d16a3dbebc2df4
FCC.gov SourcesFCC.gov 102689
