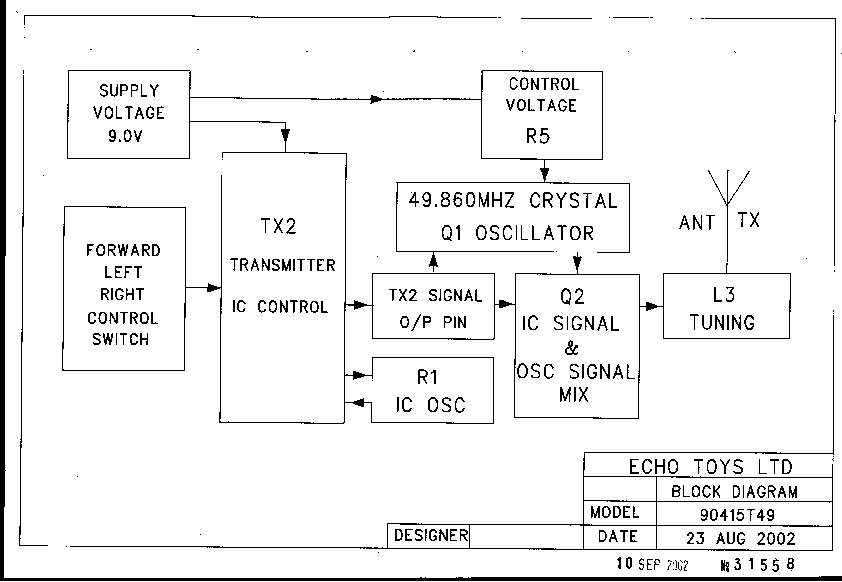

90415T49 Speed Boat Block Diagram - FCC ID HAP90415T49

FCC ID HAP90415T49

block diagram

Speed Boat

by Echo Toys Ltd

Document preview loads when visible.

Document Details

FCC IDHAP90415T49
Document ID271727
Document TypeBlock Diagram
Descriptionblock diagram
ApplicantEcho Toys Ltd
Equipment ClassSpeed Boat
Product Code90415T49
Application IDeLwRt4001xqiKHrLEV5JiA==
Application PurposeOriginal Equipment
Application Date2002-09-18
Frequency Range49.82-49.9 MHz
FRN0006267157
Test FirmSGS IECC Limited
Certified ByW. L. Yip Engineering Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2002-09-20
Available2002-09-18
Created2002-09-12
Modified2002-09-13
Pages1
File TypeAdobe Acrobat PDF
File Size27816
File SHA-256210e02dcd01e685710d4eb366ace517081a9b36ddc0fef025dc41bd21e32cfd6
PDF Metadata ProducerAcrobat 5.0 Scan Plug-in for Windows Acrobat 5.0 Scan Plug-in for Windows
FCC.gov SourcesFCC.gov 271727
