91301 Remote Control Toy Transmitter Schematics - FCC ID HAP91301

FCC ID HAP91301

Schematic Diagram

Remote Control Toy Transmitter

by Echo Toys Ltd

Document preview loads when visible.

Document Details

FCC IDHAP91301
Document ID448840
Document TypeSchematics

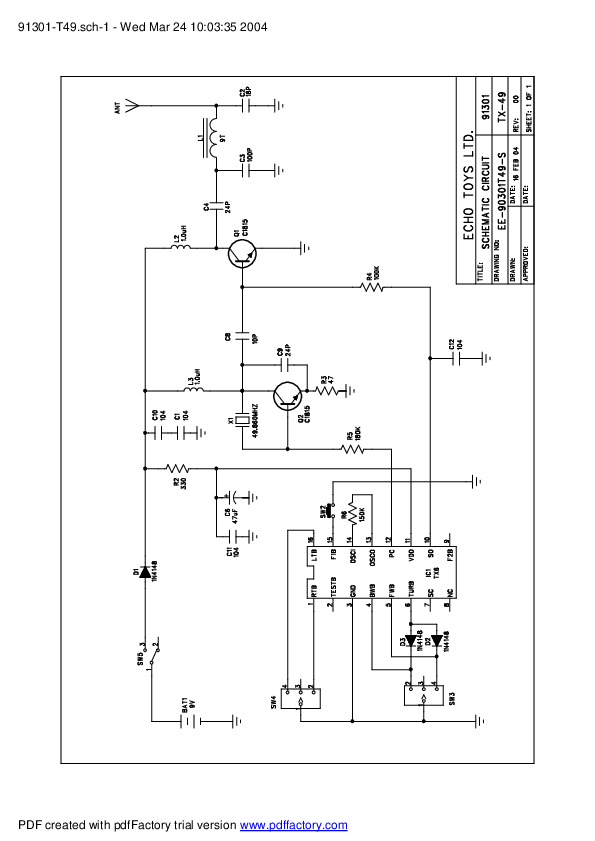

DescriptionSchematic Diagram
Document TitleCAM output
ApplicantEcho Toys Ltd
Equipment ClassRemote Control Toy Transmitter
Product Code91301
Application IDCcnubuxC71qeTtk9tnneYQ==
Application PurposeOriginal Equipment
Application Date2004-07-06
Frequency Range49.86 MHz
FRN0006267157
Test FirmCompliance Certification Services (Shenzhen) Inc.
Certified ByClinton Kao Manager ( AGENT )
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2004-07-12
Available2004-07-06
Created2004-03-24
Modified2004-03-24
Pages1
File TypeAdobe Acrobat PDF
File Size30735
File SHA-256801e2a4bc16779738abc00ac36e4d77ff4a9f8ea6fcfefd0dda771908807bd4b
PDF Metadata AuthorAdministrator
PDF Metadata ProducerpdfFactory www.pdffactory.com pdfFactory 2.21 (Windows 2000 Chinese)
FCC.gov SourcesFCC.gov 448840
