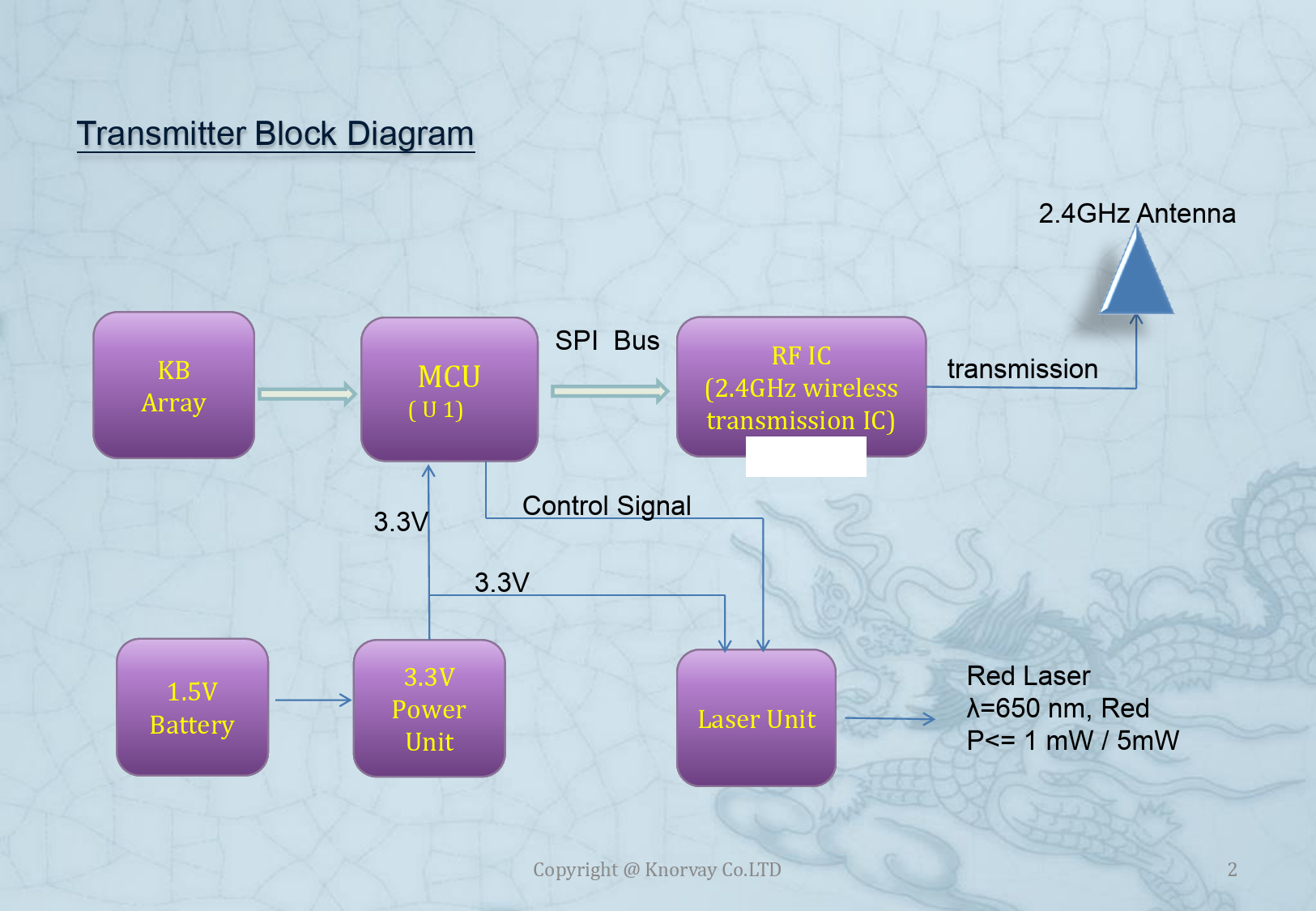

N33 WIRELESS PRESENTER Block Diagram - FCC ID HAR-N33

FCC ID HAR-N33

Block Diagram

WIRELESS PRESENTER

by Shanghai Knorvay Electronic Technology Ltd.

Document preview loads when visible.

Document Details

FCC IDHAR-N33
Document ID1673958
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitlePowerPoint
ApplicantShanghai Knorvay Electronic Technology Ltd.
Equipment ClassWIRELESS PRESENTER
Product CodeN33
Application IDMrqmpF92TFuXdZwsj0Tz7Q==
Application PurposeOriginal Equipment
Application Date2012-04-11
Frequency Range2415-2475 MHz
FRN0021659776
Test FirmSinTek Laboratory Co., Ltd.
Certified ByTiger Huang Product Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2012-04-11
Available2012-04-11
Created2012-04-06
Modified2012-04-09
Pages1
File TypeAdobe Acrobat PDF
File Size299642
File SHA-2565780fc1d5ad2b3293bb0f017a76dfb1131b1dba448c8b9b993aa44f8e05ee6b7
PDF Metadata Authoradmin
PDF Metadata CreatorMicrosoft Office PowerPoint 2007
PDF Metadata ProducerMicrosoft Office PowerPoint 2007
FCC.gov SourcesFCC.gov 1673958
