3B6PORUNV Door/Window Transmitter Block... - FCC ID HCQ3B6PORUNV
FCC ID HCQ3B6PORUNV

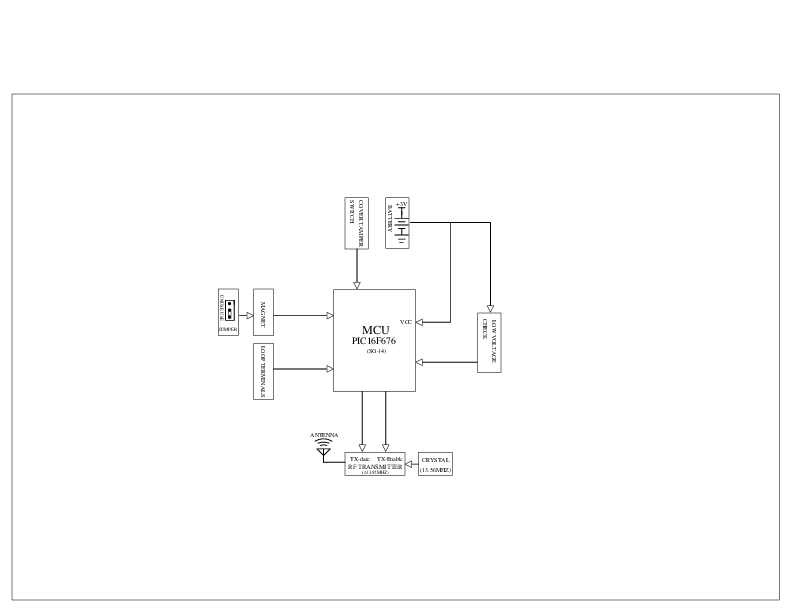

Block Diagram
Door/Window Transmitter
Document preview loads when visible.
Document Details
| FCC ID | HCQ3B6PORUNV |
|---|---|
| Document ID | 699757 |
| Document Type | Block Diagram |
| Description | Block Diagram |
| Document Title | Protel Schematic |
| Applicant | Inovonics Wireless Corporation |
| Equipment Class | Door/Window Transmitter |
| Product Code | 3B6PORUNV |
| Application ID | +/6l9bjaVrsT2OyssSSDeg== |
| Application Purpose | Original Equipment |
| Application Date | 2006-08-31 |
| Frequency Range | 433.92 MHz |
| FRN | 0008498040 |
| Test Firm | SGS TAIWAN LTD. |
| Certified By | Bill Lovell Director Global Sourcing |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2006-08-31 |
| Available | 2006-08-31 |
| Created | 2006-08-10 |
| Modified | 2006-08-10 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 8173 |
| File SHA-256 | 9c2b175df4748280cb9a18d38166c43c50d534ee4e31a250a233ed23c8ba2ae6 |
| PDF Metadata Author | eleuser |
| PDF Metadata Producer | Acrobat Distiller 6.0 (Windows) eleuser |
| FCC.gov Sources | FCC.gov 699757 |
