BISS300 Tag reader Block Diagram - FCC ID HLHBISS300
FCC ID HLHBISS300

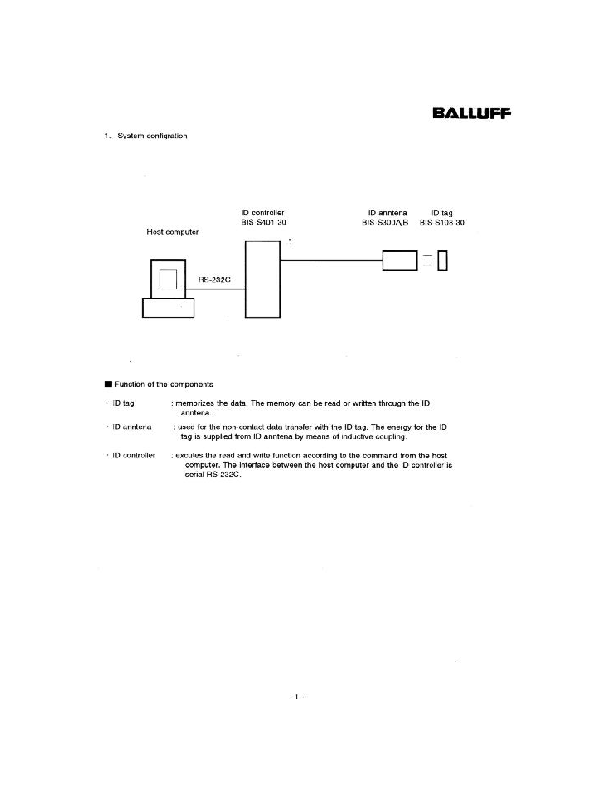

block diagram
Tag reader
by Balluff Inc
Document preview loads when visible.
Document Details
| FCC ID | HLHBISS300 |
|---|---|
| Document ID | 163450 |
| Document Type | Block Diagram |
| Description | block diagram |
| Document Title | 1 |
| Applicant | Balluff Inc |
| Equipment Class | Tag reader |
| Product Code | BISS300 |
| Application ID | yt8QHC9B6glj8/HiZw3AvQ== |
| Application Purpose | Original Equipment |
| Application Date | 2001-08-07 |
| Frequency Range | 0.997-1.003 MHz |
| FRN | 0006334478 |
| Test Firm | Lexmark International, Inc. |
| Certified By | Kent Howard |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2001-08-07 |
| Available | 2001-08-07 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 85237 |
| File SHA-256 | 5b285e2d8faf483ae5d551f3500bf7d21f088d4cdac638f1bbba4c4cb323cb5d |
| PDF Metadata Author | Unknown |
| PDF Metadata Producer | Microsoft Word Acrobat PDFWriter 3.02 for Windows |
| FCC.gov Sources | FCC.gov 163450 |
