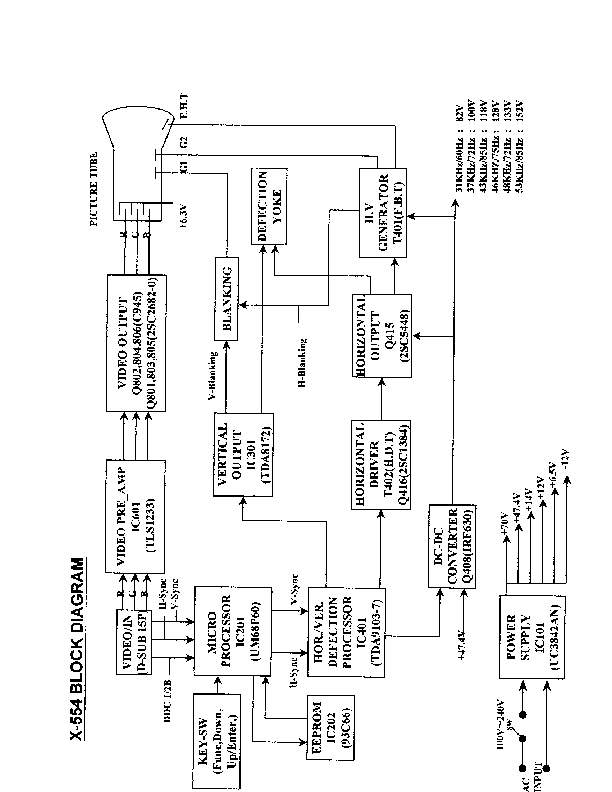

TRLX554 TRLX-554 Block Diagram - FCC ID HSUTRLX-554
FCC ID HSUTRLX-554
4
TRLX-554
Document preview loads when visible.
Document Details
| FCC ID | HSUTRLX-554 |
|---|---|
| Document ID | 72470 |
| Document Type | Block Diagram |
| Description | 4 |
| Document Title | 72470 |
| Applicant | Royal Information Electronics Co Ltd |
| Equipment Class | TRLX-554 |
| Product Code | TRLX554 |
| Application ID | b2jyFaChliNvIqWGjpPnoA== |
| Application Purpose | Original Equipment |
| Application Date | 1998-10-08 |
| FRN | 0003754066 |
| Certified By | Mike Su Project Manager (ADT) |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 1999-11-30 |
| Available | 1998-10-08 |
| Created | 2001-05-16 |
| Modified | 2001-05-17 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 25757 |
| File SHA-256 | be838ff07b74abd8fa6a2ae887ec4f45b89da8e1c8d15b8fab2601003cc12704 |
| PDF Metadata Author | VicodinES /CB /TNN |
| PDF Metadata Producer | Acrobat Distiller 4.0 for Windows |
| FCC.gov Sources | FCC.gov 72470 |
