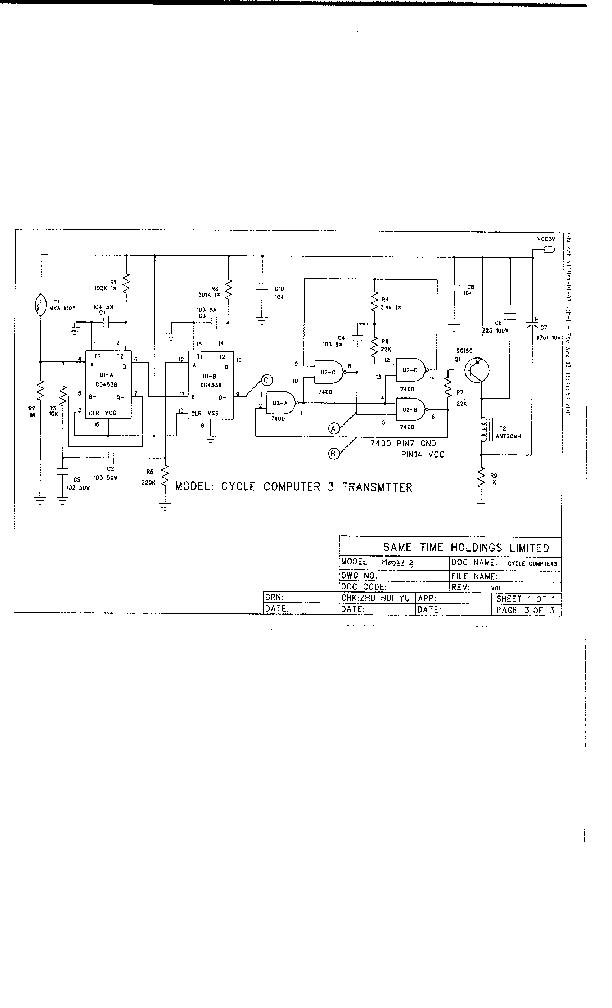

TFA110A Cycle Computer (Transmitter) Schematics - FCC ID HTWTFA110A

FCC ID HTWTFA110A

Schematics

Cycle Computer (Transmitter)

by Same Time Electronics Ltd

Document preview loads when visible.

Document Details

FCC IDHTWTFA110A
Document ID175306
Document TypeSchematics
DescriptionSchematics
ApplicantSame Time Electronics Ltd
Equipment ClassCycle Computer (Transmitter)
Product CodeTFA110A
Application IDQwvcznPL62QDz9lPt/XNxQ==
Application PurposeOriginal Equipment
Application Date2001-10-22
Frequency Range0.018 MHz
FRN9999999999
Test FirmIntertek Testing Services Hong Kong
Certified ByWilson Loke Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2001-10-22
Available2001-10-22
Created2001-10-08
Modified2001-10-08
Pages3
File TypeAdobe Acrobat PDF
File Size215284
File SHA-256e7a4d39b51c07e4a3ff1ed8d29a0497a7b6faf52c9db839ef955a3e737f1ffa5
PDF Metadata ProducerAcrobat 4.0 Scan Plug-in for Windows Acrobat 4.0 Scan Plug-in for Windows
FCC.gov SourcesFCC.gov 175306
