G2022P Active Pen Test Setup Photos - FCC ID HV4-G2022P
FCC ID HV4-G2022P
TSUP BLE
Active Pen
by Wacom Co Ltd
Document preview loads when visible.
Document Details
| FCC ID | HV4-G2022P |
|---|---|
| Document ID | 6149682 |
| Document Type | Test Setup Photos |
| Description | TSUP BLE |

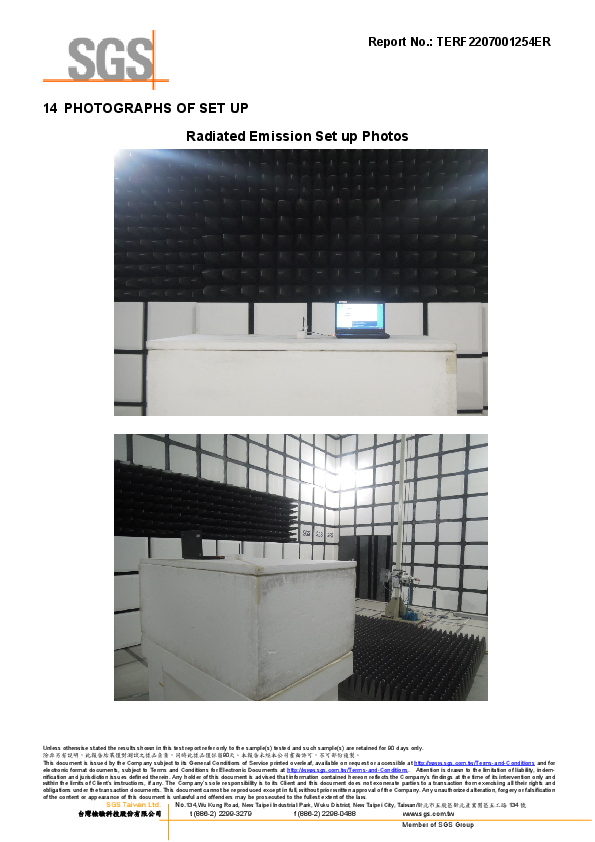

| Document Title | TERF2207001254ER P15.247 BLEx |
| Applicant | Wacom Co Ltd |
| Equipment Class | Active Pen |
| Product Code | G2022P |
| Application ID | VjsEwEmpwzmjWA9TiL1ijA== |
| Application Purpose | Original Equipment |
| Application Date | 2022-10-14 |
| Frequency Range | 2402-2480 MHz |
| FRN | 0005939525 |
| Test Firm | SGS Taiwan Ltd. Central RF Lab |
| Certified By | Koichi Yokoyama Quality Engineering, Quality Assurance |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Short-Term Confidentiality Date | 04/12/2023 |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Submitted | 2022-09-30 |
| Available | 2023-04-12 |
| Created | 2022-09-29 |
| Modified | 2022-09-29 |
| Pages | 4 |
| File Type | Adobe Acrobat PDF |
| File Size | 1718481 |
| File SHA-256 | 8ea173412de7d5222e64e41f34ac930cd8b60c71b0fe9842699887e1635bc9fd |
| PDF Metadata Author | Kate_Lai |
| PDF Metadata Producer | Kate_Lai Acrobat Distiller 20.0 (Windows) |
| FCC.gov Sources | FCC.gov 6149682 |
