DSL5008EN ADSL2+ 4-Ports 150Mbps... - FCC ID I38DSL5008EN

FCC ID I38DSL5008EN

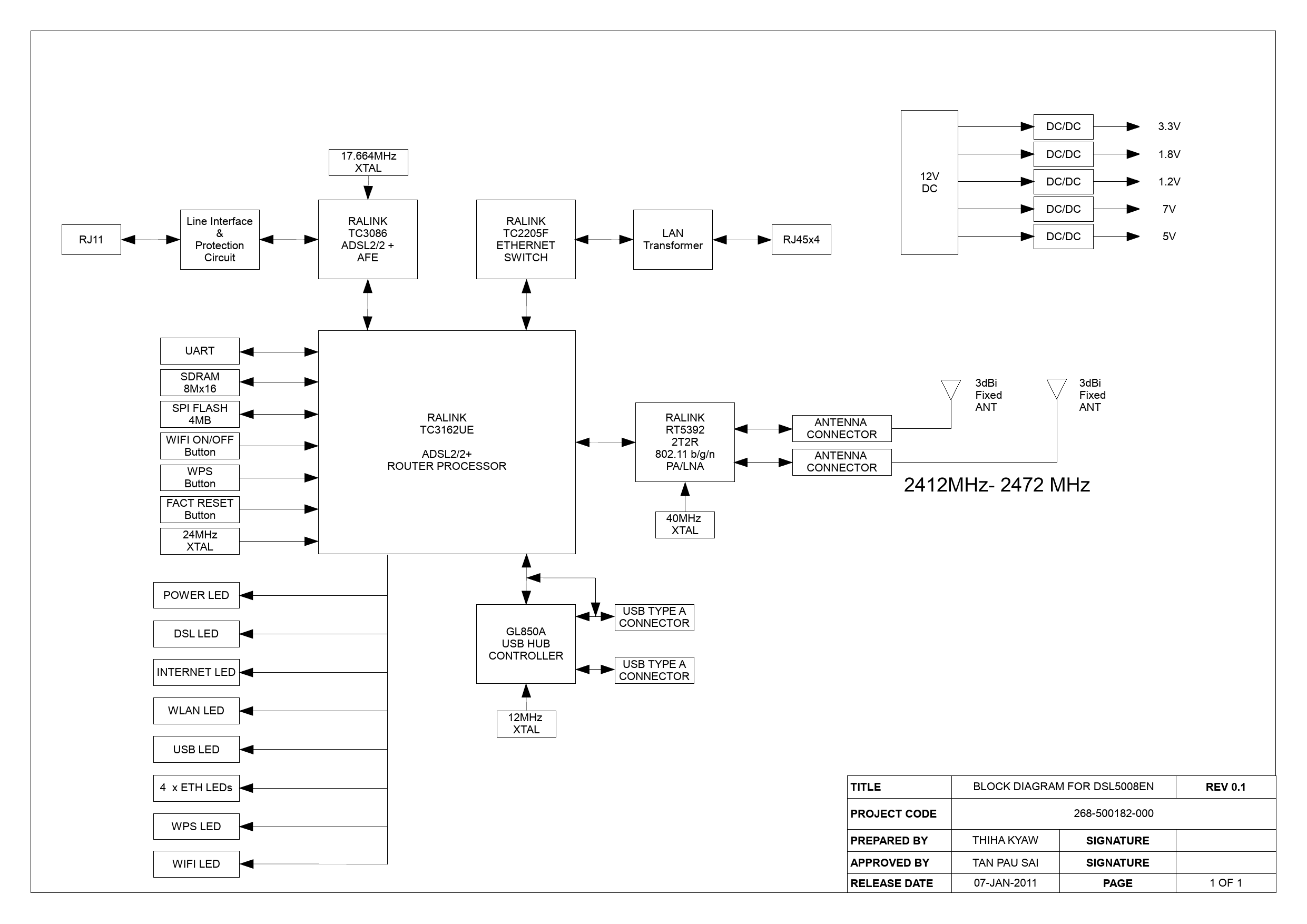

Block Diagram

ADSL2+ 4-Ports 150Mbps Wireless-N Modem Router

by Aztech Technologies Pte Ltd.

Document preview loads when visible.

Document Details

FCC IDI38DSL5008EN
Document ID1440657
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleNone
ApplicantAztech Technologies Pte Ltd.
Equipment ClassADSL2+ 4-Ports 150Mbps Wireless-N Modem Router
Product CodeDSL5008EN
Application IDexs6YpEueHSh1dc8HG+N7w==
Application PurposeOriginal Equipment
Application Date2011-03-31
Frequency Range2412-2462 MHz
FRN0004265807
Test FirmBay Area Compliance Laboratory Corp. (Shenzhen)
Certified ByThiha Kyaw
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2011-03-31
Available2011-03-31
Created2011-03-28
Modified2011-03-29
Pages1
File TypeAdobe Acrobat PDF
File Size50935
File SHA-256b3faff6bd3eda2256f7feeb4ed16ede05660d5e2796be3f49523f979bd634d18
PDF Metadata AuthorNone
PDF Metadata CreatorDraw
PDF Metadata ProducerOpenOffice.org 3.2
FCC.gov SourcesFCC.gov 1440657
