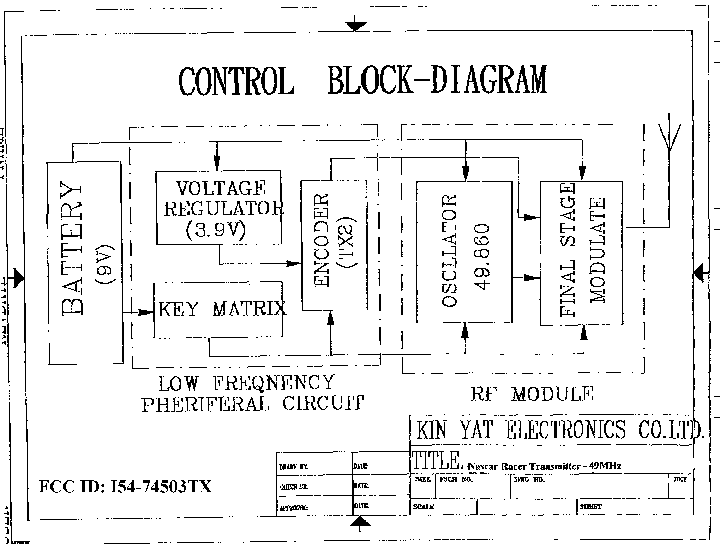

74503TX Toy Remote Control Block Diagram - FCC ID I54-74503TX

FCC ID I54-74503TX

Block diagram

Toy Remote Control

by Tiger Electronics Inc

Document preview loads when visible.

Document Details

FCC IDI54-74503TX
Document ID94723
Document TypeBlock Diagram
DescriptionBlock diagram
Document TitleUnknown
ApplicantTiger Electronics Inc
Equipment ClassToy Remote Control
Product Code74503TX
Application IDJC+/8xWFIZh6ayztUpEwZw==
Application PurposeOriginal Equipment
Application Date2000-04-12
Frequency Range48.82-49.9 MHz
FRN0006061345
Test FirmHong Kong Standards & Testing Cen.
Certified ByPatrick Wong EED Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceYes
Composite PartYes
Submitted2000-04-05
Available2000-04-12
Created2000-04-01
Modified2000-04-01
Pages1
File TypeAdobe Acrobat PDF
File Size45898
File SHA-256f0cfffd6c140d2a9e67f3741a7b3002f17ab6fa60ed0ebe2bd2050fdf1f6a558
PDF Metadata AuthorHKSTC Preferred User
PDF Metadata ProducerAcrobat PDFWriter 3.0 for Windows
FCC.gov SourcesFCC.gov 94723
