MPS4100 Security System Transmitter Schematics - FCC ID I5TMPS4100
FCC ID I5TMPS4100

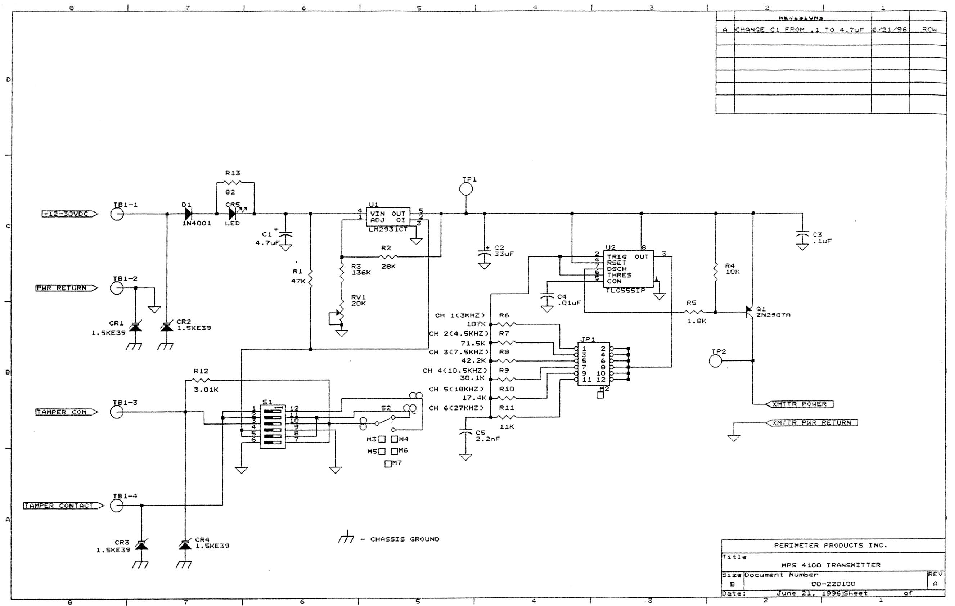

PPI MPS4100 transmitter schematic
Security System Transmitter
Document preview loads when visible.
Document Details
| FCC ID | I5TMPS4100 |
|---|---|
| Document ID | 590247 |
| Document Type | Schematics |
| Description | PPI MPS4100 transmitter schematic |
| Applicant | Senstar Corporation |
| Equipment Class | Security System Transmitter |
| Product Code | MPS4100 |
| Application ID | 02Ouj9hp3Y9o/i35fuxi4Q== |
| Application Purpose | Change in Identification |
| Application Date | 2005-10-11 |
| Frequency Range | 10525 MHz |
| FRN | 0025936824 |
| Test Firm | CKC Laboratories, Inc. |
| Certified By | Andrew McCue Quality Assurance Manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2005-10-11 |
| Available | 2005-10-11 |
| Created | 2005-10-10 |
| Modified | 2005-10-10 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 188572 |
| File SHA-256 | 2be4cbfce35a022044fa47fd129af2942ffd6bfc138a8cfc7bf00daa0e0bcddb |
| PDF Metadata Producer | Adobe Acrobat 6.02 Adobe Acrobat 6.02 Image Conversion Plug-in |
| FCC.gov Sources | FCC.gov 590247 |
