SL23527M RC Toys Block Diagram - FCC ID IAJSL235-27M
FCC ID IAJSL235-27M

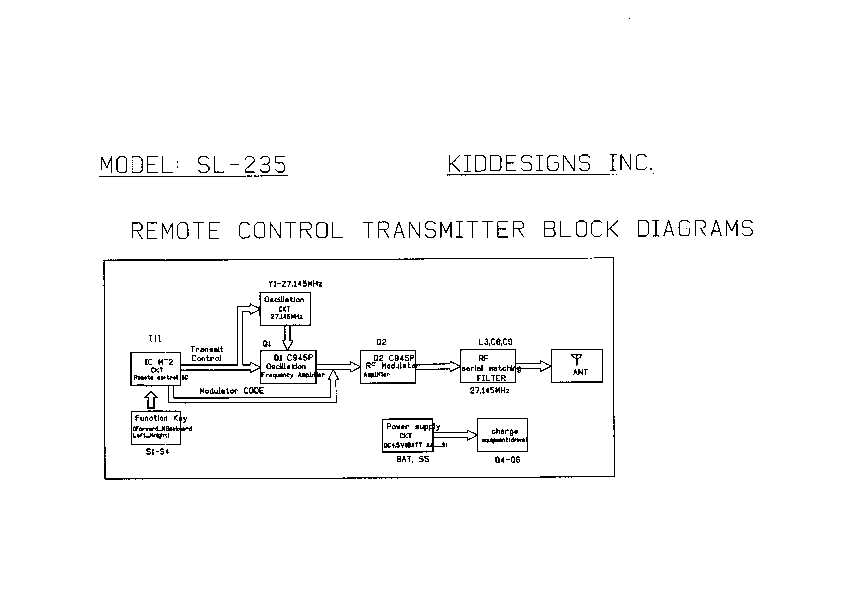

Block Diagram
RC Toys
Document preview loads when visible.
Document Details
| FCC ID | IAJSL235-27M |
|---|---|
| Document ID | 334156 |
| Document Type | Block Diagram |
| Description | Block Diagram |
| Applicant | Kiddesigns Inc |
| Equipment Class | RC Toys |
| Product Code | SL23527M |
| Application ID | azQ6HaIAWPrqMAgJObSU6Q== |
| Application Purpose | Original Equipment |
| Application Date | 2003-06-23 |
| Frequency Range | 27.145 MHz |
| FRN | 0018783340 |
| Test Firm | Intertek Testing Services Hong Kong |
| Certified By | Wilbur Ng Manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2003-06-23 |
| Available | 2003-06-23 |
| Created | 2003-06-13 |
| Modified | 2003-06-13 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 15911 |
| File SHA-256 | 129ee720e03aeb6abb222fc511357f4cc3825d773efd543ed7acb11511861da9 |
| PDF Metadata Author | ITS ELECTRIC TOY |
| PDF Metadata Producer | HP 9100C Digital Sender |
| FCC.gov Sources | FCC.gov 334156 |
