136208 26.96-27.28MHz WIRELESS R/C TOY- TX... - FCC ID IBH136208
FCC ID IBH136208

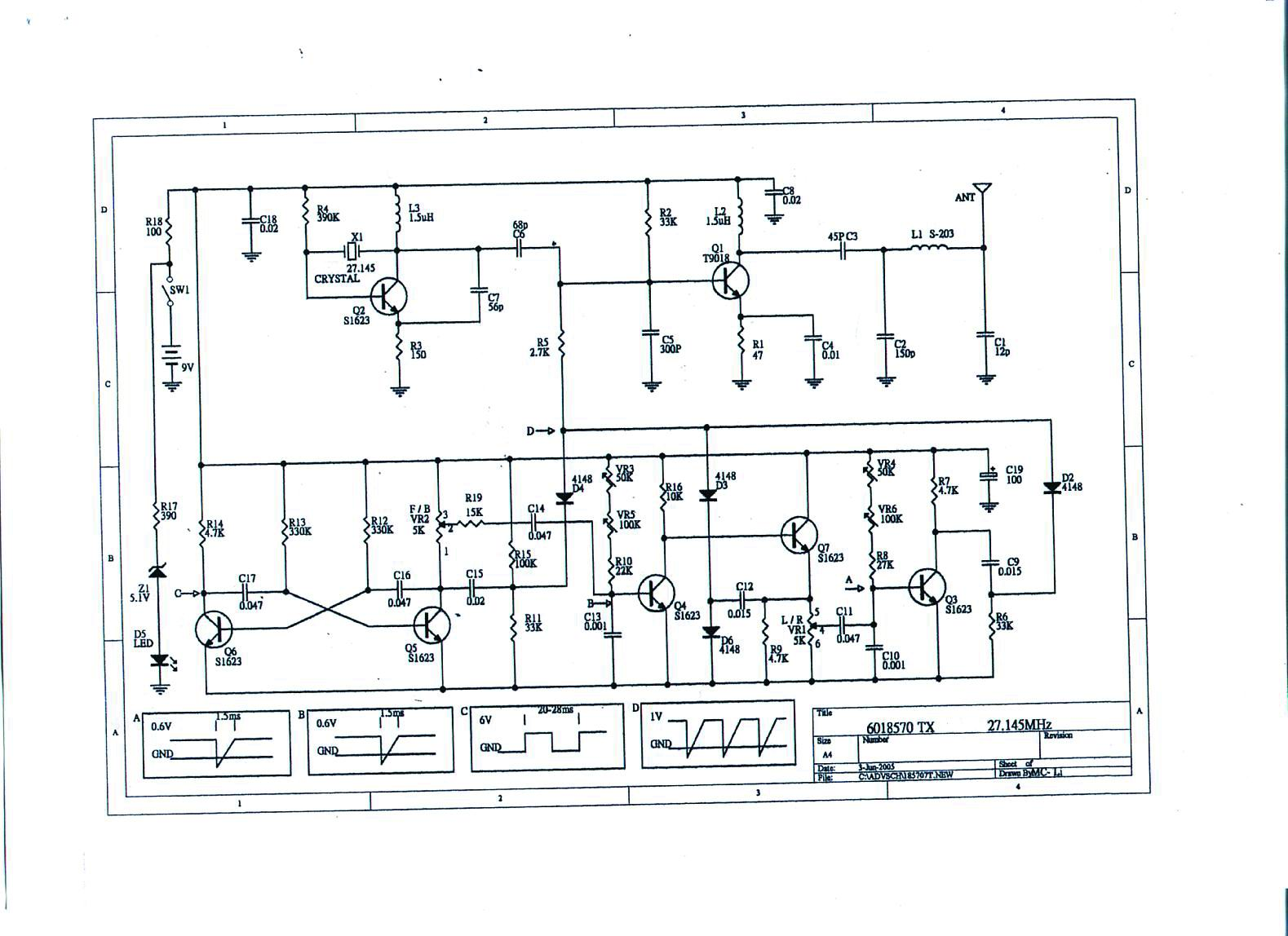

SCHEMATICS
26.96-27.28MHz WIRELESS R/C TOY- TX
Document preview loads when visible.
Document Details
| FCC ID | IBH136208 |
|---|---|
| Document ID | 563650 |
| Document Type | Schematics |
| Description | SCHEMATICS |
| Applicant | Union Concept Co Ltd |
| Equipment Class | 26.96-27.28MHz WIRELESS R/C TOY- TX |
| Product Code | 136208 |
| Application ID | YqoXnYoUCQiu0IXFNIMLXQ== |
| Application Purpose | Original Equipment |
| Application Date | 2005-07-20 |
| Frequency Range | 27.145 MHz |
| FRN | 0011171246 |
| Test Firm | Thru Lab & Engineering |
| Certified By | CHERRY TSE MANAGER |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2005-07-20 |
| Available | 2005-07-20 |
| Created | 2005-07-19 |
| Modified | 2005-07-19 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 179918 |
| File SHA-256 | 1fbec6a9475b246af3af664554b8a41aad1ef47b6a09df676fc10112e09b7efb |
| PDF Metadata Producer | Adobe Acrobat 6.0 Adobe Acrobat 6.0 Image Conversion Plug-in |
| FCC.gov Sources | FCC.gov 563650 |
