0091 49 MHz Walkie-Talkie Transmitter Block... - FCC ID ICK-0091

FCC ID ICK-0091

block diagram

49 MHz Walkie-Talkie Transmitter

by Loyal Technology Co Ltd

Document preview loads when visible.

Document Details

FCC IDICK-0091
Document ID116960
Document TypeBlock Diagram

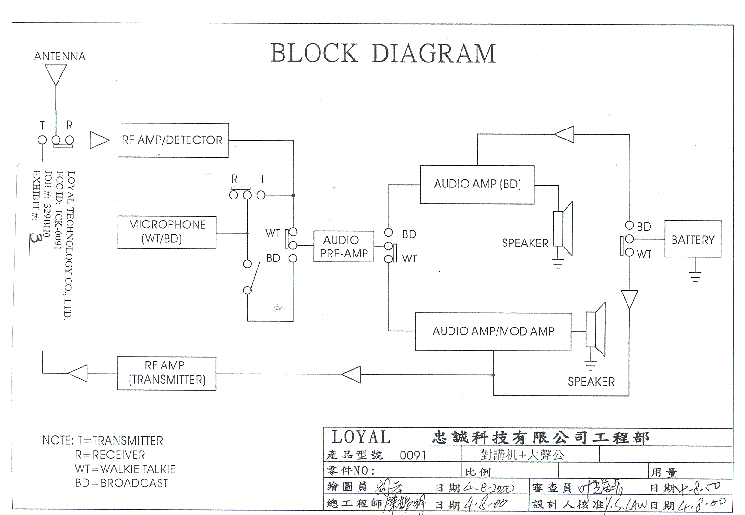

Descriptionblock diagram
ApplicantLoyal Technology Co Ltd
Equipment Class49 MHz Walkie-Talkie Transmitter
Product Code0091
Application IDKnCMaZqErWA7HRv2TJVljw==
Application PurposeOriginal Equipment
Application Date2000-09-13
Frequency Range49.82-49.9 MHz
FRN0006258529
Test FirmTimco Engineering, Inc.
Certified ByY. S. Law Managing Director
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2000-09-13
Available2000-09-13
Created2000-09-12
Modified2000-09-12
Pages1
File TypeAdobe Acrobat PDF
File Size143712
File SHA-256792cc2e6e653c32b4ae4a32e41f13b7656bc3cfe350e911fa484cb1b1b8f389b
PDF Metadata ProducerAcrobat 3.0 Scan Plug-in Acrobat 3.0 Scan Plug-in
FCC.gov SourcesFCC.gov 116960
