T56ED1 Licensed Portable with Bluetooth Test... - FCC ID IHDT56ED1
FCC ID IHDT56ED1
Exhibit 6A Test Setup Photos
Licensed Portable with Bluetooth
Document preview loads when visible.
Document Details
| FCC ID | IHDT56ED1 |
|---|---|
| Document ID | 472003 |
| Document Type | Test Setup Photos |

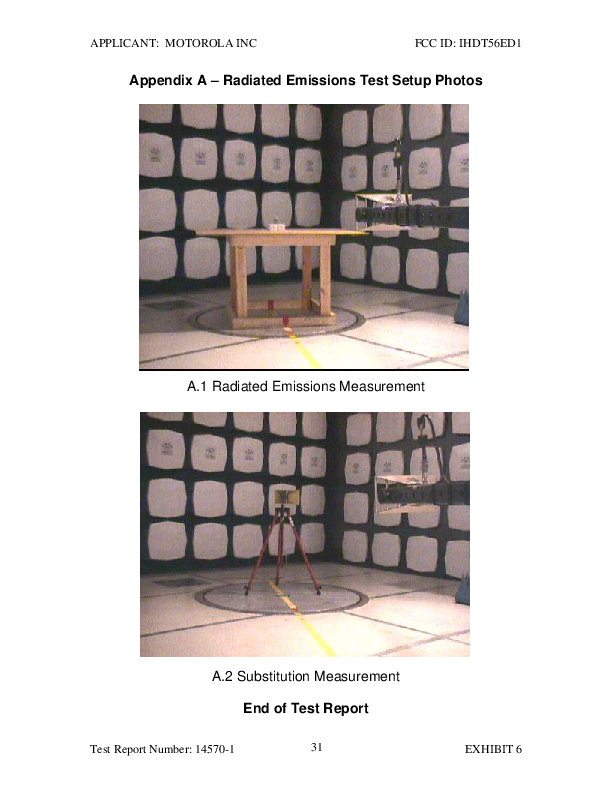

| Description | Exhibit 6A Test Setup Photos |
| Document Title | ED-EX06 |
| Applicant | Motorola Mobility LLC |
| Equipment Class | Licensed Portable with Bluetooth |
| Product Code | T56ED1 |
| Application ID | JkOnPmpc4VsG0trH29/Vpw== |
| Application Purpose | Original Equipment |
| Application Date | 2004-09-23 |
| Frequency Range | 2402-2480 MHz |
| FRN | 0004321311 |
| Test Firm | Motorola Inc. |
| Certified By | Randy Ortanez President |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | Yes |
| Submitted | 2004-09-23 |
| Available | 2004-09-23 |
| Created | 2004-09-23 |
| Modified | 2004-09-23 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 59700 |
| File SHA-256 | 119e40dc2ca4155cdcbcf0b6578a9f452bb0da519cba1ce6b47dde2637b32018 |
| PDF Metadata Producer | Acrobat PDFMaker 6.0 for Word Acrobat Distiller 6.0 (Windows) |
| FCC.gov Sources | FCC.gov 472003 |
