T56NG9 WCDMA/GSM/LTE TRANSCEIVER WITH BT... - FCC ID IHDT56NG9

FCC ID IHDT56NG9

CONDUCTED TEST SETUP PHOTOS

WCDMA/GSM/LTE TRANSCEIVER WITH BT, WLAN, & NFC

by Motorola Mobility LLC

Document preview loads when visible.

Document Details

FCC IDIHDT56NG9
Document ID1769310
Document TypeTest Setup Photos

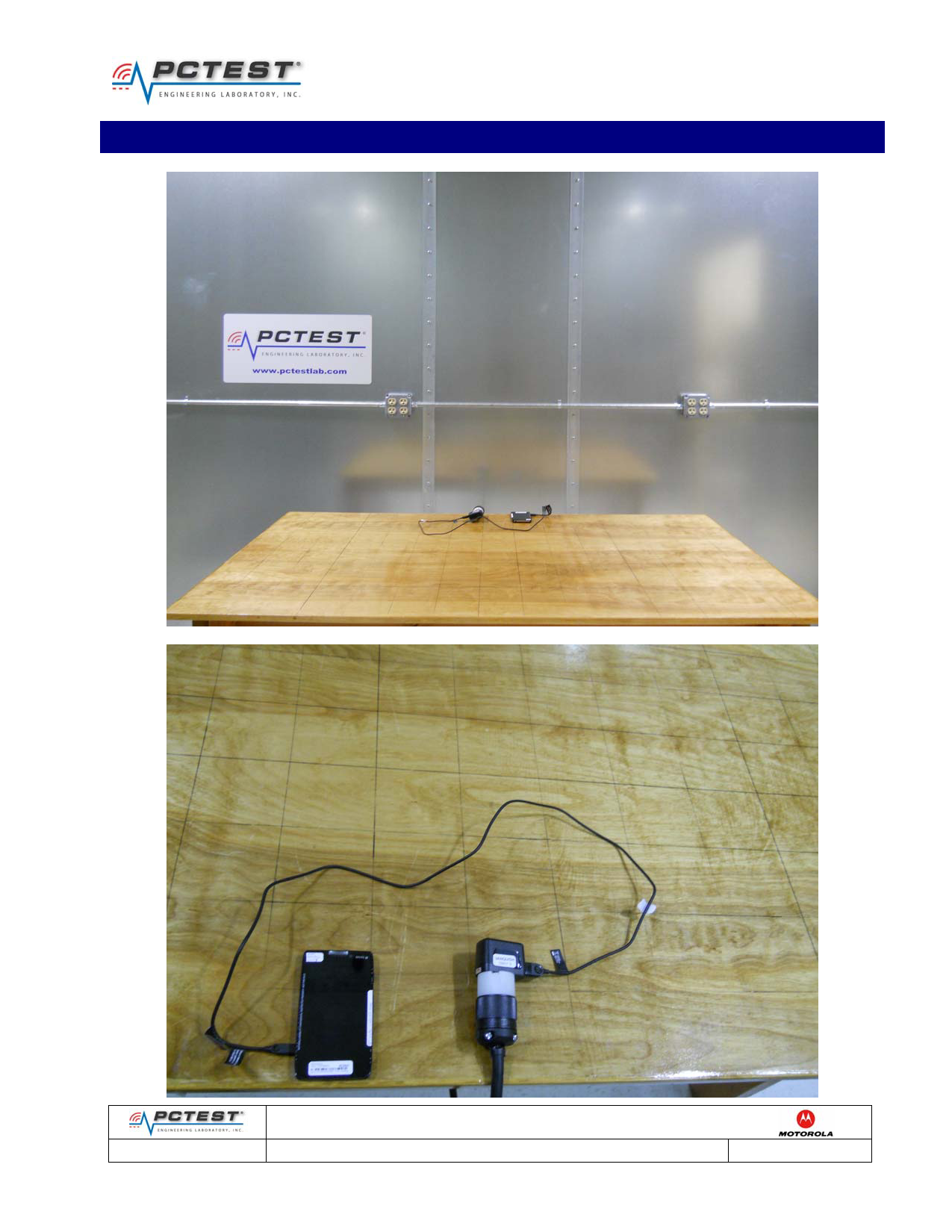

DescriptionCONDUCTED TEST SETUP PHOTOS
Document TitleIHDT56NG9 WLAN-BT AC Line Conducted Test Setup Photos
ApplicantMotorola Mobility LLC
Equipment ClassWCDMA/GSM/LTE TRANSCEIVER WITH BT, WLAN, & NFC
Product CodeT56NG9
Application ID2uZY+qdABQZzaiYbas19qQ==
Application PurposeOriginal Equipment
Application Date2012-08-30
Frequency Range5180-5240 MHz
FRN0004321311
Test FirmMotorola Inc.
Certified ByJohn Lewczak
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Short-Term Confidentiality Date02/13/2013
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceYes
Composite PartNo
Submitted2012-08-17
Available2013-02-13
Created2012-07-25
Modified2012-07-25
Pages1
File TypeAdobe Acrobat PDF
File Size107544
File SHA-256f4443eecd04f359f8e80c3fe7b4073caa1178464b495b88f993cdce785eed072
PDF Metadata Authordan
PDF Metadata CreatorPScript5.dll Version 5.2.2
PDF Metadata ProducerAcrobat Distiller 9.5.1 (Windows)
FCC.gov SourcesFCC.gov 1769310
