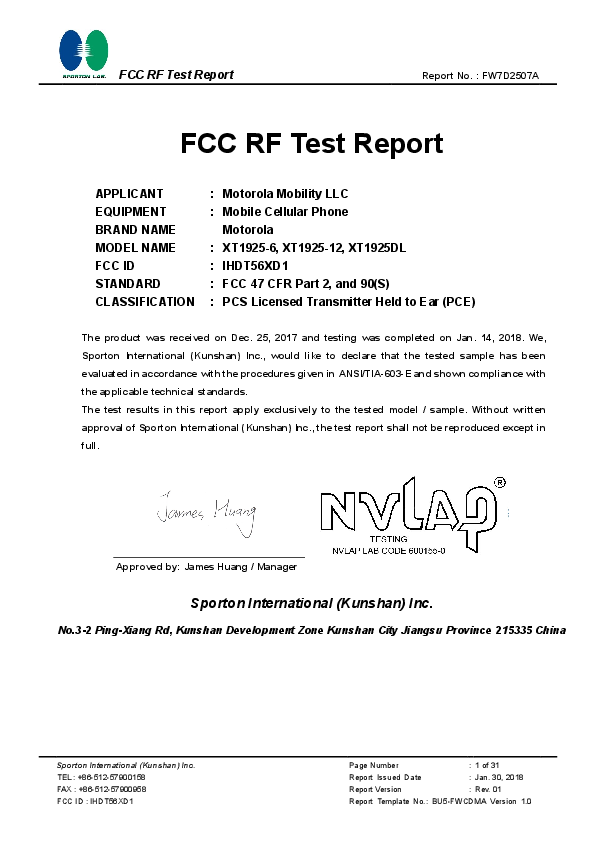

FCC RF Test Report
Report No. : FW7D2507A
FCC RF Test Report
APPLICANT
EQUIPMENT
BRAND NAME
MODEL NAME
FCC ID
: Motorola Mobility LLC
: Mobile Cellular Phone
Motorola
: XT1925-6, XT1925-12, XT1925DL
: IHDT56XD1
STANDARD
CLASSIFICATION
: FCC 47 CFR Part 2, and 90(S)
: PCS Licensed Transmitter Held to Ear (PCE)
The product was received on Dec. 25, 2017 and testing was completed on Jan. 14, 2018. We,
Sporton International (Kunshan) Inc., would like to declare that the tested sample has been
evaluated in accordance with the procedures given in ANSI/TIA-603-E and shown compliance with
the applicable technical standards.
The test results in this report apply exclusively to the tested model / sample. Without written
approval of Sporton International (Kunshan) Inc., the test report shall not be reproduced except in
full.
Approved by: James Huang / Manager
Sporton International (Kunshan) Inc.
No.3-2 Ping-Xiang Rd, Kunshan Development Zone Kunshan City Jiangsu Province 215335 China
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
Page Number
: 1 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
Report No. : FW7D2507A
TABLE OF CONTENTS
REVISION HISTORY.......................................................................................................................................... 3
SUMMARY OF TEST RESULT ......................................................................................................................... 4
GENERAL DESCRIPTION .......................................................................................................................... 5
1.1.
1.2.
1.3.
1.4.
1.5.
1.6.
1.7.
1.8.
1.9.
TEST CONFIGURATION OF EQUIPMENT UNDER TEST ...................................................................... 10
2.1
2.2
2.3
2.4
Applicant ............................................................................................................................................ 5
Manufacturer ..................................................................................................................................... 5
Feature of Equipment Under Test ..................................................................................................... 5
Product Specification of Equipment Under Test ............................................................................... 6
Specification of Accessory ................................................................................................................ 7
Modification of EUT ........................................................................................................................... 8
Maximum Frequency Tolerance, Emission Designator and Conducted Power ................................ 8
Testing Site........................................................................................................................................ 8
Applied Standards ............................................................................................................................. 9
Test Mode........................................................................................................................................ 10
Connection Diagram of Test System .............................................................................................. 10
Support Unit used in test configuration and system ........................................................................ 10
Measurement Results Explanation Example .................................................................................. 11
TEST RESULT ........................................................................................................................................... 12
3.1
3.2
3.3
3.4
3.5
3.6
Conducted Output Power Measurement ......................................................................................... 12
99% Occupied Bandwidth and 26dB Bandwidth Measurement...................................................... 14
Emissions Mask Measurement ....................................................................................................... 19
Emissions Mask – Out Of Band Emissions Measurement .............................................................. 21
Field Strength of Spurious Radiation Measurement ....................................................................... 24
Frequency Stability Measurement ................................................................................................... 27
LIST OF MEASURING EQUIPMENT ........................................................................................................ 30
UNCERTAINTY OF EVALUATION ........................................................................................................... 31
APPENDIX A. SETUP PHOTOGRAPHS
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
Page Number
: 2 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
Report No. : FW7D2507A
REVISION HISTORY
REPORT NO.
VERSION
FW7D2507A
Rev. 01
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
DESCRIPTION
Initial issue of report
ISSUED DATE
Jan. 30, 2018
Page Number
: 3 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
Report No. : FW7D2507A
SUMMARY OF TEST RESULT
Report
Section
3.1
3.2
3.3
3.4
3.5
3.6
FCC Rule
Description
Limit
Result
Remark
§2.1046
Conducted Output Power
Reporting only
PASS
§2.1049
99% Occupied Bandwidth
§90.209
and 26dB Bandwidth
Reporting only
PASS
§2.1051
Emission masks –
§90.691
In-band emissions
< 50+10log10(P[Watts])
PASS
§2.1051
Emission masks –
§90.691
Out of band emissions
< 43+10log10(P[Watts])
PASS
§2.1053
Field Strength of Spurious
§90.691
Radiation
§2.1055
Frequency Stability for
Temperature & Voltage
§90.213
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
Under limit
< 43+10log10(P[Watts])
PASS
32.42 dB at
1640.000 MHz
< 2.5 ppm
PASS
Page Number
: 4 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
Report No. : FW7D2507A
General Description
1.1. Applicant
Motorola Mobility LLC
222 W, Merchandise Mart Plaza, Chicago IL 60654 USA
1.2. Manufacturer
Motorola Mobility LLC
222 W, Merchandise Mart Plaza, Chicago IL 60654 USA
1.3. Feature of Equipment Under Test
Product Feature & Specification
Equipment
Brand Name
Model Name
FCC ID
EUT supports Radios application
IMEI Code
HW Version
SW Version
EUT Stage
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
Mobile Cellular Phone
Motorola
XT1925-6, XT1925-12, XT1925DL
IHDT56XD1
CDMA/EV-DO/GSM/GPRS/EGPRS/WCDMA/HSPA/
HSPA+(Uplink is not supported)/DC-HSDPA/LTE/
WLAN 2.4GHz 802.11b/g/n HT20/
WLAN 5GHz 802.11a/n HT20/HT40
Bluetooth v3.0 + EDR/Bluetooth v4.0 LE/
Bluetooth v4.1 LE/Bluetooth v4.2 LE
Conducted: 351849090020632
Radiation: 351889090007198
DVT1B
ali_n-userdebug 8.0.0 OPS27.55 1276 intcfg,test-keys
Identical Prototype
Page Number
: 5 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
Report No. : FW7D2507A
1.4. Product Specification of Equipment Under Test
Product Specification subjective to this standard
Tx Frequency
Rx Frequency
Maximum Output Power to Antenna
Antenna Type
Type of Modulation
CDMA2000 BC10 : 817.9 MHz ~ 823.1 MHz
CDMA2000 BC10 : 862.9 MHz ~ 868.1 MHz
CDMA2000 BC10 : 24.47 dBm
PIFA Antenna
CDMA2000 1xRTT : QPSK
CDMA2000 1xEV-DO : QPSK/8PSK
Remark: This test report recorded only product characteristics and test results of PCS Licensed Transmitter
Held to Ear (PCE).
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
Page Number
: 6 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
1.5.
Report No. : FW7D2507A
Specification of Accessory
Specification of Accessory
Model Name
Brand Name
Motorola (Salom)
SC-22
Power Rating
I/P: 100-240 Vac, 500mA, O/P: 5Vdc,3000mA or 9Vdc,1600mA or 12Vdc,1200mA
Brand Name
Motorola (Salom)
Power Rating
I/P: 100-240 Vac, 500mA, O/P: 5Vdc,3000mA or 9Vdc,1600mA or 12Vdc,1200mA
Brand Name
Motorola (Salom)
Power Rating
I/P: 100-240 Vac, 500mA, O/P: 5Vdc,3000mA or 9Vdc,1600mA or 12Vdc,1200mA
Brand Name
Motorola (Salom)
Power Rating
I/P: 100-240 Vac, 500mA, O/P: 5Vdc,3000mA or 9Vdc,1600mA or 12Vdc,1200mA
Brand Name
Motorola (Salom)
Power Rating
I/P: 100-240 Vac, 500mA, O/P: 5Vdc,3000mA or 9Vdc,1600mA or 12Vdc,1200mA
Brand Name
Motorola (Chenyang)
Power Rating
I/P: 100-240 Vac, 500mA, O/P: 5Vdc,3000mA or 9Vdc,1600mA or 12Vdc,1200mA
Brand Name
Motorola (Chenyang)
Power Rating
I/P: 100-240 Vac, 500mA, O/P: 5Vdc,3000mA or 9Vdc,1600mA or 12Vdc,1200mA
Brand Name
Motorola (Chenyang)
Power Rating
I/P: 100-240 Vac, 500mA, O/P: 5Vdc,3000mA or 9Vdc,1600mA or 12Vdc,1200mA
Brand Name
Motorola (Chenyang)
Power Rating
I/P: 100-240 Vac, 500mA, O/P: 5Vdc,3000mA or 9Vdc,1600mA or 12Vdc,1200mA
Brand Name
Motorola (Chenyang)
Power Rating
I/P: 100-240 Vac, 500mA, O/P: 5Vdc,3000mA or 9Vdc,1600mA or 12Vdc,1200mA
Brand Name
Motorola (ATL)
Model Name
HG30
Power Rating
3.8Vdc,3000mAh
Type
Li-ion
Brand Name
Motorola (Jiahe)
Model Name
LS-118M-12
AC Adapter 1(US)
Model Name
SC-23
AC Adapter 1(EU)
Model Name
SC-24
AC Adapter 1(UK)
Model Name
SC-25
AC Adapter 1(IN)
Model Name
SC-26
AC Adapter 1(AU)
Model Name
SC-22
AC Adapter 2(US)
Model Name
SC-23
AC Adapter 2(EU)
Model Name
SC-24
AC Adapter 2(UK)
Model Name
SC-25
AC Adapter 2(IN)
Model Name
SC-26
AC Adapter 2(AU)
Battery
Earphone 1
Signal Line Type 1.2 meter, non-shielded cable, without ferrite core
Brand Name
Motorola (Lianyun)
Model Name
TS910A-38AMS01WHR-M
Earphone 2
Signal Line Type 1.2 meter, non-shielded cable, without ferrite core
Brand Name
Motorola (Liqi)
Model Name
L32B-053000100-ALL
USB Cable
Signal Line Type 1.0 meter, shielded cable, without ferrite core
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
Page Number
: 7 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
Report No. : FW7D2507A
1.6. Modification of EUT
No modifications are made to the EUT during all test items.
1.7. Maximum Frequency Tolerance, Emission Designator and Conducted
Power
FCC Rule
Part 90S
Type of
System
Modulation
CDMA2000 BC10 1xRTT
QPSK
Frequency
Tolerance
(ppm)
0.0280 ppm
Emission
Designator
Maximum
Conducted
power(W)
1M27F9W
0.2799
1.8. Testing Site
Sporton International (Kunshan) Inc. is accredited to ISO 17025 by National Voluntary Laboratory
Accreditation Program (NVLAP code: 600155-0) and the FCC designation No. is CN5013.
Test Site
Sporton International (Kunshan) Inc.
No.3-2 Ping-Xiang Rd, Kunshan Development Zone Kunshan City Jiangsu
Test Site Location
Province 215335 China
TEL : +86-512-57900158
FAX : +86-512-57900958
Test Site No.
FCC Test Firm
Sporton Site No.
TH01-KS
Registration No.
03CH03-KS
630927
Note: The test site complies with ANSI C63.4 2014 requirement.
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
Page Number
: 8 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
Report No. : FW7D2507A
1.9. Applied Standards
According to the specifications of the manufacturer, the EUT must comply with the requirements of the
following standards:

FCC 47 CFR Part 2, 90

ANSI/TIA-603-E
Remark:
1.
All test items were verified and recorded according to the standards and without any deviation during the
test.
2.
This EUT has also been tested and complied with the requirements of FCC Part 15, Subpart B, recorded
in a separate test report.
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
Page Number
: 9 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
2.1
Report No. : FW7D2507A
Test Configuration of Equipment Under Test
Test Mode
During all testing, EUT is in link mode with base station emulator at maximum power level. The spurious
emission measurements were carried out in semi-anechoic chamber with 3-meter test range, and EUT is
rotated on three test planes to find out the worst emission.
th
Frequency range investigated for radiated emission: 30MHz to 10 harmonic.
Test Modes
Band
CDMA2000 BC10
Radiated TCs
Conducted TCs
 1xRTT Link
 1xRTT Link
Note: The maximum RF output power levels are 1xRTT RC1 SO55 mode for CDMA2000 BC10 on QPSK
Link; only these modes were used for all tests.
2.2
Connection Diagram of Test System
120 Vac / 60 Hz
EUT(Adapter)
EUT(USB Cable)
Dipole Antenna
EUT
EUT(Earphone)
System Simulator
2.3
Support Unit used in test configuration and system
Item Equipment
Trade Name
Model No.
FCC ID Data Cable
Power Cord
1.
System Simulator Anritsu
MT8820C
N/A
N/A
Unshielded, 1.8m
2.
DC Power Supply GW INSTEK
GPS-3030D N/A
N/A
Unshielded, 1.8 m
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
Page Number
: 10 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
2.4
Report No. : FW7D2507A
Measurement Results Explanation Example
For all conducted test items:
The offset level is set in the spectrum analyzer to compensate the RF cable loss and attenuator factor
between EUT conducted output port and spectrum analyzer. With the offset compensation, the spectrum
analyzer reading level is exactly the EUT RF output level.
Example:
The spectrum analyzer offset is derived from RF cable loss and attenuator factor.
Offset = RF cable loss + attenuator factor.
Following shows an offset computation example with cable loss 4.4 dB and 10dB attenuator.
Offset (dB) = RF cable loss (dB) + attenuator factor (dB).
= 4.4 + 10 = 14.4 (dB)
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
Page Number
: 11 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
Report No. : FW7D2507A
Test Result
3.1
Conducted Output Power Measurement
3.1.1
Description of the Conducted Output Power Measurement
A base station simulator was used to establish communication with the EUT. Its parameters were set to
transmit the maximum power on the EUT. The measured power in the radio frequency on the transmitter
output terminals shall be reported.
3.1.2
Measuring Instruments
The measuring equipment is listed in the section 4 of this test report.
3.1.3
3.1.4
Test Procedures
1.
The transmitter output port was connected to base station.
2.
Set EUT at maximum power through base station.
3.
Select lowest, middle, and highest channels for each band and different modulation.
Test Setup
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
Page Number
: 12 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
3.1.5
Report No. : FW7D2507A
Test Result of Conducted Output Power
Band
Channel
Frequency
Conducted Power (*Unit: dBm)
CDMA2000 BC10
476
580
817.9
820.5
684
823.1
1xRTT RC1+SO55
24.41
24.47
24.35
1xRTT RC3+SO55
24.37
24.41
24.38
1xRTT RC3 SO32(+ F-SCH)
24.38
24.40
24.37
1xRTT RC3 SO32 (+SCH)
24.31
24.34
24.29
1xEVDO RTAP 153.6Kbps
24.32
24.35
24.31
1xEVDO RETAP 4096Bits
24.25
24.41
24.28
Note: Maximum burst average power for CDMA.
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
Page Number
: 13 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
Report No. : FW7D2507A
3.2
99% Occupied Bandwidth and 26dB Bandwidth Measurement
3.2.1
Description of (Occupied) Bandwidth Limitations Measurement
The 99% occupied bandwidth is the width of a frequency band such that, below the lower and above the
upper frequency limits, the mean powers emitted are each equal to a specified percentage 0.5% of the total
mean transmitted power.
The emission bandwidth is defined as the width of the signal between two points, located at the 2 sides of
the carrier frequency, outside of which all emissions are attenuated at least 26 dB below the transmitter
power.
3.2.2
Measuring Instruments
The measuring equipment is listed in the section 4 of this test report.
3.2.3
Test Procedures
1.
The EUT was connected to Spectrum Analyzer and Base Station via power divider.
2.
The 99% and 26 dB occupied bandwidth (BW) of the middle channel for the highest RF powers were
measured.
3.2.4
Test Setup
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
Page Number
: 14 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
3.2.5
Report No. : FW7D2507A
Test Result of 99% Occupied Bandwidth and 26dB Bandwidth
CDMA2000 BC10
Test Mode
CDMA 2000 1xRTT
Test Status
RC1 SO55
Channel
476 (Low)
580 (Mid)
684 (High)
Frequency (MHz)
817.9
820.5
823.1
99% OBW (MHz)
1.27
1.27
1.27
26dB BW (MHz)
1.42
1.42
1.43
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
Page Number
: 15 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
3.2.6
Report No. : FW7D2507A
Test Result (Plots) of 99% Occupied Bandwidth and 26dB Bandwidth
Band :
CDMA2000 BC 10
Test Mode :
1xRTT
99% Occupied Bandwidth Plot on Channel 476 (817.9MHz)
26dB Bandwidth Plot on Channel 476 (817.9MHz)
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
Page Number
: 16 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
Report No. : FW7D2507A
99% Occupied Bandwidth Plot on Channel 580 (820.5MHz)
26dB Bandwidth Plot on Channel 580 (820.5MHz)
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
Page Number
: 17 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
Report No. : FW7D2507A
99% Occupied Bandwidth Plot on Channel 684 (823.1MHz)
26dB Bandwidth Plot on Channel 684 (823.1MHz)
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
Page Number
: 18 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
Report No. : FW7D2507A
3.3
Emissions Mask Measurement
3.3.1
Description of Emissions Mask Measurement
Equipment used in this licensed to EA or non-EA systems shall comply with the emission mask provisions of FCC Part
90.691.(a)(1)
3.3.2
Measuring Instruments
The measuring equipment is listed in the section 4 of this test report.
3.3.3
Test Procedures
1.
The EUT was connected to spectrum analyzer and base station via power divider.
2.
The emissions mask of low and high channels for the highest RF powers were measured.
3.
The RBW was set 1% of 99% Occupied Bandwidth, and VBW was set 3 times of RBW.
4.
The final test results were shown below plots with a correction offset factor including cable loss,
insertion loss of power divider.
3.3.4
Test Setup
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
Page Number
: 19 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
3.3.5
Report No. : FW7D2507A
Test Result (Plots) of Conducted Emissions Mask
Band :
CDMA2000 BC10
Test Mode : 1xRTT
Lower Band Edge Plot on Channel 476 (817.9MHz)
Higher Band Edge Plot on Channel 684 (823.1MHz)
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
Page Number
: 20 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
Report No. : FW7D2507A
3.4
Emissions Mask – Out Of Band Emissions Measurement
3.4.1
Description of Conducted Emissions Out of band emissions measurement
The power of any emission FCC Part 90.691 (a)(2) on any frequency removed from the assigned frequency
by more than 250 percent of the authorized bandwidth at least 43 + 10 log (P) dB. It is measured by means of
th
a calibrated spectrum analyzer and scanned from 30MHz up to a frequency including its 10 harmonic.
3.4.2
Measuring Instruments
The measuring equipment is listed in the section 4 of this test report.
3.4.3
Test Procedures
1.
The EUT was connected to spectrum analyzer and base station via power divider.
2.
The middle channel for the highest RF power within the transmitting frequency was measured.
3.
The conducted spurious emission for the whole frequency range was taken.
4.
The final test results were shown below plots with a correction offset factor including cable loss,
insertion loss of power divider.
3.4.4
Test Setup
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
Page Number
: 21 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
3.4.5
Report No. : FW7D2507A
Test Result (Plots) of Conducted Emission
Band :
CDMA2000 BC10
Test Mode :
1xRTT
Conducted Emission Plot between on Channel 476 (817.9MHz)
Conducted Emission Plot between on Channel 580 (820.5MHz)
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
Page Number
: 22 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
Report No. : FW7D2507A
Conducted Emission Plot between on Channel 684 (823.1MHz)
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
Page Number
: 23 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
Report No. : FW7D2507A
3.5
Field Strength of Spurious Radiation Measurement
3.5.1
Description of Field Strength of Spurious Radiated Measurement
The radiated spurious emission was measured by substitution method according to ANSI/TIA-603-E. The
power of any emission FCC Part 90.691 on any frequency removed from the assigned frequency by more
than 250 percent of the authorized bandwidth at least 43 + 10 log (P) dB. The spectrum is scanned from 30
MHz up to a frequency including its 10th harmonic.
The power of any emission outside of the authorized operating frequency ranges must be attenuated below
the transmitter power (P) by a factor of at least 43+10log10(P[Watts]) dB. The spectrum is scanned from 30
MHz up to a frequency including its 10th harmonic.
3.5.2
Measuring Instruments
The measuring equipment is listed in the section 4 of this test report.
3.5.3
Test Procedures
1.
The EUT was placed on a rotatable wooden table 0.8 meters for frequency below 1GHz and 1.5 meter
for frequency above 1GHz above the ground.
2.
The EUT was set 3 meters from the receiving antenna, which was mounted on the antenna tower.
3.
The table was rotated 360 degrees to determine the position of the highest spurious emission.
4.
The height of the receiving antenna is varied between one meter and four meters to search the
maximum spurious emission for both horizontal and vertical polarizations.
5.
Make the measurement with the spectrum analyzer's RBW = 1MHz, VBW = 3MHz, Sweep = 500ms,
Taking the record of maximum spurious emission.
6.
A horn antenna was substituted in place of the EUT and was driven by a signal generator.
7.
Tune the output power of signal generator to the same emission level with EUT maximum spurious
emission.
8.
Taking the record of output power at antenna port.
9.
Repeat step 7 to step 8 for another polarization.
10.
EIRP (dBm) = S.G. Power – Tx Cable Loss + Tx Antenna Gain
11.
ERP (dBm) = EIRP - 2.15
12.
The RF fundamental frequency should be excluded against the limit line in the operating frequency
band.
13.
The limit line is derived from 43 + 10log(P) dB below the transmitter power P(Watts)
= P(W) - [43 + 10log(P)] (dB)
= [30 + 10log(P)] (dBm) - [43 + 10log(P)] (dB)
= -13dBm.
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
Page Number
: 24 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
3.5.4
Report No. : FW7D2507A
Test Setup
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
Page Number
: 25 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
3.5.5
Report No. : FW7D2507A
Test Result of Field Strength of Spurious Radiated
Band :
CDMA2000 BC10
Temperature :
Test Mode :
1xRTT
Relative Humidity : 41~43%
Test Engineer : Genry Long
Remark :
Polarization :
21~23°C
Horizontal
Spurious emissions within 30-1000MHz were found more than 20dB below limit line.
Frequency
ERP
( MHz )
1640
2462
3282
( dBm )
-45.47
-55.88
-62.01
Limit
Over
Limit
( dBm ) ( dB )
-13
-32.47
-13
-42.88
-13
-49.01
SPA
Reading
(dBm)
-48.33
-60.18
-66.13
S.G.
Power
( dBm )
-47.38
-58.51
-65.22
TX Cable
loss
( dB )
1.14
1.12
1.34
TX Antenna Polarization Result
Gain
(dBi)
(H/V)
5.20
Pass
5.90
Pass
6.70
Pass
Band :
CDMA2000 BC10
Temperature :
Test Mode :
1xRTT
Relative Humidity : 41~43%
Test Engineer : Genry Long
Remark :
Polarization :
21~23°C
Vertical
Spurious emissions within 30-1000MHz were found more than 20dB below limit line.
Frequency
ERP
( MHz )
1640
2462
3282
( dBm )
-45.42
-58.60
-61.14
Limit
Over
Limit
( dBm ) ( dB )
-13
-32.42
-13
-45.60
-13
-48.14
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
SPA
Reading
(dBm)
-47.09
-61.67
-66.28
S.G.
Power
( dBm )
-47.33
-61.23
-64.35
TX Cable
loss
( dB )
1.14
1.12
1.34
TX Antenna Polarization Result
Gain
(dBi)
(H/V)
5.20
Pass
5.90
Pass
6.70
Pass
Page Number
: 26 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
Report No. : FW7D2507A
3.6
Frequency Stability Measurement
3.6.1
Description of Frequency Stability Measurement
The frequency stability shall be measured by variation of ambient temperature and variation of primary
supply voltage to ensure that the fundamental emission stays within the authorized frequency block. The
frequency stability of the transmitter shall be maintained within ±0.00025% (±2.5ppm) of the center
frequency according to FCC Part 90.213.
3.6.2
Measuring Instruments
The measuring equipment is listed in the section 4 of this test report.
3.6.3
Test Procedures for Temperature Variation
1.
The EUT was set up in the thermal chamber and connected with the base station.
2.
With power OFF, the temperature was decreased to -30°C and the EUT was stabilized for three hours.
Power was applied and the maximum change in frequency was recorded within one minute.
3.
With power OFF, the temperature was raised in 10°C step up to 50°C. The EUT was stabilized at
each step for at least half an hour. Power was applied and the maximum frequency change was
recorded within one minute.
3.6.4
Test Procedures for Voltage Variation
1.
The EUT was placed in a temperature chamber at 25±5°C and connected with the base station.
2.
The power supply voltage to the EUT was varied from BEP to 115% of the nominal value measured at
3.
The variation in frequency was measured for the worst case.
the input to the EUT.
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
Page Number
: 27 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
3.6.5
Report No. : FW7D2507A
Test Setup
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
Page Number
: 28 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
3.6.6
Report No. : FW7D2507A
Test Result of Temperature Variation
Test Conditions
Middle Channel
Temperature (°C)
Voltage (Volt)
CDMA BC10
(1xRTT)
Deviation (ppm)
50
Normal Voltage
0.0183
40
Normal Voltage
0.0073
30
Normal Voltage
0.0280
20(Ref.)
Normal Voltage
0.0000
10
Normal Voltage
0.0024
Normal Voltage
0.0049
-10
Normal Voltage
0.0061
-20
Normal Voltage
0.0171
-30
Normal Voltage
0.0085
20
Maximum Voltage
0.0232
20
Normal Voltage
0.0012
20
Battery End Point
0.0037
Limit
2.5ppm
Result
Note: Normal Voltage = 3.8V. ;Battery End Point (BEP) = 3.4 V.;Maximum Voltage =4.35 V
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
Page Number
: 29 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
PASS
FCC RF Test Report
Report No. : FW7D2507A
List of Measuring Equipment
Instrument
Spectrum
Analyzer
Manufacturer Model No.
Serial No.
Characteristics
Calibration
Date
Test Date
Due Date
Remark
R&S
FSV40
101040
10Hz~40GHz
Aug. 08, 2017 Jan. 07, 2018 Aug. 07, 2018
Conducted
(TH01-KS)
Anritsu
MT8820C
6201300652
2G/3G/LTE_ full
band
Aug. 08, 2017 Jan. 07, 2018 Aug. 07, 2018
Conducted
(TH01-KS)
Ten Billion
TTC-B3S
TBN-960502
-40~+150°C
Oct. 12, 2017
Jan. 07, 2018
Oct. 11, 2018
Conducted
(TH01-KS)
EXA Spectrum
Analyzer
Keysight
N9010A
MY55150244
10Hz~44GHz
Apr. 18, 2017
Jan. 14, 2018
Apr. 17, 2018
Radiation
(03CH03-KS)
Bilog Antenna
TeseQ
CBL6112D
35406
25MHz~2GHz
Apr. 22, 2017
Jan. 14, 2018
Apr. 21, 2018
Radiation
(03CH03-KS)
Horn Antenna
Schwarzbeck
BBHA9120D
9120D-1356
1GHz~18GHz
Apr. 22, 2017
Jan. 14, 2018
Apr. 21, 2018
Radiation
(03CH03-KS)
Amplifier
com-power
PA-103A
161069
1MHz~1000MHz /
Apr. 18, 2017
32 dB
Jan. 14, 2018
Apr. 17, 2018
Radiation
(03CH03-KS)
Amplifier
Agilent
8449B
3008A02370
1GHz~26.5GHz
Oct. 12, 2017
Jan. 14, 2018
Oct. 11, 2018
Radiation
(03CH03-KS)
AC Power
Source
Chroma
61601
F104090004
N/A
NCR
Jan. 14, 2018
NCR
Radiation
(03CH03-KS)
Turn Table
ChamPro
EM 1000-T
060762-T
0~360 degree
NCR
Jan. 14, 2018
NCR
Radiation
(03CH03-KS)
Antenna Mast
ChamPro
EM 1000-A
060762-A
1 m~4 m
NCR
Jan. 14, 2018
NCR
Radiation
(03CH03-KS)
Radio
communication
analyzer
Thermal
Chamber
NCR: No Calibration Required
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
Page Number
: 30 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
FCC RF Test Report
Report No. : FW7D2507A
Uncertainty of Evaluation
Uncertainty of Radiated Emission Measurement (30 MHz ~ 1000 MHz)
Measuring Uncertainty for a Level of
Confidence of 95% (U = 2Uc(y))
2.8dB
Uncertainty of Radiated Emission Measurement (1GHz ~ 40GHz)
Measuring Uncertainty for a Level of
Confidence of 95% (U = 2Uc(y))
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : IHDT56XD1
3.3dB
Page Number
: 31 of 31
Report Issued Date
: Jan. 30, 2018
Report Version
: Rev. 01
Report Template No.: BU5-FWCDMA Version 1.0
Download: T56XD1 Mobile Cellular Phone Test Report FCC RF Motorola Mobility LLC
Mirror Download [FCC.gov]T56XD1 Mobile Cellular Phone Test Report FCC RF Motorola Mobility LLC
Document ID3741190
Application ID9cPoEN7NX2ZGeQUuRNh8jw==
Document DescriptionTest Report PCE Part 90 CDMA BC10
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize196.71kB (2458853 bits)
Date Submitted2018-02-05 00:00:00
Date Available2018-02-23 00:00:00
Creation Date2018-01-30 17:11:11
Producing SoftwareMicrosoft® Word 2010
Document Lastmod2018-01-30 19:27:36
Document TitleFCC RF Test Report
Document CreatorMicrosoft® Word 2010
Document Author: WBU Documentation Depr.

Source Exif Data [exif.tools]:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.5
Linearized                      : No
Author                          : WBU Documentation Depr.
Create Date                     : 2018:01:30 17:11:11+08:00
Modify Date                     : 2018:01:30 19:27:36+08:00
Has XFA                         : No
Language                        : zh-CN
Tagged PDF                      : Yes
XMP Toolkit                     : 3.1-701
Producer                        : Microsoft® Word 2010
Title                           : FCC RF Test Report
Creator                         : WBU Documentation Depr.
Creator Tool                    : Microsoft® Word 2010
Document ID                     : uuid:BAC6AB51-07FA-4A88-927A-B754B6CB97FD
Instance ID                     : uuid:BAC6AB51-07FA-4A88-927A-B754B6CB97FD
Part                            : 1
Conformance                     : A
Page Count                      : 31
