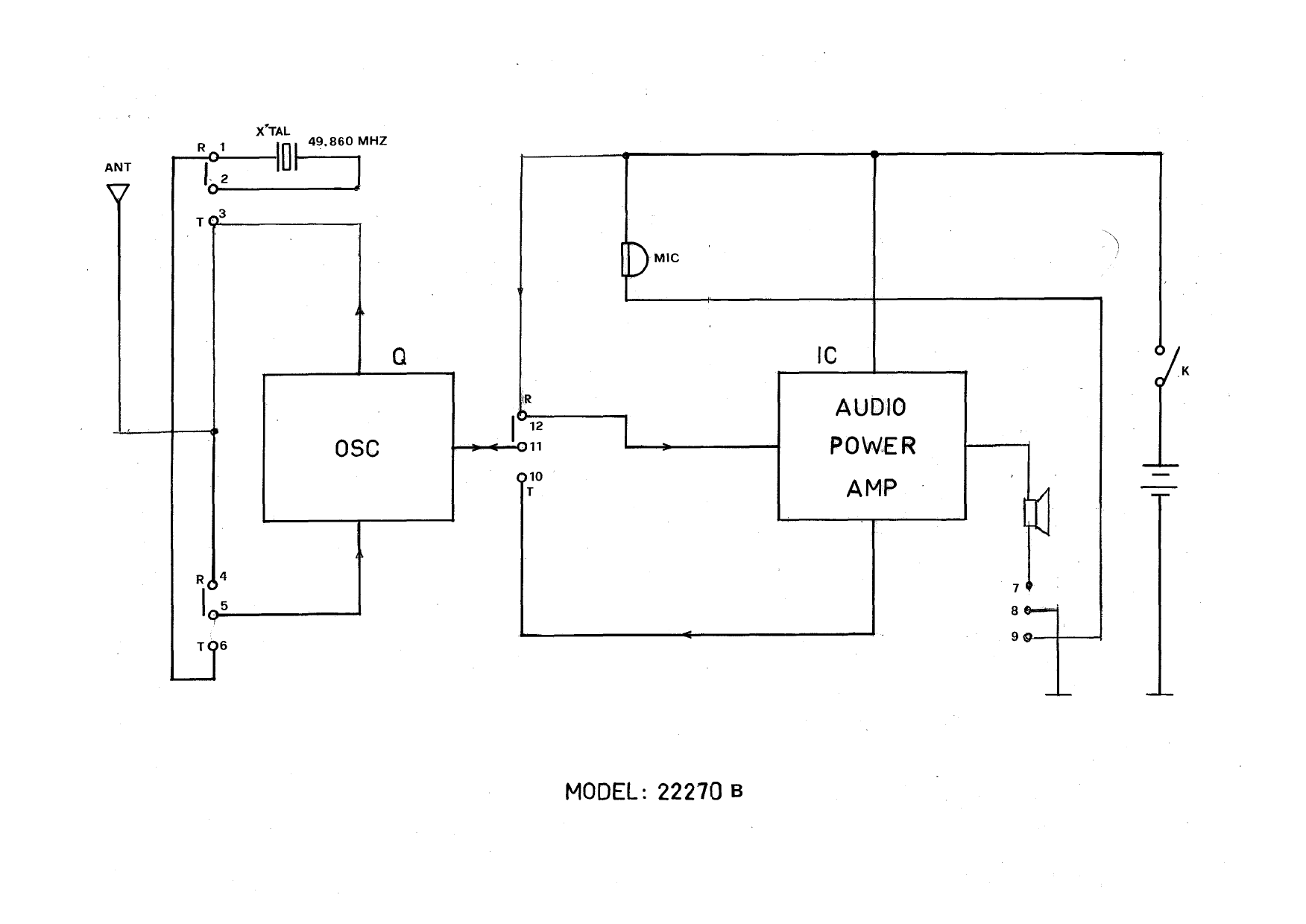

22270B Walkie Talkies Block Diagram - FCC ID II622270B

FCC ID II622270B

Block Daigram

Walkie Talkies

by Supersonics Electronics Company

Document preview loads when visible.

Document Details

FCC IDII622270B
Document ID1268904
Document TypeBlock Diagram
DescriptionBlock Daigram
Document TitlePage 6.max
ApplicantSupersonics Electronics Company
Equipment ClassWalkie Talkies
Product Code22270B
Application ID4pLMW4pmvU3U5GlGzuKzFA==
Application PurposeOriginal Equipment
Application Date2010-04-19
Frequency Range49.86 MHz
FRN0013938329
Test FirmHong Kong Standards and Testing Center
Certified ByKC Lee Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2010-04-19
Available2010-04-19
Created2010-04-17
Modified2010-04-19
Pages1
File TypeAdobe Acrobat PDF
File Size40681
File SHA-256e5de4ea981d269327e722fcbfadd4d4c67bb96498b56b777d5ccec82f373fb48
PDF Metadata Authorcee3
PDF Metadata CreatorpdfFactory http://www.pdffactory.com
PDF Metadata ProducerpdfFactory v1.57 (Windows XP Chinese)
FCC.gov SourcesFCC.gov 1268904
