TX22 Remote control transmitter for ceiling fan... - FCC ID IN2TX22

FCC ID IN2TX22

Transmitter

Remote control transmitter for ceiling fan lamp

by Hunter Fan Company

Document preview loads when visible.

Document Details

FCC IDIN2TX22
Document ID602023
Document TypeSchematics

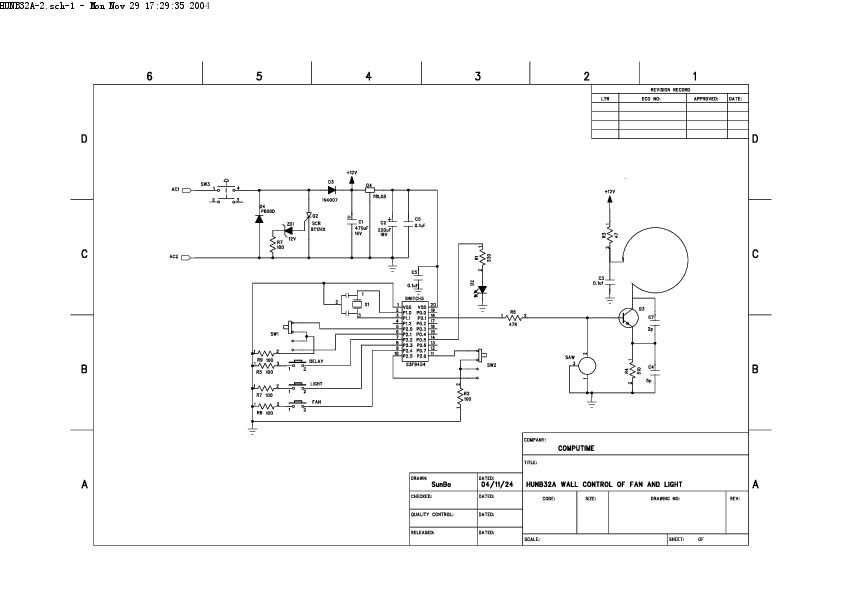

DescriptionTransmitter
Document TitleCAM output
ApplicantHunter Fan Company
Equipment ClassRemote control transmitter for ceiling fan lamp
Product CodeTX22
Application IDo2f7YR6c8Rqy6/ekNK9gQg==
Application PurposeOriginal Equipment
Application Date2005-11-11
Frequency Range350 MHz
FRN0006777569
Test FirmUL LLC
Certified ByRobert Davis Manager of Compliance
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2005-11-11
Available2005-11-11
Created2004-11-29
Modified2004-11-29
Pages1
File TypeAdobe Acrobat PDF
File Size61962
File SHA-25688d037f5c5ca29de19bbdaa96c7ca63f4458c62e41495875b1b13783fc2153de
PDF Metadata AuthorAdministrator
PDF Metadata ProducerAcrobat Distiller 5.0 (Windows) Administrator
FCC.gov SourcesFCC.gov 602023
