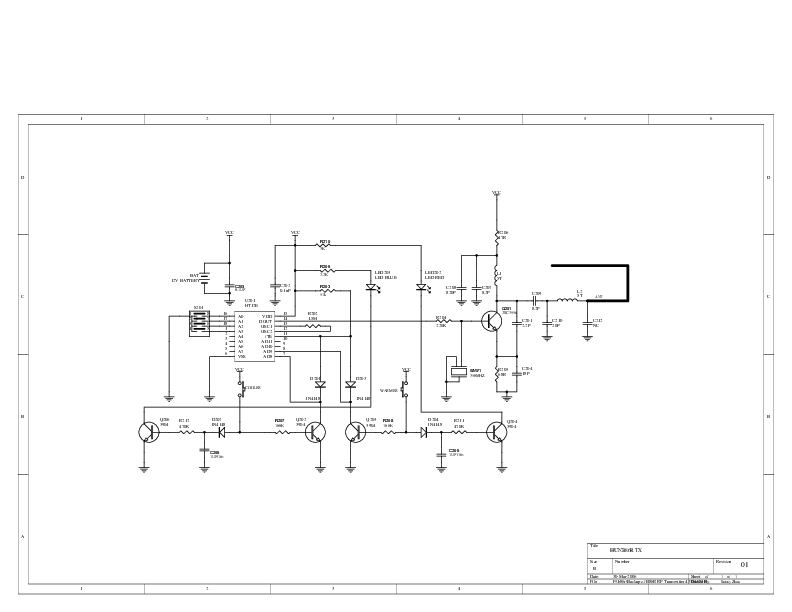

TX70 Remote Control Transmitter Schematics - FCC ID IN2TX70

FCC ID IN2TX70

schematics

Remote Control Transmitter

by Hunter Fan Company

Document preview loads when visible.

Document Details

FCC IDIN2TX70
Document ID672309
Document TypeSchematics
Descriptionschematics
Document TitleProtel Schematic
ApplicantHunter Fan Company
Equipment ClassRemote Control Transmitter
Product CodeTX70
Application ID6egUG9cCjkcZVzi5iXjE0g==
Application PurposeOriginal Equipment
Application Date2006-06-22
Frequency Range350 MHz
FRN0006777569
Test FirmUL LLC
Certified ByRobert Davis Test and Safety Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2006-06-22
Available2006-06-22
Created2006-03-30
Modified2006-06-18
Pages1
File TypeAdobe Acrobat PDF
File Size25852
File SHA-25659a3e3d6119928c0cceadaceb3eb5128e7ff4cb8ad0e695e24bfdbf8e41b588d
PDF Metadata Authorbhc-sunnyzhou
PDF Metadata ProducerAcrobat PDFWriter 5.0 for Windows NT bhc-sunnyzhou
FCC.gov SourcesFCC.gov 672309
